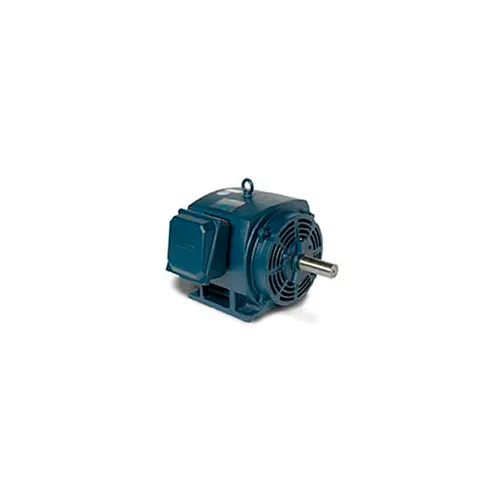

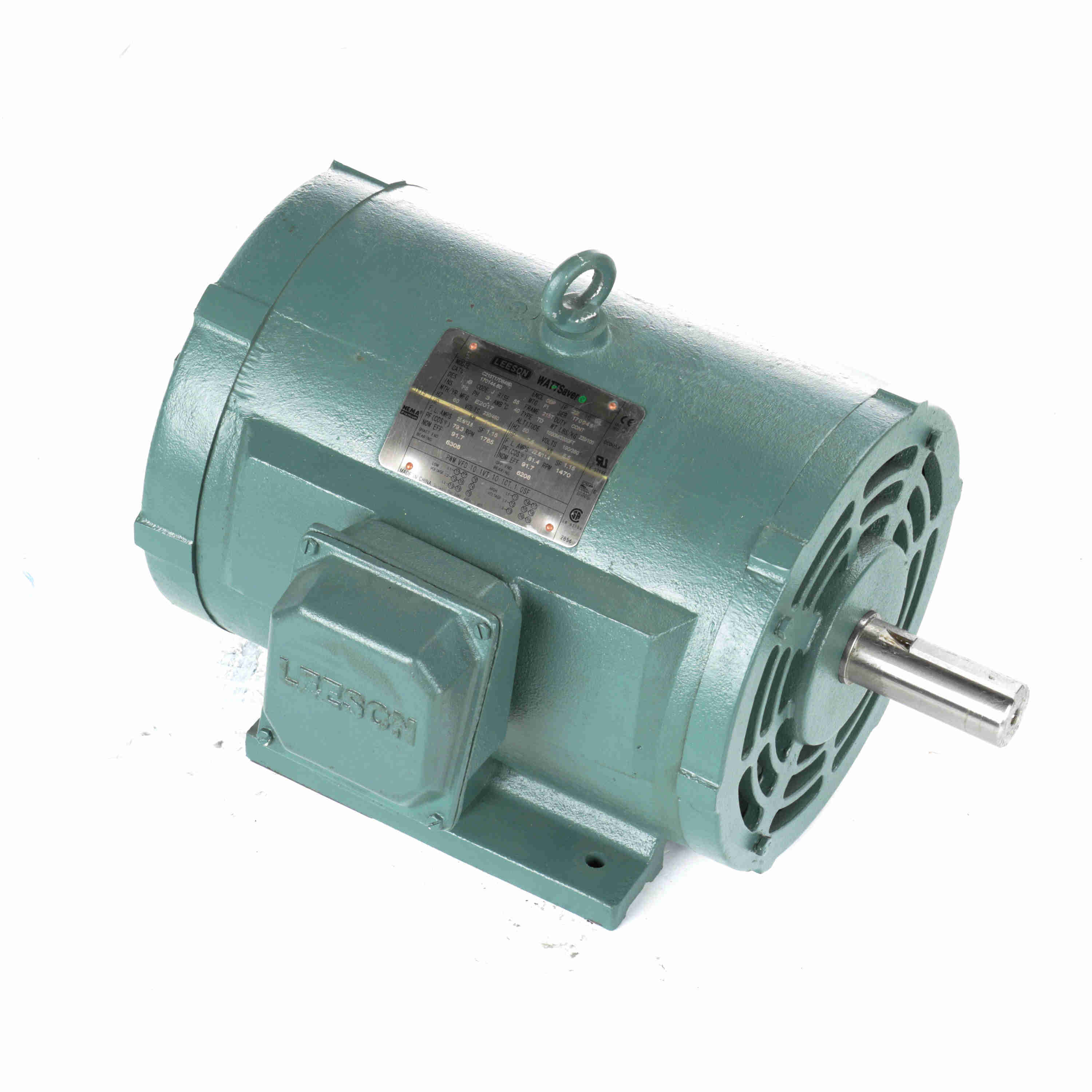

Leeson Electric, 170144.60, 10HP, 1765RPM, 3PH, 208V;230V;460V, 215T Frame, Standard Flange, Foot Mount, Open, General Purpose Motor

Leeson Electric, 170144.60, 10HP, 1765RPM, 3PH, 208V;230V;460V, 215T Frame, Standard Flange, Foot Mount, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating28.5 to 25.6/12.8 A
Application TypeCompressor Motors, Fan .
Bearing TypeBall
Country of Origin (subj.China
Description:OBSOLETE REPLACED BY 21.
Dimensions17.87 in L x 12.4 in H
Enclosure TypeDP
Frame215T
Frequency Rating60 Hz
Horsepower10 hp
Insulation ClassClass F
ItemMOTOR
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturers Warranty .1 yr.
MaterialCast Iron
MFG Part #:170144.60
Mounting TypeC-Face/Rigid Base
Number of Speeds1
Phase3 ph
RotationReversible
Service Factor1.15
Shaft Size1.38 in Dia x 3.38 in L
Speed1765 rpm
StandardsUL Recognized (E57948),.
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720028254

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial170144-60772.581In Stock10Leeson772.58 @ 1
thumbzoomGlobal IndustrialWBB222198925.01In Stock17Leeson925.0 @ 1
AmazonTPB00C73GNY01031.531In Stock4Leeson1031.53 @ 1
kscdirect.comLEE 170144.601089.71In StockLEESON ELECTRIC CORPORATION1089.7 @ 1
thumbzoomZoroG46030001306.791In Stock9Leeson1306.79 @ 1
thumbzoomRaptor SuppliesAJ2TEZ1507.40571151In StockLEESON1507.4057115 @ 1
