Leeson Electric 170224.60

B0773T8XB8

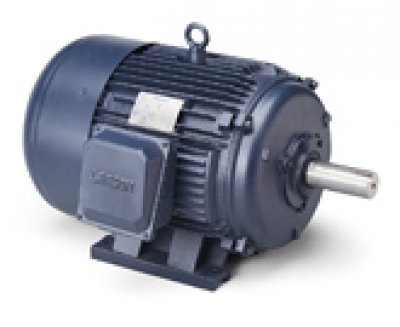

Leeson Electric, 170224.60, 25HP, 3550RPM, 3PH, 575V, 284TS Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, 170224.60, 25HP, 3550RPM, 3PH, 575V, 284TS Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating22.6 A
Amps22.6
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC284T34FB6
CompositionCast Iron
ConstructionCast Iron
Description:..25HP..3550RPM.284TS.T.
Dimensions24.88 in L x 16.56 in H
Drive End Bearing Size6311
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency92.4%, 92.4
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialCast Iron
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight383.00
Family SeriesLeeson Motors, Special .
FL Amps22.6
FL Efficiency92.4
Frame284TS
Frame MaterialCast Iron
Frame Remarks575 VOLT
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower25 hp
HP25
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1
Item ConditionFACTORY NEW
Item Number170224.60
KW18.7
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number170224.60
MaterialCast Iron
Maximum Ambient Tempera.40? C
MFG Part #:170224.60
Model NumberC284T34FB6
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame284TS
Net Weight383 lbs
Nominal Voltage575 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6309
Opp. Drive End Bearing .Ball
Overall Length24.88", 24.88 "
Part Number170224.60
Phase3, 3 ph
Product SeriesSpecial Voltage
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3550, 3600, 3400 - 3600.
Service Factor1.15, 1.25
Shaft DiameterUL;CSA, 1.625, 1.625"
Shaft Length3.25, 3.25"
Shaft Size1.63 in Dia x 3.25 in L
Ship Weight393 lbs.
Speed3550 rpm
Speed (RPM)3550
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720028384
Voltage575V, 575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply25266972291.671In StockLeeson2291.67 @ 1
AmazonTPB0773T8XB82984.361In Stock3Leeson Electric2984.36 @ 1
thumbzoommotorsandcontrol.comLE-170224.603143.381In StockLeeson Electric383.03143.38 @ 1
thumbzoomDealers Electric170224.603161.721In StockLeeson393.03161.72 @ 1
thumbzoomZoroG24834493273.011Leeson3273.0 @ 1
thumbzoomGalco170224.60-LEES3288.461In StockLeeson383.03288.46 @ 1
thumbzoomemotorpro.com170224.603304.691In StockLeeson393.03304.69 @ 1
thumbzoomWalker Industrial170224-603562.51In Stock10Leeson3562.5 @ 1
kscdirect.comLEE 170224.603859.941In StockLEESON ELECTRIC CORPORATION3859.94 @ 1
