Leeson Electric 171691.60

B0773TD9G6

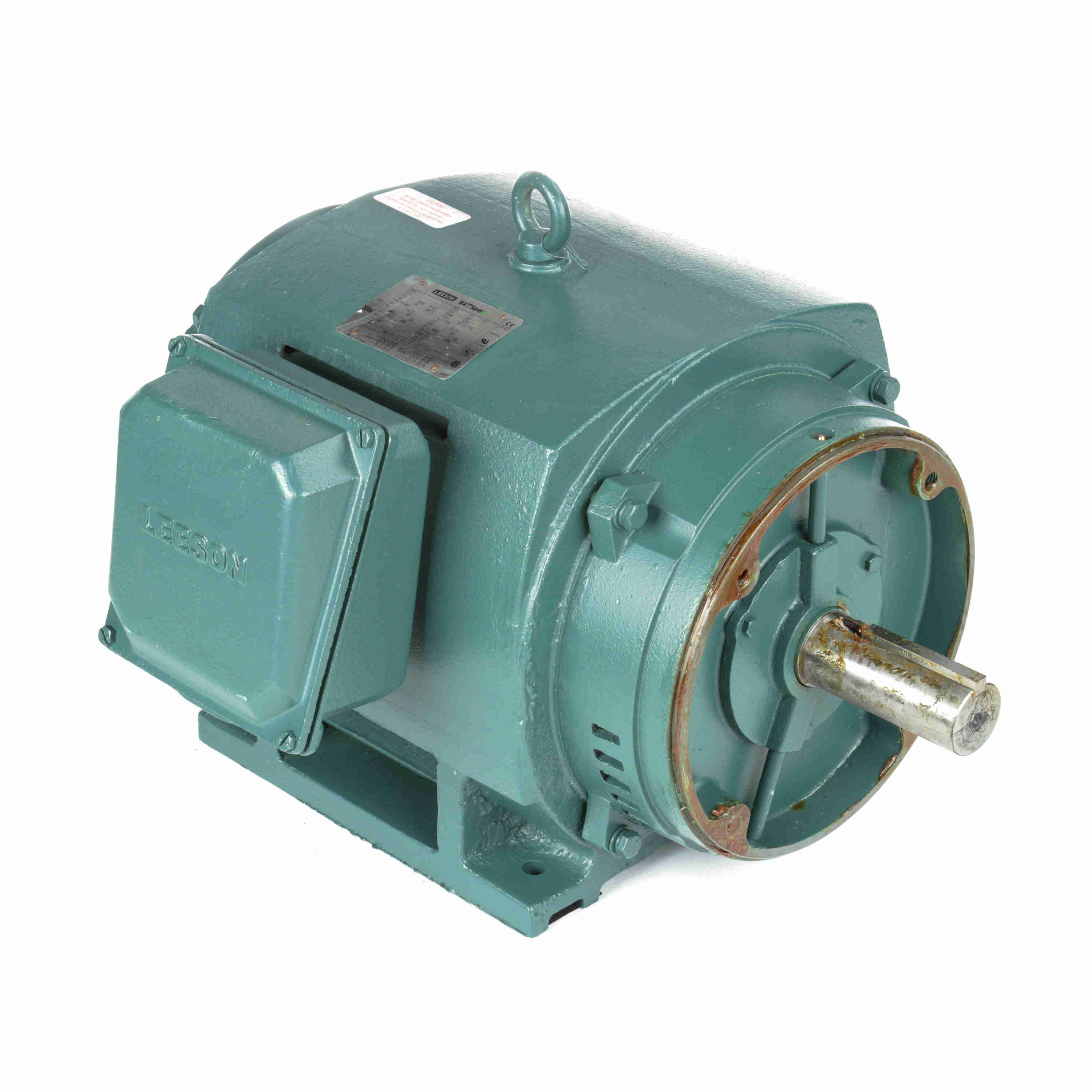

Leeson Electric, 171691.60, 100HP, 1780RPM, 3PH, 208V;230V;460V, 404TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motor

Leeson Electric, 171691.60, 100HP, 1780RPM, 3PH, 208V;230V;460V, 404TC Frame, C-Face Flange, Foot Mount, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating250 to 225/113 A
Application TypeCompressor Motors, Fan .
Bearing TypeBall
Description:100HP..1800RPM.404TC.OD.
Dimensions32.68 in L x 23.03 in H
Enclosure TypeDP
Frame404TC
Frequency Rating60 Hz
Horsepower100 hp
Insulation ClassClass F
ManufacturerLEESON ELECTRIC CORPORA.
MaterialCast Iron
MFG Part #:171691.60
Mounting TypeC-Face/Rigid Base
Number of Speeds1
Phase3 ph
RotationReversible
Service Factor1.15
Shaft Size2.88 in Dia x 7.25 in L
Speed1783 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720245491

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1716913713.01In Stockleeson1141.03713.0 @ 1
thumbzoomMRO Supply25267794324.221In Stock9Leeson1141.04324.22 @ 1
AmazonTPB003U1R9UU7963.821In Stock4Leeson7963.82 @ 1
thumbzoomWalker Industrial171691-607983.171In Stock17Leeson7983.17 @ 1
kscdirect.comLEE 171691.608649.71In StockLEESON ELECTRIC CORPORATION8649.7 @ 1
thumbzoomRaptor SuppliesAJ2TKL9816.42255751In StockLEESON9816.4225575 @ 1
