Leeson 191490.00

B00EP3C3N0

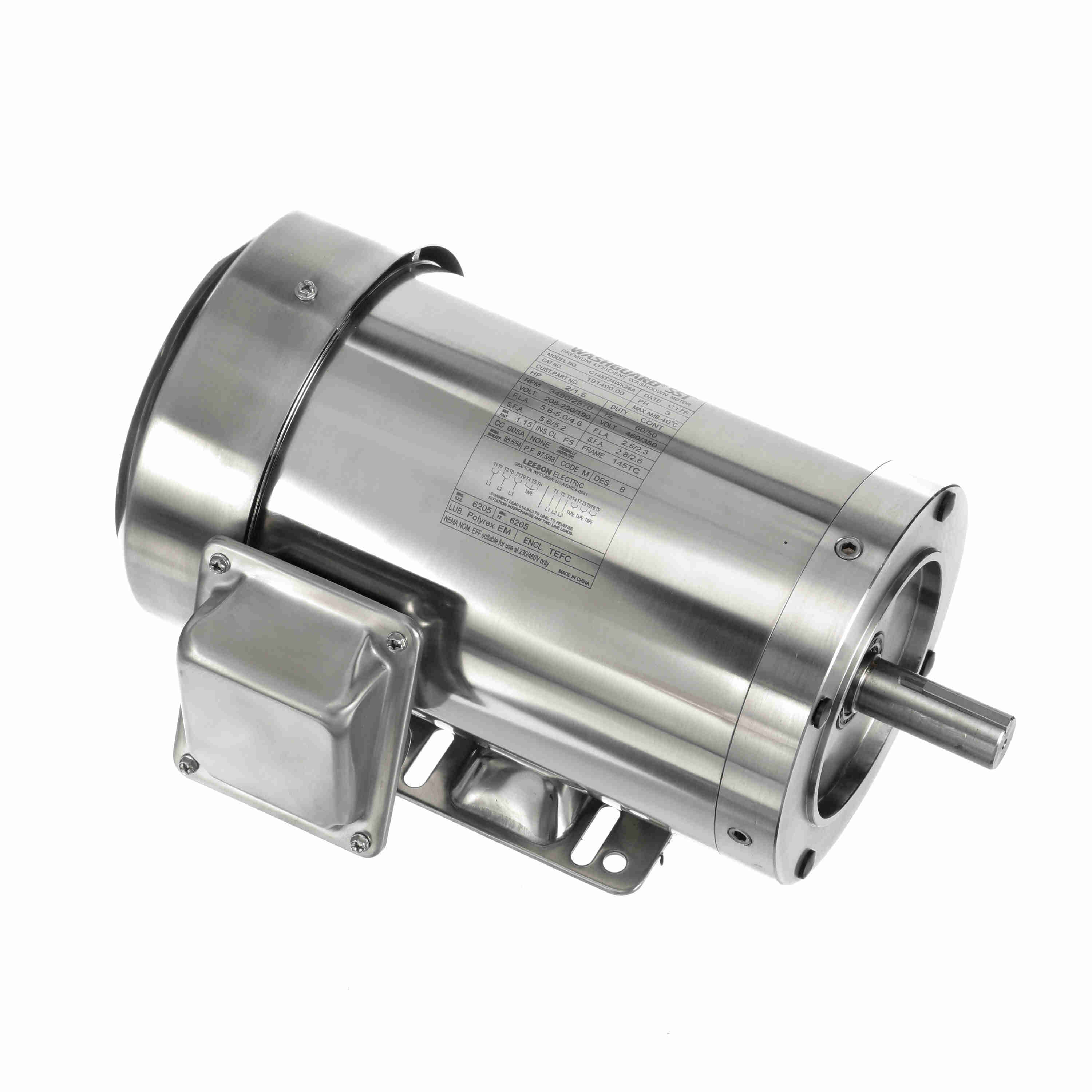

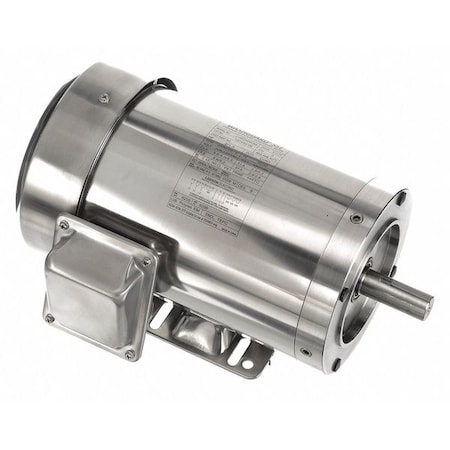

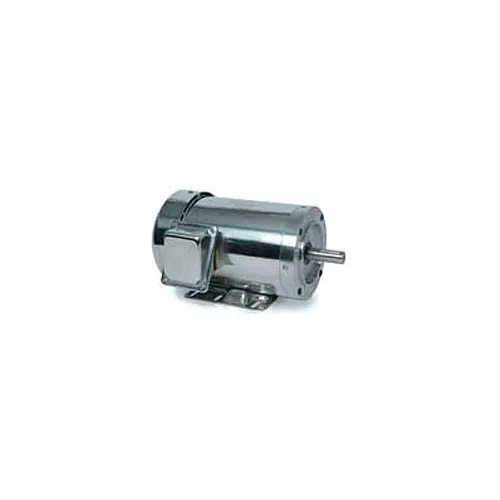

Leeson 191490.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 191490.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5.3 to 5/2.5 A
Amps5.3-5.0/2.5
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
CategoryElectric Motor
Class/GroupC145T34WK26
CompositionSteel
ConstructionStainless Steel
Current Stock22
Description:..2HP..3450RPM.145TC.TE.
Dimensions13.62 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency85.5, 85.5%
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialStainless Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight50.00
Family SeriesLeeson Motors, SST Seri.
FL Amps5.3-5/2.5&4.6/2.3
FL Efficiency85.5
Frame145TC
Frame MaterialStainless Steel
Frame RemarksWashdown, FOOTED, STAIN.
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number191490.00
KW1.5
Lead TimeExpected to ship in 1-2.
Length Less Shaft11 5/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number191490.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:191490.00
Model NumberC145T34WK26
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialStainless Steel
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shell Length7.99"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, C-Fa.
Mpn191490.00
NEMA Frame145TC
Net Weight50 lbs
Nominal Efficiency85.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length13.62 ", 13 5/8 in, 13..
Part Number191490.00
Phase3, Three, 3 ph
Product SeriesSST
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM3600, 3400 - 3600, 3490.
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2 1/4 in, 2.25", 2.25
Shaft Size0.88 in Dia x 2.25 in L
Ship Weight47 lbs.
SKUZO-G4447567
Special FeaturesInverter Ready
Speed3490 rpm
Speed (RPM)3490
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720245552
UPC:691720245552
Voltage208-230/460V AC, 208-23.
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB00EP3C3N0847.151In Stock5Leeson847.15 @ 1
thumbzoomMRO Supply25275361060.551In StockLeeson1060.55 @ 1
thumbzoomZoroG44475671110.99135Leeson46.61110.99 @ 1
thumbzoomemotorpro.com191490.001142.091In StockLeeson47.01142.09 @ 1
thumbzoomDealers Electric191490.001220.561In StockLeeson47.01220.56 @ 1
thumbzoommotorsandcontrol.comLE-191490.001305.411In StockLeeson Electric50.01305.41 @ 1
us.rs-online.com733968481315.661In StockLeeson1315.66 @ 1
thumbzoomGalco191490.00-LEES1315.661In StockLeeson50.01315.66 @ 1
thumbzoomsimsupply.comZO-G44475671325.43122Leeson1325.43 @ 1
thumbzoomAutomation Direct191490.001366.013Leeson47.01366.0 @ 1
kscdirect.comLEE 191490.001393.261In StockLEESON ELECTRIC CORPORATION1393.26 @ 1
thumbzoomWalker Industrial191490-001590.451In Stock10Leeson1590.45 @ 1
thumbzoomRaptor SuppliesAJ2TNJ1959.2732251In StockLEESON1959.273225 @ 1
thumbzoomGlobal IndustrialWBB5876251999.01In StockLeeson1999.0 @ 1
thumbzoompumpproducts.com191490.002299.971In StockLeeson2299.97 @ 1
