Leeson 191491.00

B00EP3C59W

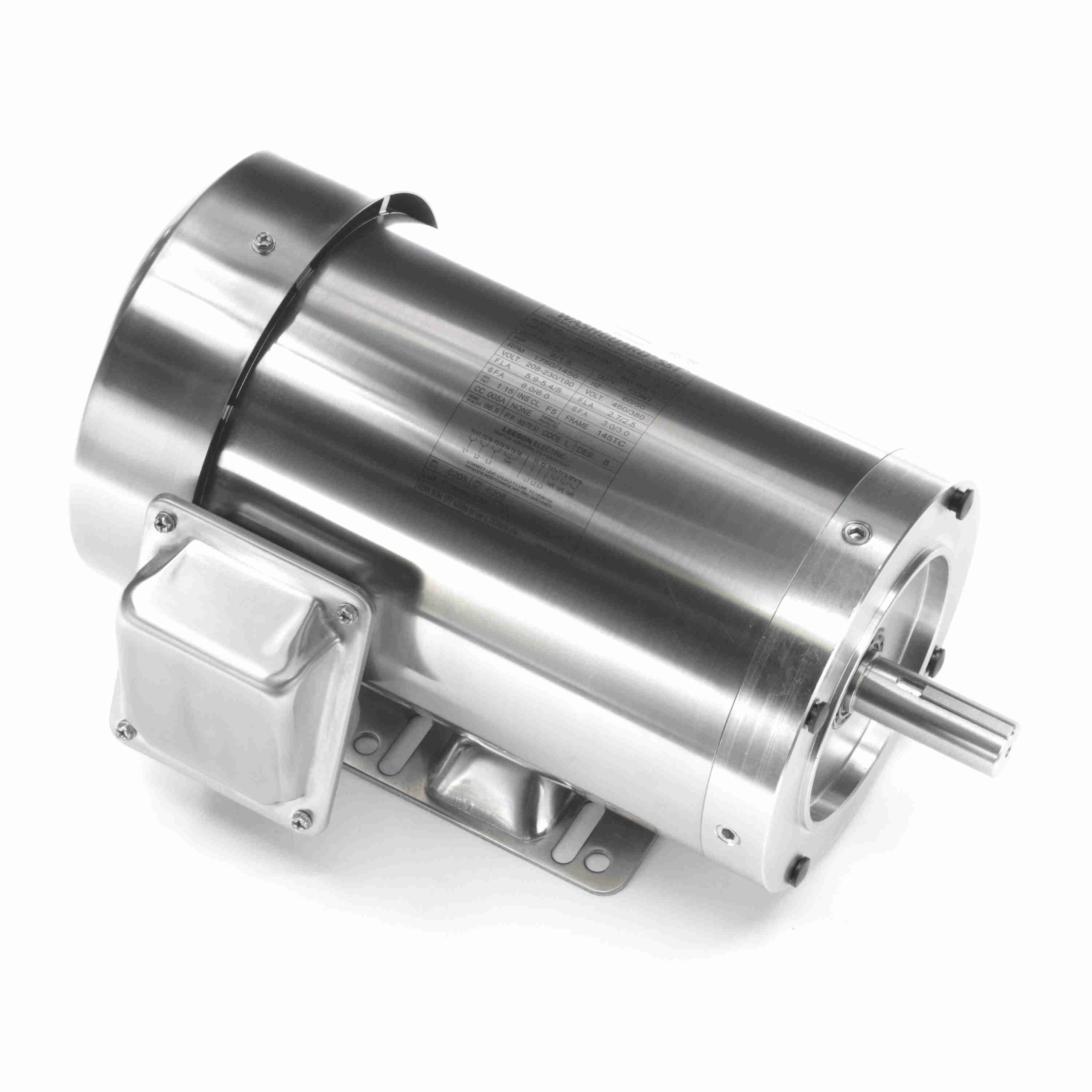

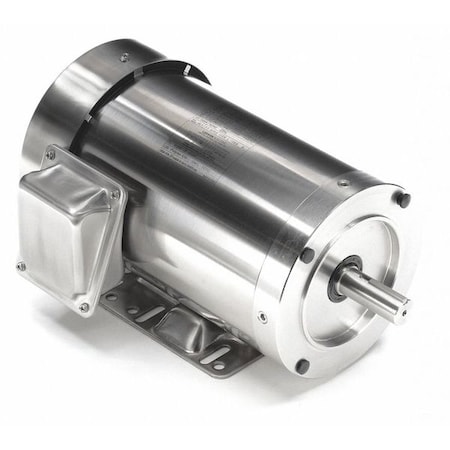

Leeson 191491.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 191491.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid Mounting, 2HP, 1800 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5.8 to 5.4/2.7 A
Amps5.8-5.4/2.7
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
CategoryElectric Motor
CC NumberCC005A
Class/GroupC145T17WK37F
CompositionSteel
ConstructionStainless Steel
Current Stock15
Description:..2HP..1740RPM.145TC.TE.
Dimensions13.62 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency86.5%, 86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialStainless Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight53.00
Family SeriesLeeson Motors, SST Seri.
FL Amps5.8-5.4/2.7&5/2.5
FL Efficiency86.5
Frame145TC
Frame MaterialStainless Steel
Frame RemarksWASHDOWN, FOOTED, STAIN.
Frequency60
Frequency Rating60 Hz
Full Load Amps5.8-5.4/2.7
Gross Weight0 lbs
Hertz50, 60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number191491.00
KW1.5
Length Less Shaft11 5/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number191491.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:191491.00
Model NumberC145T17WK37F
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialStainless Steel
Motor Mounting TypeRigid Base
Motor Shaft RotationCCW, CW
Motor Shell Length7.99"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, C-Fa.
Mpn191491.00
Nameplate RPM1,750
NEMA Frame145TC
Net Weight53 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length13.62 ", 13 5/8 in, 13..
Part Number191491.00
Phase3, Three, 3 ph
Product SeriesSST
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1,800 RPM, 1700 - 1800,.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2 1/4 in, 2.25", 2.25
Shaft Size0.88 in Dia x 2.25 in L
Ship Weight57 lbs.
SKUZO-G4447558
Special FeaturesInverter Ready
Speed1750 rpm
Speed (RPM)1750
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720245569
UPC:691720245569
Voltage208-230/460V AC, 208-23.
Volts208/230/460, 208-230/460
