Leeson 191492.00

B00EP3HHLS

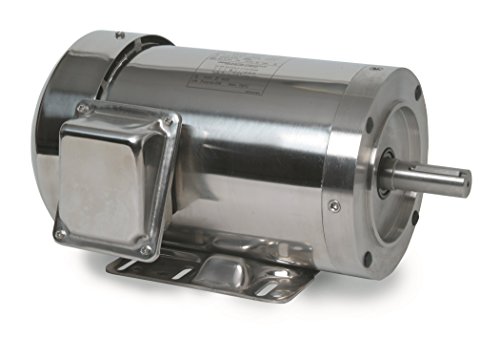

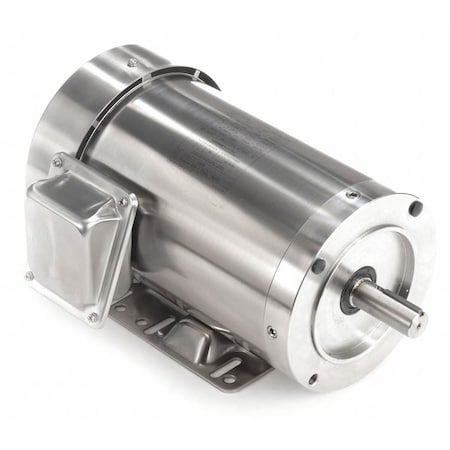

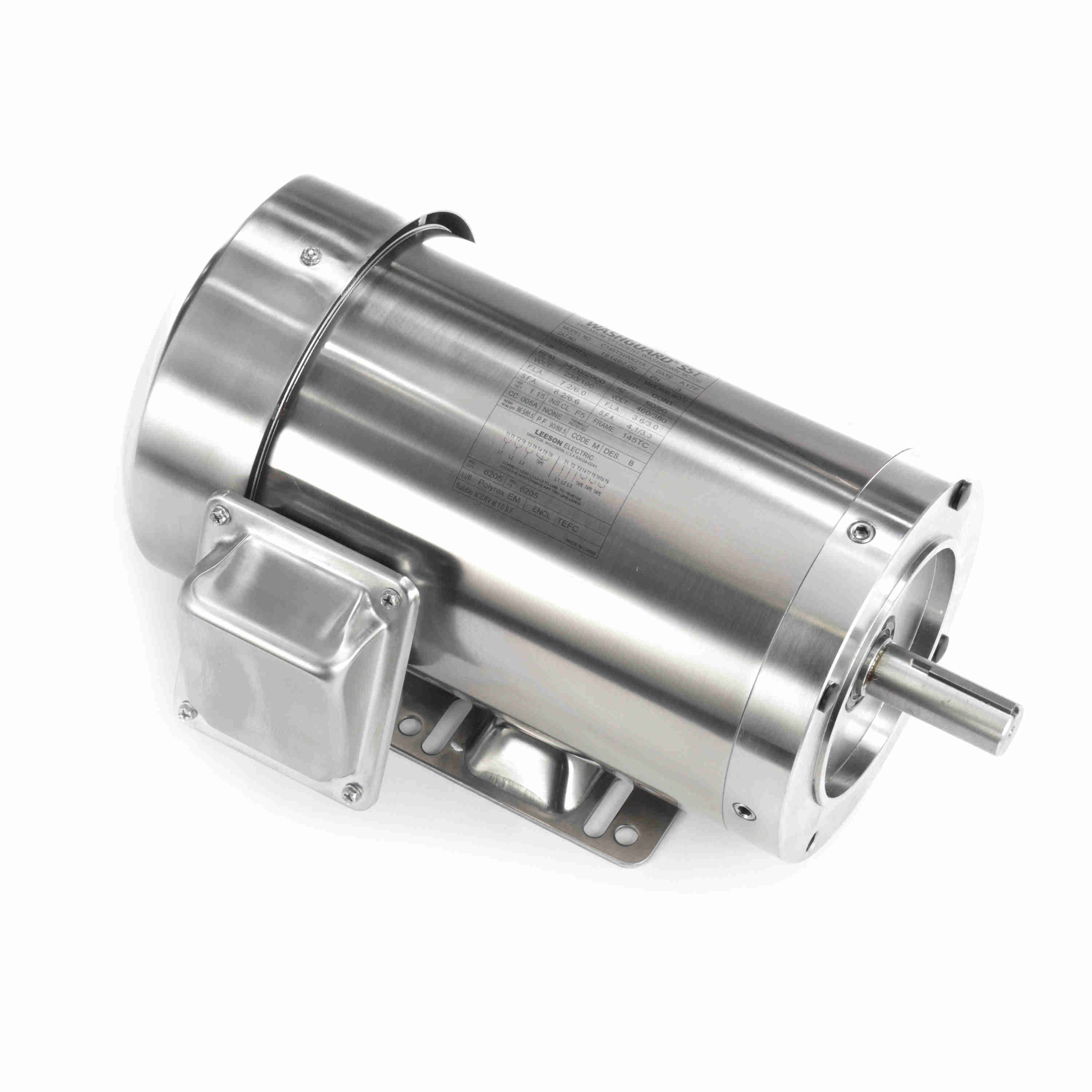

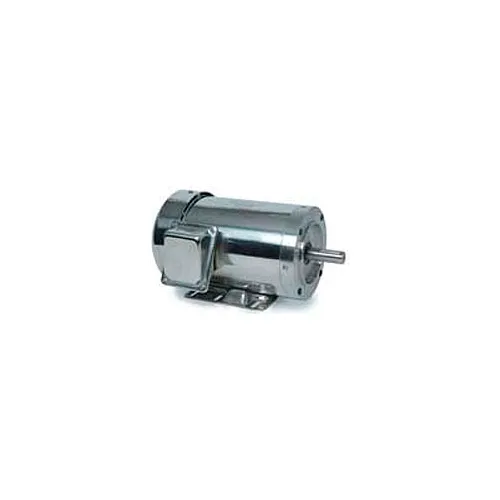

Leeson 191492.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid C Mounting, 3HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequency

Leeson 191492.00 Washguard C Face Motor, 3 Phase, 145TC Frame, Rigid C Mounting, 3HP, 3600 RPM, 208-230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating8 to 7.2/3.6 A
Amps8.0-7.2/3.6
ApprovalsCSA, UL
Bearing TypeDouble Sealed, Ball
BearingsBall
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
CategoryElectric Motor
CC NumberCC005A
Class/GroupC145T34WK21
CompositionSteel
ConstructionStainless Steel
Current Stock9
Description:..3HP..3450RPM.145TC.TE.
Dimensions14.12 in L
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency86.5%, 86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialStainless Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight62.00
Family SeriesLeeson Motors, SST Seri.
FL Amps8-7.2/3.6&6/3
FL Efficiency86.5
Frame145TC
Frame MaterialStainless Steel
Frame RemarksWashdown, FOOTED, STAIN.
Frequency60
Frequency Rating60 Hz
Full Load Amps8.0-7.2/3.6
Gross Weight0 lbs
Hertz50, 60
Horsepower3 hp
HP3
Hz60, 60/50
Insulation ClassClass F, F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number191492.00
KW2.2
Lead TimeExpected to ship in 1-2.
Length Less Shaft11 5/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number191492.00
Manufacturers Warranty .1 yr
MaterialStainless Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:191492.00
Model NumberC145T34WK21
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialStainless Steel
Motor Service Factor1.15
Motor Shaft RotationCCW, CW
Motor Shell Length8.39"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, C-Fa.
Mpn191492.00
NEMA Frame145TC
Net Weight62 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length14.12", 14 1/8 in, 14.1.
Part Number191492.00
Phase3, Three, 3 ph
Product SeriesSST
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM3470, 3600, 3400 - 3600.
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.7/8 in
Shaft DiameterUL;CSA, 0.875, 0.875"
Shaft Length2 1/4 in, 2.25", 2.25
Shaft Size0.88 in Dia x 2.25 in L
Ship Weight55 lbs.
SKUZO-G4447549
Special FeaturesInverter Ready
Speed3470 rpm
Speed (RPM)3470
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC691720246863
UPC:691720246863
Voltage208-230/460V AC, 208-23.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com191492.00801.01In StockLEESON801.0 @ 1
AmazonTPB0773R5MMP956.481In Stock3Leeson Electric956.48 @ 1
thumbzoomMRO Supply25275381135.751In StockLeeson1135.75 @ 1
thumbzoomZoroG44475491149.99127Leeson55.31149.99 @ 1
thumbzoomemotorpro.com191492.001223.041In StockLeeson55.01223.04 @ 1
thumbzoomGlobal IndustrialWBB5876271295.01In Stock17Leeson1295.0 @ 1
thumbzoomsimsupply.comZO-G44475491360.9319Leeson1360.93 @ 1
thumbzoomDealers Electric191492.001394.251In StockLeeson64.01394.25 @ 1
thumbzoommotorsandcontrol.comLE-191492.001397.97123Leeson Electric62.01397.97 @ 1
us.rs-online.com733969491408.941In StockLeeson1408.94 @ 1
thumbzoomGalco191492.00-LEES1408.941In StockLeeson62.01408.94 @ 1
kscdirect.comLEE 191492.001492.071In StockLEESON ELECTRIC CORPORATION1492.07 @ 1
thumbzoomWalker Industrial191492-001703.251In Stock17Leeson1703.25 @ 1
cbtcompany.com191492.001891.231In StockLeeson Electric1891.23 @ 1
thumbzoomRaptor SuppliesAJ2TNL2093.63456251In StockLEESON2093.6345625 @ 1
thumbzoompumpproducts.com191492.002468.261In StockLeeson2468.26 @ 1
