Leeson 192028.00

B00EP28N6W

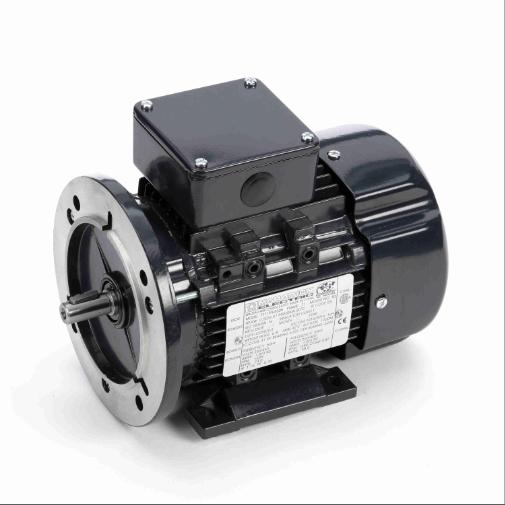

Leeson 192028.00 Rigid Base IEC Metric Motor, 3 Phase, D71C Frame, B3/B14 Mounting, 0.33HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequency

Leeson 192028.00 Rigid Base IEC Metric Motor, 3 Phase, D71C Frame, B3/B14 Mounting, 0.33HP, 1800 RPM, 230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C71T17FZ3C
Amperage Rating1.4/0.70 A
ApprovalsCSA, UL
Bearing Type9.46, Ball
CategoryElectric Motor
Class/GroupC71T17FZ3
CompositionAluminum
Current Rating1.4 ; 0.70 A
Description:1/3HP-.25kW..1800 RPM.D.
Dimensions9.44 in L
Duty CycleContinuous
Efficiency68 %
Efficiency %68 %
EnclosureTEFC, IP55, Totally Enc.
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, IEC Seri.
Frame71C, 71, D71C
Frame RemarksFOOTED
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1/3 hp, 0.33 HP
Horsepower Rating0.33 HP
HP.33, 0.33
Hz60
IEC FrameD71C
Insulation ClassClass F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item Number192028.00
Kilowatts0.25 kW
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number192028.00
MaterialAluminum
MFG Part #:192028.00
Model NumberC71T17FZ3
mountingC-face w/ rigid base
Mounting TypeB3 Flange/Rigid Base, F.
Net Weight13 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Overall Length9.46 "
Phase3, 3 Phase, 3 ph
Product SeriesIEC
RotationReversible
RPM1700 RPM, 1700 - 1800, .
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size0.56 in Dia x 1.18 in L
Special FeaturesService Factor - 1.15, .
Speed1700 RPM
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage230 VAC ; 460 VAC
TypeSquirrel Cage Inverter .
UPC Code691720035979
UPC:691720035979
Voltage230
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB01L0AMD6M209.311In Stock5Leeson Electric Corp209.31 @ 1
thumbzoomelectricmotorwholesale.com192028210.01In StockLEESON210.0 @ 1
thumbzoomDealers Electric192028.00266.011In StockLeeson14.0266.01 @ 1
us.rs-online.com72239431426.071In StockLeeson426.07 @ 1
cbtcompany.com192028.00456.261In StockLeeson Electric456.26 @ 1
thumbzoomWalker Industrial192028-00466.771In Stock10Leeson466.77 @ 1
kscdirect.comLEE 192028.00505.741In StockLEESON ELECTRIC CORPORATION505.74 @ 1
thumbzoomRaptor SuppliesAJ2TQP528.1713451In StockLEESON528.171345 @ 1
thumbzoomGalco192028.00-LEES560.121In StockLeeson13.0560.12 @ 1
