Leeson 192208.00

B00EP3CB82

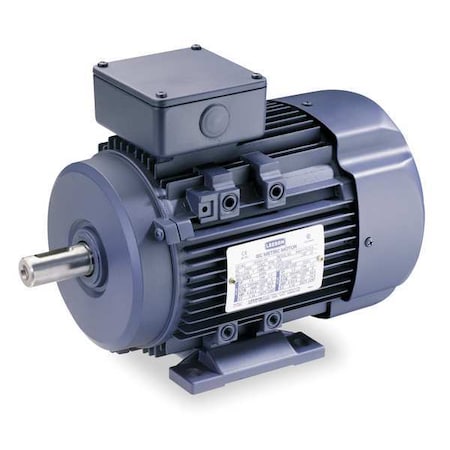

Leeson 192208.00 Rigid Base IEC Metric Motor, 3 Phase, 90S Frame, B3 Mounting, 2HP, 3600 RPM, 230/460V Voltage, 60/50Hz Fequency

Leeson 192208.00 Rigid Base IEC Metric Motor, 3 Phase, 90S Frame, B3 Mounting, 2HP, 3600 RPM, 230/460V Voltage, 60/50Hz Fequencyzoom

Attributes

Key Value
Amperage Rating5/2.5 A
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
CC NumberCC005A
CompositionAluminum
Country of Origin (subj.China
Description:2HP-1.5KW..3470RPM.90S..
Dimensions12.83 in L
DutyContinuous
Duty CycleContinuous
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors, IEC Seri.
Frame90S
Frame MaterialAluminum
Frequency Rating60 Hz
Full Load Amps5.0/2.5
Full Load Amps @ 50Hz5.0/2.5
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower2 hp
HP2
HP @ 50Hz2
Hz60/50
IEC FrameD90S
IncludesTerminal Board, Multi-M.
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemMetric Motor
Item ConditionFACTORY NEW
Item Number192208.00
Kilowatts1.5 kW
kW1.49
Length Less Shaft276 mm
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number192208.00
MaterialAluminum
Max. Ambient Temp.40 Degrees C
MFG Part #:192208.00
Model NumberC90T34FZ13
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialAluminum
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingRigid Base
Mounting TypeB3 Flange/Rigid Base, F.
Nameplate RPM3,520
NEMA DesignB
Net Weight33 lbs
No. of Speeds1
Nominal Efficiency85.5 %
Nominal Voltage240 VAC, 480 VAC
Number of Poles2
Number of Speeds1
Overall Length326 mm, 12.61 "
Phase3, 3 ph, Three
Product SeriesIEC
RotationReversible
RPM3600, 3,600 RPM
RPM @ 50Hz3,520
RPM Range3,001-3,600
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.24 mm
Shaft Length50 mm
Shaft Size1 in Dia x 1.96 in L
Special FeaturesIEC Metric Motors
Speed3520 rpm
StandardsCE Certified, CSA Certi.
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720246948
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage (AC)230 VAC, 460 VAC
Voltage @ 50Hz230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight36 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 192208.00144.151In StockLEESON ELECTRIC CORPORATION144.15 @ 1
us.rs-online.com72637917151.891In StockLeeson151.89 @ 1
cbtcompany.com192208.00175.641In StockLeeson Electric175.64 @ 1
thumbzoomGalco192208.00-LEES197.461In StockLeeson33.0197.46 @ 1
thumbzoomelectricmotorwholesale.com192208304.01In StockLEESON304.0 @ 1
thumbzoomZoroG4173644311.31In StockLeeson37.99311.3 @ 1
AmazonTPB007PB3N10336.981In Stock2LEESON336.98 @ 1
thumbzoomDealers Electric192208.00396.01In StockLeeson36.0396.0 @ 1
thumbzoomRaptor SuppliesAJ2TTK1069.1922151In StockLEESON1069.192215 @ 1
