Leeson Electric 810007.00

B0773TFSHT

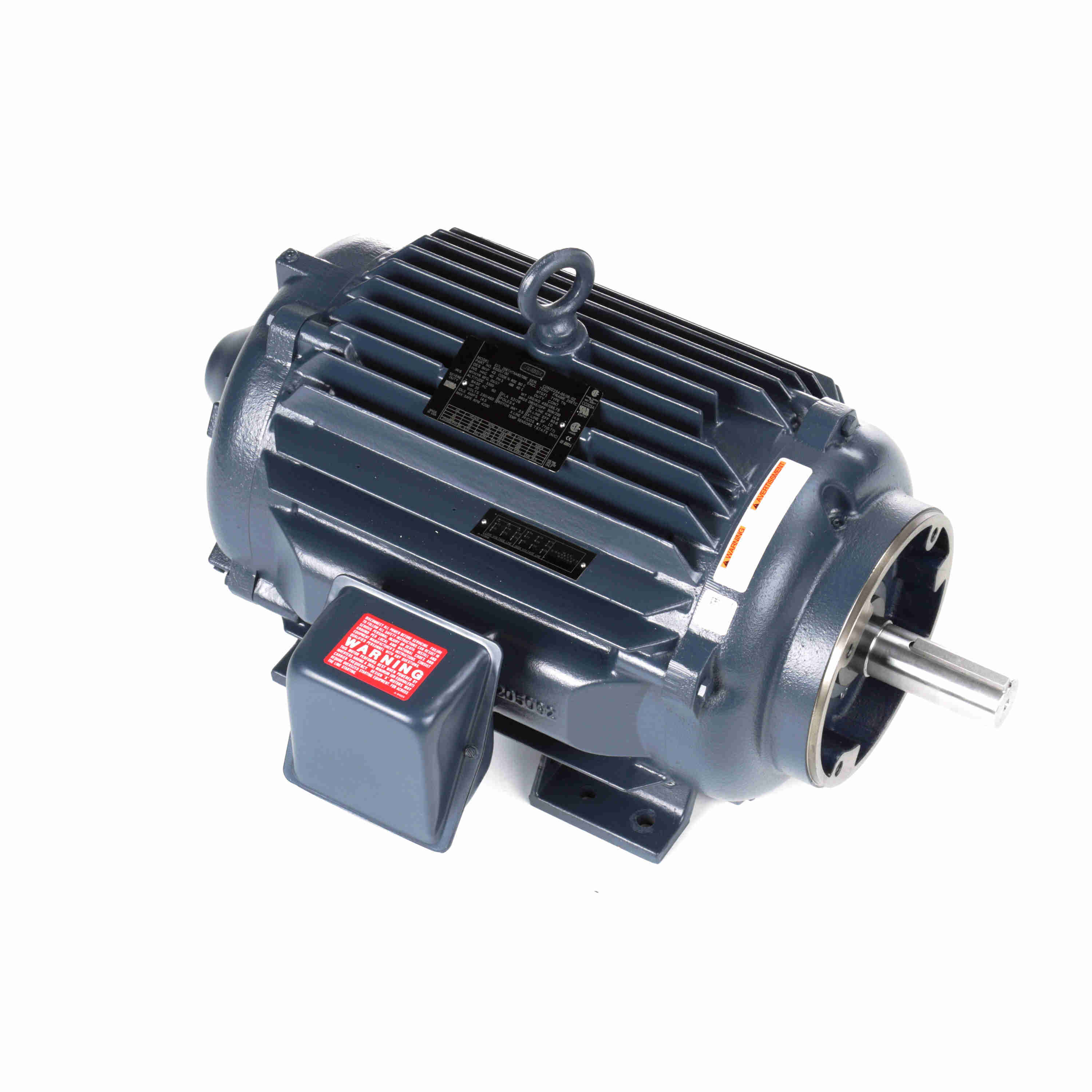

Leeson Electric, 810007.00, 20HP, 1770RPM, 3PH, 230V;460V, 256TC Frame, C-Face Flange, Foot Mount, TENV, Inverter Duty Motor

Leeson Electric, 810007.00, 20HP, 1770RPM, 3PH, 230V;460V, 256TC Frame, C-Face Flange, Foot Mount, TENV, Inverter Duty Motorzoom

Attributes

Key Value
Amperage Rating52/26 A
Application TypeFan & Blower Motors, OE.
ApprovalsCSA, UL
Bearing TypeBall, 27.13
Class/Group256THTNA8070
CompositionCast Iron
Description:OBSOLETE REPLACED BY 25.
Dimensions27.13 in L
EnclosureTotally Enclosed Blower.
Enclosure TypeTENV
Family SeriesLeeson Motors, Inverter.
Frame256TC
Frequency Rating60 Hz
Full Load Current52 A
Gross Weight0 lbs
Horsepower20 hp
Insulation ClassClass H
Item Number810007.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number810007.00
MaterialCast Iron
MFG Part #:810007.00
Model Number256THTNA8070
Mounting TypeFoot Mount, Rigid
NEMA Frame256TC
Net Weight435 lbs
Nominal Voltage240 VAC, 480 VAC
Overall Length27.13 "
Phase3
Product SeriesInverter Duty
RotationReversible
RPM1,800 RPM
Service Factor1
Shaft DiameterUL;CSA
Shaft Size1-9/14 in Dia
Special Features2000:1 Speed Range, Vec.
Speed1780 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Torque Rating325 ft-lb
TypeInverter Rated
UPC:691720211151

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com8100073030.01In StockLEESON3030.0 @ 1
thumbzoomGalco810007.00-LEES4343.041In StockLeeson435.04343.04 @ 1
AmazonTPB0773TFSHT5113.741In Stock10Leeson Electric5113.74 @ 1
thumbzoomWalker Industrial810007-005495.551In Stock17Leeson5495.55 @ 1
cbtcompany.com810007.005998.821In StockLeeson Electric5998.82 @ 1
kscdirect.comLEE 810007.006649.391In StockLEESON ELECTRIC CORPORATION6649.39 @ 1
thumbzoomRaptor SuppliesAJ2UHQ6663.4731541In StockLEESON6663.473154 @ 1
