Leeson Electric 811561.00

B0773VTJSF

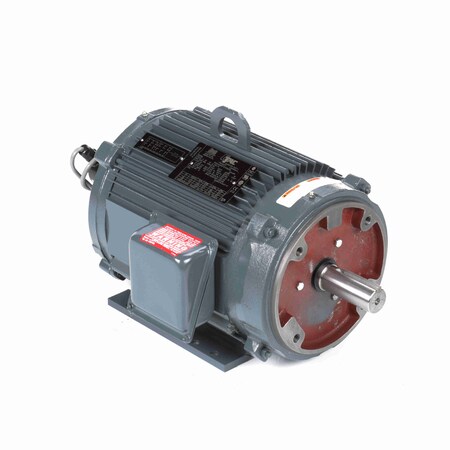

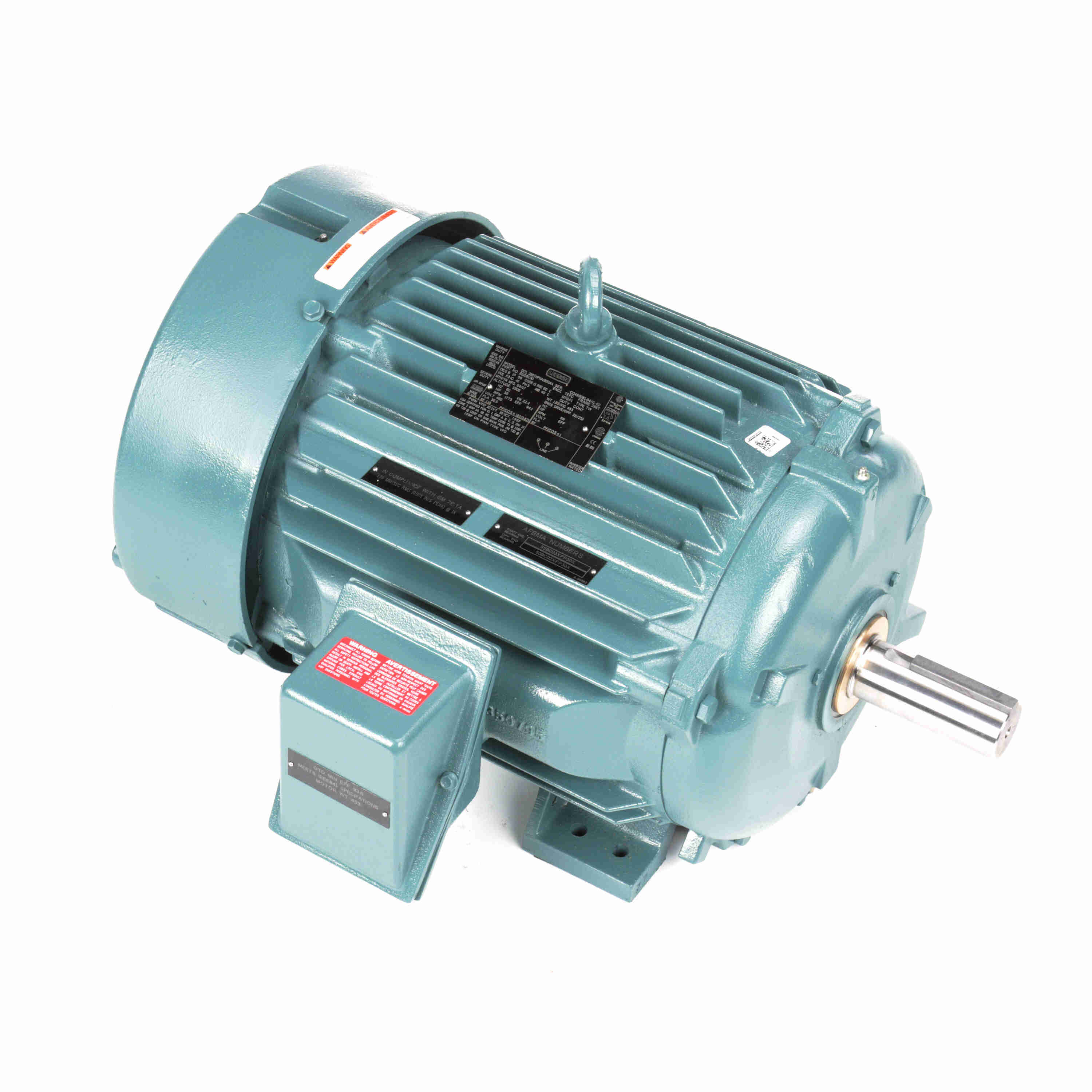

Leeson Electric, 811561.00, 30HP, 1773RPM, 3PH, 460V, 286T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor

Leeson Electric, 811561.00, 30HP, 1773RPM, 3PH, 460V, 286T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motorzoom

Attributes

Key Value
Amperage Rating36.5 A
Bearing TypeBall
CompositionCast Iron
Country of Origin (subj.United States
Description:OBSOLETE REPLACED BY 28.
Dimensions27.84 in L x 20.68 in W.
Efficiency %94.1 %
EnclosureTotally Enclosed Fan Co.
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
Frame286T
Frequency60 Hz
Frequency Rating60 Hz
Full Load Current36.5 A
Gross Weight0 lbs
Horsepower30 hp
Insulation ClassClass F
Item Number811561.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number811561.00
MaterialCast Iron
MFG Part #:811561.00
Mounting TypeFoot Mount, Rigid Base
NEMA Frame286T
Net Weight525 lbs
Nominal Voltage480 VAC
Phase3, 3 ph
RotationReversible
RPM1,773 RPM
Service Factor1.15
Shaft Size1.88 in Dia x 4.62 in L
Special FeaturesSevere Duty Motors
Speed1773 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
TypeSevere Duty
UPC:691720247327
Voltage (AC)460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG24930813372.811In StockLeeson3372.81 @ 1
thumbzoomGalco811561.00-LEES3523.841In StockLeeson525.03523.84 @ 1
kscdirect.comLEE 811561.004092.571In StockLEESON ELECTRIC CORPORATION4092.57 @ 1
thumbzoomWalker Industrial811561-004239.531In Stock10Leeson4239.53 @ 1
AmazonTPB0773VTJSF4632.651In Stock10Leeson Electric4632.65 @ 1
thumbzoomRaptor SuppliesAJ2UKM5946.3355771In StockLEESON5946.335577 @ 1
Global IndustrialWBB5874998100.01In Stock16LEESON MOTORS8100.0 @ 1
