Leeson 980.143

B00EPK7SK6

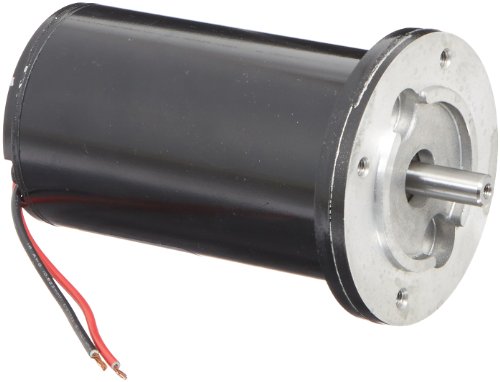

Leeson 980.143 Low Voltage Commercial DC Metric Motor, 56D Frame, B14 Mounting, 1/15HP, 3000 RPM, 24V Voltage

Leeson 980.143 Low Voltage Commercial DC Metric Motor, 56D Frame, B14 Mounting, 1/15HP, 3000 RPM, 24V Voltagezoom

Attributes

Key Value
Amperage Rating3.2 A
ApprovalsCSA, UL
Armature Current3.2 A
Armature Voltage24 V
CategoryElectric Motor
ConstructionRolled Steel
Description:1/15HP.3000RPM.56D.IP44.
Dimensions3.15 in Dia x 5.37 in L
Drive End Flange TypeB14-C-Face
EnclosureTEFC, IP44
Enclosure TypeTotally Enclosed Non-Ve.
Estimated Weight3.00
Family SeriesLeeson Motors
FL Amps3.2
FL Efficiency72.8
Frame56D
Frame RemarksFOOTLESS
Gross Weight0 lbs
Hertz60
Horsepower1/15 hp
HP0.050, 0.07
Insulation ClassClass A
Item ConditionFACTORY NEW
Item Number980.143
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number980.143
MaterialZinc Plated Steel
Max RPM3,000 RPM?
MFG Part #:980.143
Model Number980.143?
MountingFoot Mount
mountingC-face (NO base)
Mounting TypeB14, B14 Flange
Net Weight3 lbs
Number of Speeds1
Part Number980.143
PhaseC
Power Rating0.05 kW
Product TypeIEC Metric Motors
RotationReversible
RPM3000
Service Factor1
Shaft Size0.38 in Dia x 0.78 in L
Special FeaturesIEC Metric Motors
Speed3000 rpm
Speed (RPM)3000
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
Torque Rating22.5 in-oz
TypeContinuous Duty Low Vol.
UPC:691720991367
Voltage24V
Voltage Rating24 VDC
Volts24
