Leeson Electric 113913.00

B0773V6PZG

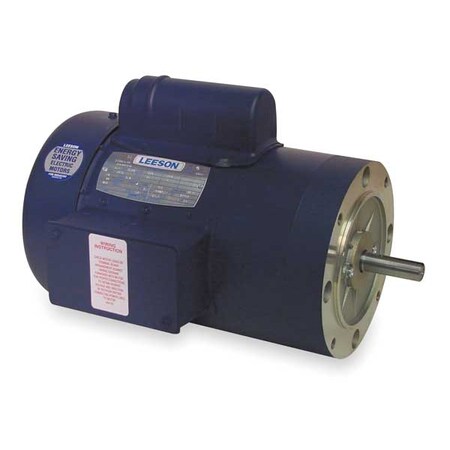

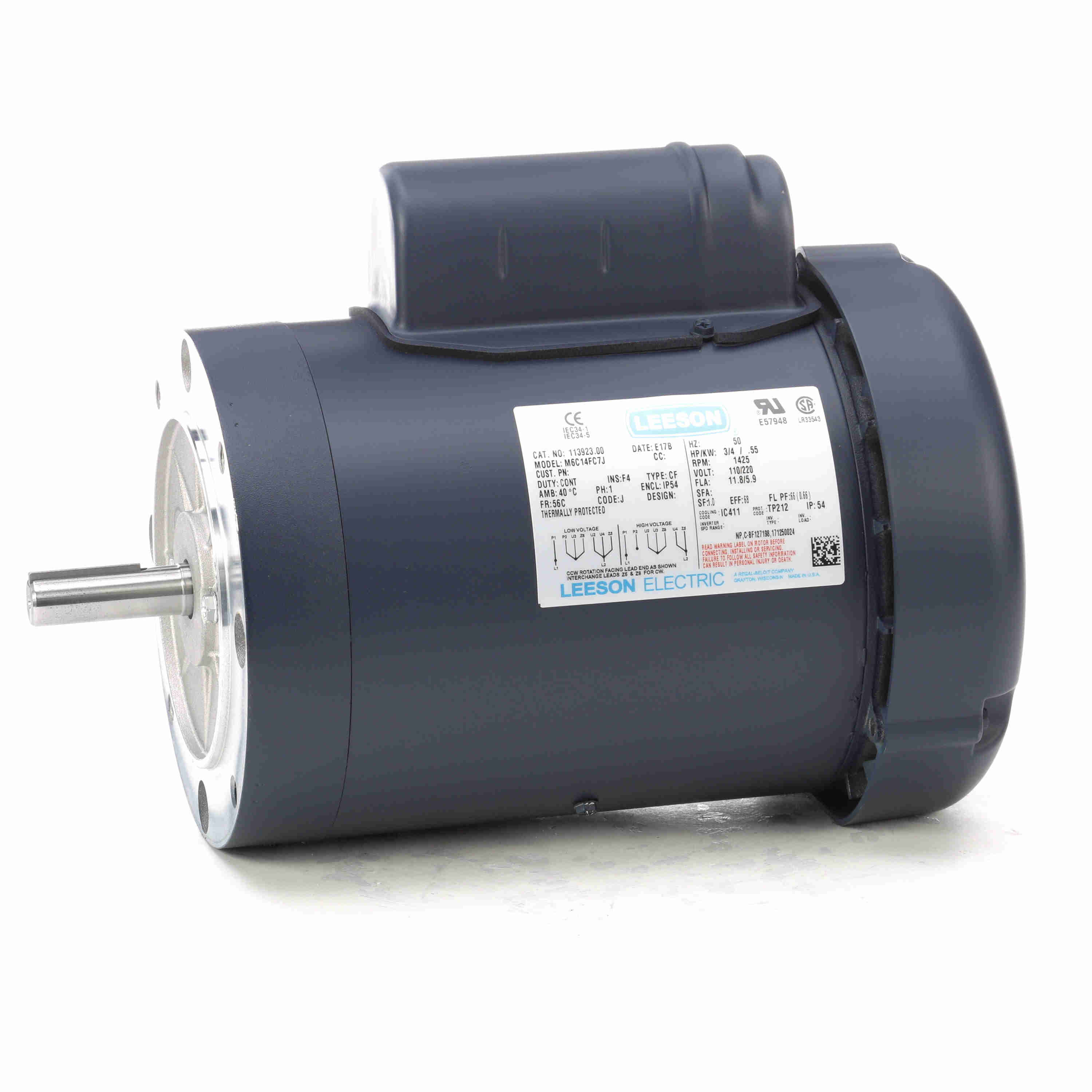

Leeson Electric, 113913.00, .75HP, 2850RPM, 1PH, 110V;220V, 56C Frame, C-Face Flange, Footless, TEFC, General Purpose Motor - 50Hz

Leeson Electric, 113913.00, .75HP, 2850RPM, 1PH, 110V;220V, 56C Frame, C-Face Flange, Footless, TEFC, General Purpose Motor - 50Hzzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6C28FC4 H
Ambient Temperature40 Degrees C
Amperage Rating11.2/5.6 A
Application TypeCompressor Motors, Fan .
Bearing TypeBall
CategoryElectric Motor
Country of Origin (subj.United States
Current Rating11.2 ; 5.6 A
Description:3/4HP..55kW.2850RPM.56..
Dimensions11.48 in L
Duty CycleContinuous
Efficiency70 %
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
Frame56c
Frame RemarksFOOTLESS
Frequency50 Hz
Frequency Rating50 Hz
Full Load Amps11.2/5.6
Gross Weight0 lbs
Horsepower0.75 HP
Horsepower Rating0.75 HP
HP3/4, 0.75
Hz50
Ins. ClassB
Insulation ClassClass B
Insulation TypeClass B
Item50 Hz Motor
Item ConditionFACTORY NEW
Length Less Shaft9-3/4"
ManufacturerLEESON ELECTRIC CORPORA.
MaterialRolled Steel
MFG Part #:113913.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Mounting PositionAll Angle
Motor Mounting TypeFace
Motor Service Factor1.00
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingC-face (NO base)
Mounting TypeRound, Round/C-Face/Foo.
Nameplate RPM2850
No. of Speeds1
Number of Speeds1
Phase1, 1 Phase, 1 ph
RotationSelective CCW
RPM2850 RPM, 3000
RPM Range1801-3000
Service Factor1
Shaft Dia.5/8"
Shaft Length1-7/8"
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1, Cap.
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage110/220 VAC
TypeCapacitor Start Inducti.
UPC Code691720012758
UPC:691720012758
Voltage110/220
Voltage Compatibility110/220 50Hz, 220 50Hz
Volts110/220

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG1746281199.761In Stock25Leeson199.76 @ 1
thumbzoomelectricmotorwholesale.com113913285.01In StockLEESON285.0 @ 1
AmazonTPB0773V6PZG372.811In Stock3Leeson Electric372.81 @ 1
thumbzoomDealers Electric113913.00503.211In StockLeeson31.0503.21 @ 1
us.rs-online.com72239238544.61In StockLeeson544.6 @ 1
thumbzoomGalco113913.00-LEES550.711In StockLeeson550.71 @ 1
thumbzoomWalker Industrial113913-00596.624In Stock10Leeson596.6 @ 24
kscdirect.comLEE 113913.00646.411In StockLEESON ELECTRIC CORPORATION646.41 @ 1
thumbzoomRaptor SuppliesAD7WEM1367.33471551In StockLEESON1367.3347155 @ 1
