Leeson Electric LM15675

B0773R7Y57

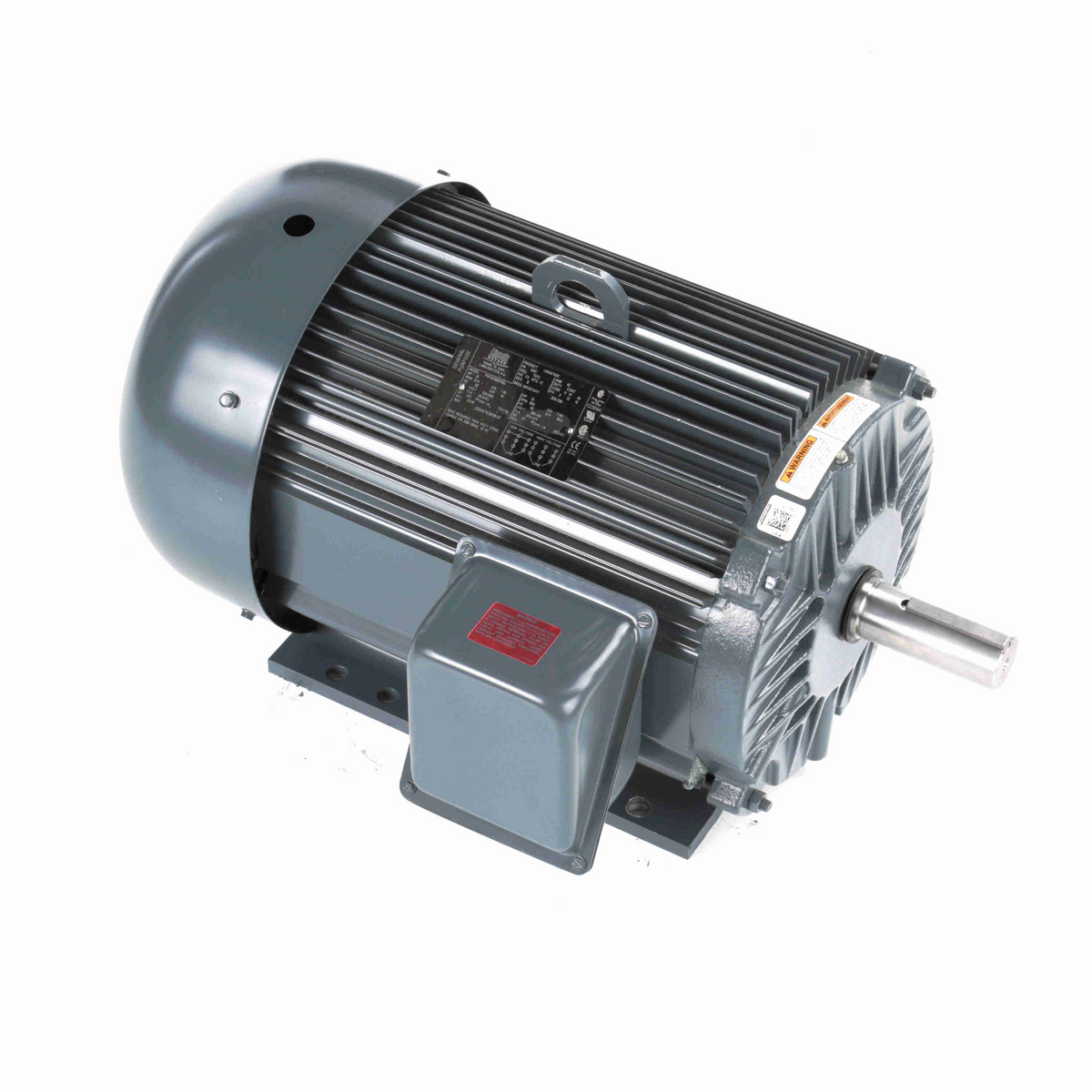

Leeson Electric, LM15675, 10HP, 1176RPM, 3PH, 230V;460V, 256T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM15675, 10HP, 1176RPM, 3PH, 230V;460V, 256T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating26.2/13.1 A
Amps26.2/13.1
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..10HP..1200RPM.256T.TE.
Dimensions25.15 in L x 16.98 in W.
Drive End Bearing Size309
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency91, 91.0%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight236.00
Family SeriesLeeson Miscellaneous
FL Amps26.2/13.1&15.5-14.5
FL Efficiency91
Frame256T
Frame MaterialAluminum
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM15675
KW7.5
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM15675
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM15675
Motor Shell Length13.75"
MountingFoot Mount, Rigid Base
Mounting TypeRigid Base
Net Weight0 lbs
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .208
Opp. Drive End Bearing .Ball
Overall Length25.15"
Part NumberLM15675
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1175, 1100 - 1200
Service Factor1.25
Shaft Diameter1.625, 1.625"
Shaft Length4", 4
Shaft Size1.63 in Dia x 4 in L
Ship Weight294 lbs.
Speed1176 rpm
Speed (RPM)1176
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720021101
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2251722190.631In StockLeeson2190.63 @ 1
thumbzoomGalcoLM15675-LEES2724.351In StockLeeson2724.35 @ 1
thumbzoomemotorpro.comLM156752728.151In StockLeeson294.02728.15 @ 1
AmazonTPB00BC8Q1DE2751.421In Stock10Leeson2751.42 @ 1
thumbzoommotorsandcontrol.comLE-LM156753004.79111Leeson Electric236.03004.79 @ 1
us.rs-online.com733966543060.751In StockLeeson3060.75 @ 1
cbtcompany.comLM156753231.561In StockLeeson Electric3231.56 @ 1
thumbzoomWalker IndustrialLM156753405.431In Stock17Leeson3405.43 @ 1
kscdirect.comLEE LM156753689.761In StockLEESON ELECTRIC CORPORATION3689.76 @ 1
factorysupplyoutlet.comGL12JO3902.981In StockLEESON3902.98 @ 1
thumbzoompumpproducts.comLM156754076.111In StockLeeson4076.11 @ 1
thumbzoomRaptor SuppliesAJ2VLE4320.42372451In StockLEESON4320.4237245 @ 1
