Leeson Electric LM16031

B0773R7YZB

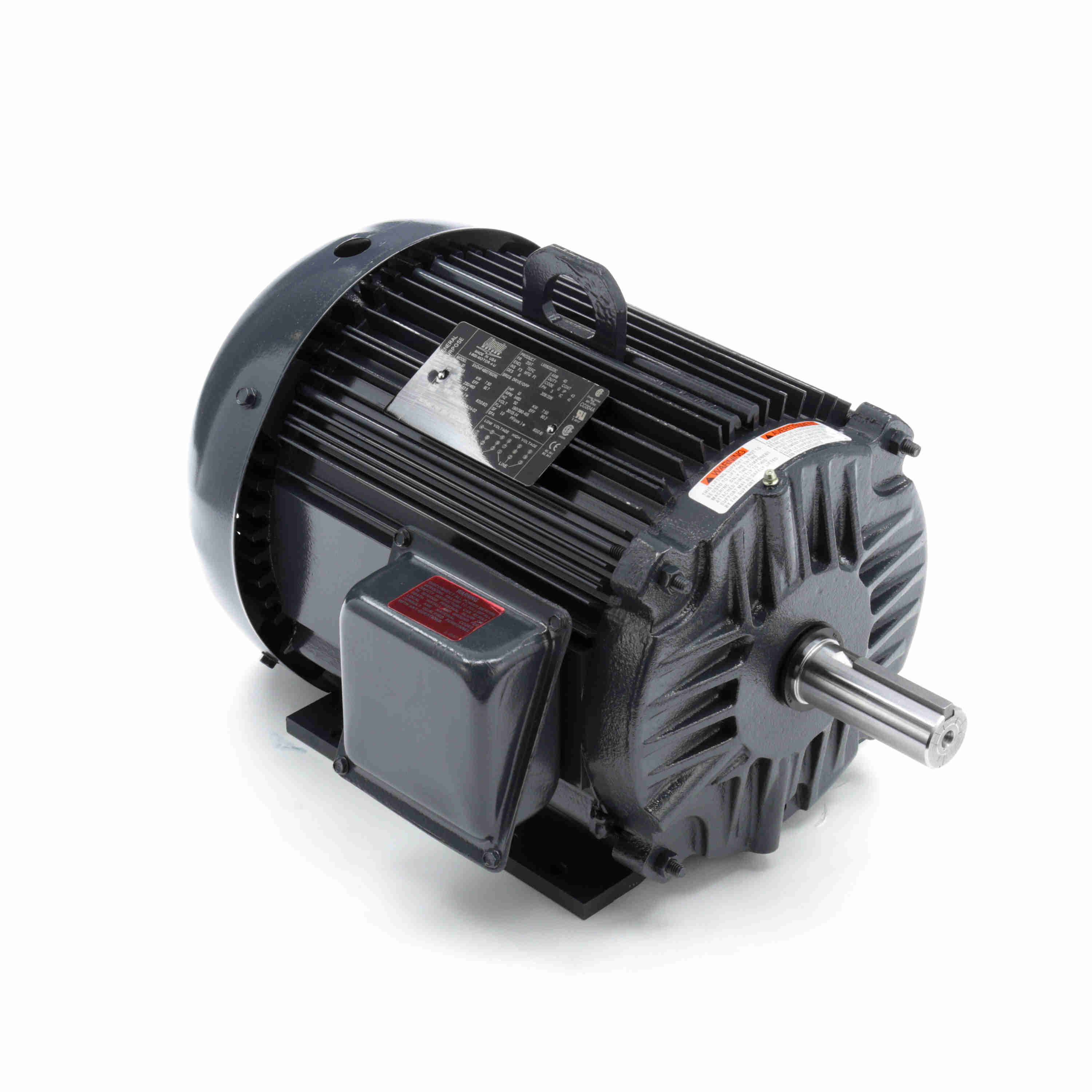

Leeson Electric, LM16031, 10HP, 3535RPM, 3PH, 230V;460V, 215T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16031, 10HP, 3535RPM, 3PH, 230V;460V, 215T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating23.6/11.8 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ConstructionAluminum
Description:..10HP..3600RPM.215T.TE.
Dimensions19.84 in L x 13.31 in W.
Drive End Flange TypeStandard
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight138.00
Family SeriesLeeson Miscellaneous
FL Amps23.6/11.8&21/10.5
FL Efficiency91.7
Frame215T
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60/50
Insulation ClassClass F
Item NumberLM16031
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16031
MaterialAluminum
MFG Part #:LM16031
MountingFoot Mount
Mounting TypeRigid Base
Net Weight0 lbs
Number of Speeds1
Part NumberLM16031
Phase3, 3 ph
Product TypeGeneral Purpose
RotationReversible
RPM3400 - 3600
Service Factor1.25
Shaft Size1.38 in Dia x 3.38 in L
Speed3535 rpm
Speed (RPM)3535
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720021026
Voltage230V, 460V, 230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2252371212.851In StockLeeson1212.85 @ 1
industrialmotors.comLM160311365.612LEESON ELECTRIC1365.6 @ 1
thumbzoomGalcoLM16031-LEES1508.351In StockLeeson1508.35 @ 1
AmazonTPB00BC7HZTO1616.111In Stock10Leeson1616.11 @ 1
thumbzoommotorsandcontrol.comLE-LM160311663.611In StockLeeson Electric138.01663.61 @ 1
thumbzoomcbtcompany.comLM160311789.121In StockLeeson Electric1789.12 @ 1
thumbzoomWalker IndustrialLM160311885.431In Stock17Leeson1885.43 @ 1
kscdirect.comLEE LM160312042.851In StockLEESON ELECTRIC CORPORATION2042.85 @ 1
factorysupplyoutlet.comAN86XG2288.31In StockLEESON2288.3 @ 1
thumbzoomRaptor SuppliesAJ2VLL2531.83688551In StockLEESON2531.8368855 @ 1
