Leeson Electric LM16752

B0773VNFJ4

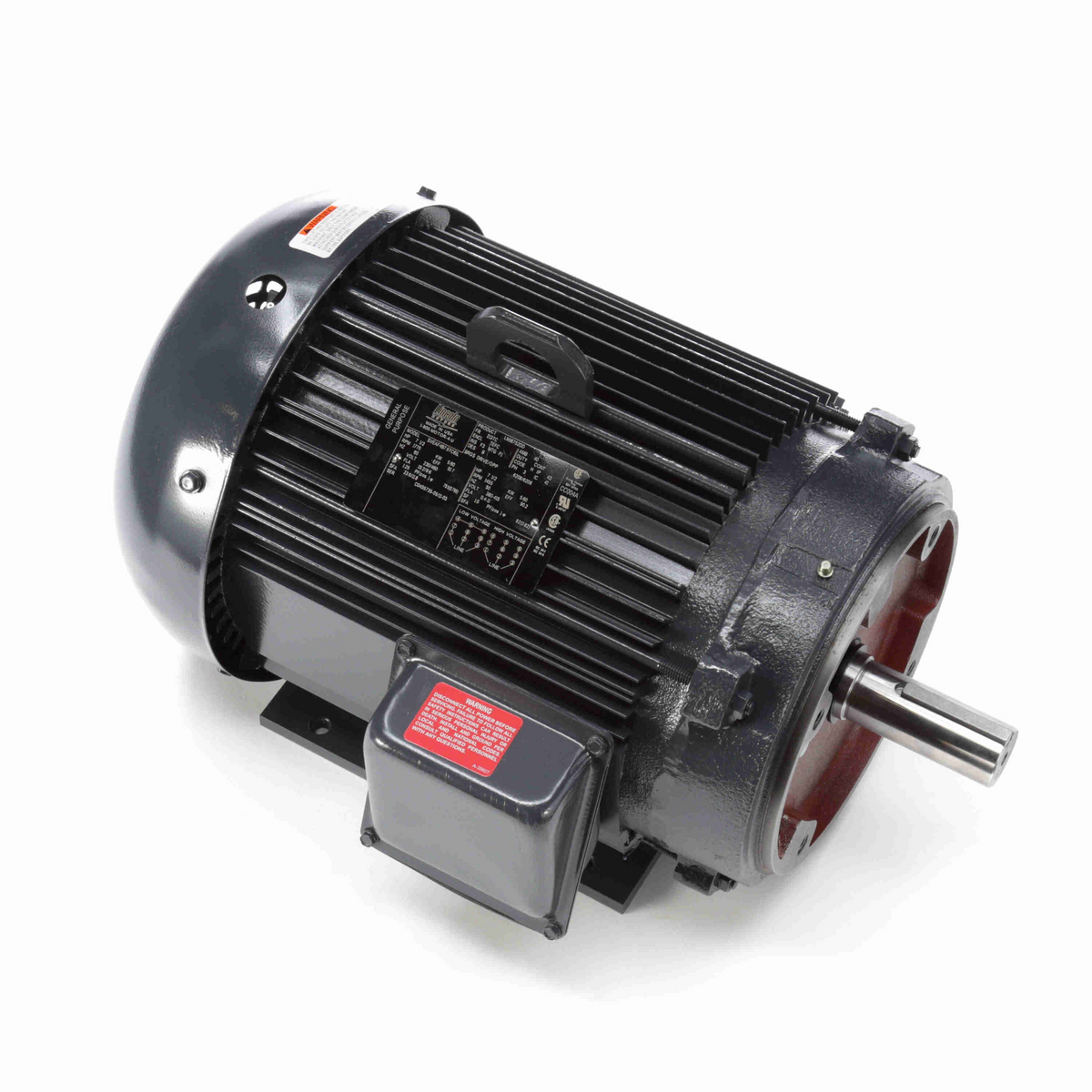

Leeson Electric, LM16752, 7.5HP, 1770RPM, 3PH, 230V;460V, 213TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16752, 7.5HP, 1770RPM, 3PH, 230V;460V, 213TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating19.2/9.6 A
Amps19.2/9.6
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..7.5HP..1800RPM.213TC..
Dimensions19.57 in L
Drive End Bearing Size6208
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7, 91.7%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight138.00
Family SeriesLeeson Miscellaneous
FL Amps19.2/9.6&11.4-11
FL Efficiency91.7
Frame213TC
Frame MaterialAluminum
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower7.5 hp
HP7.50, 7-1/2, 7.5
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16752
KW5.6
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16752
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16752
Motor Shell Length9.50"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base
Net Weight0 lbs
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6206
Opp. Drive End Bearing .Ball
Overall Length19.57"
Part NumberLM16752
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1700 - 1800, 1770
Service Factor1.25
Shaft Diameter1.375", 1.375
Shaft Length3.38", 3.38
Shaft Size1.38 in Dia x 3.38 in L
Ship Weight141 lbs.
Speed1770 rpm
Speed (RPM)1770
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061770
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254301298.811In StockLeeson1298.81 @ 1
industrialmotors.comLM167521336.811LEESON ELECTRIC1336.8 @ 1
thumbzoomapexindustrialautomation.comLM167521348.7715Leeson1348.77 @ 1
AmazonTPB00BC9292A1584.271In Stock10Leeson1584.27 @ 1
thumbzoomGalcoLM16752-LEES1615.251In StockLeeson1615.25 @ 1
thumbzoomemotorpro.comLM167521617.511In StockLeeson141.01617.51 @ 1
thumbzoommotorsandcontrol.comLE-LM167521781.52112Leeson Electric138.01781.52 @ 1
thumbzoomZoroG24963101790.011Leeson1790.0 @ 1
us.rs-online.com733970711814.711In StockLeeson1814.71 @ 1
thumbzoomcbtcompany.comLM167521916.031In StockLeeson Electric1916.03 @ 1
thumbzoomWalker IndustrialLM167522019.071In Stock10Leeson2019.07 @ 1
kscdirect.comLEE LM167522187.641In StockLEESON ELECTRIC CORPORATION2187.64 @ 1
factorysupplyoutlet.comRH91OJ2240.061In StockLEESON2240.06 @ 1
thumbzoompumpproducts.comLM167522305.171In StockLeeson2305.17 @ 1
