Leeson Electric LM16755

B0773R7W76

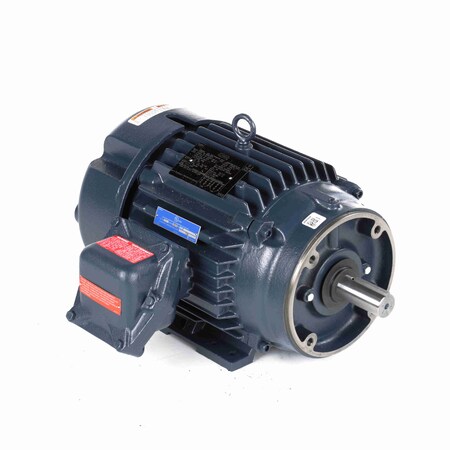

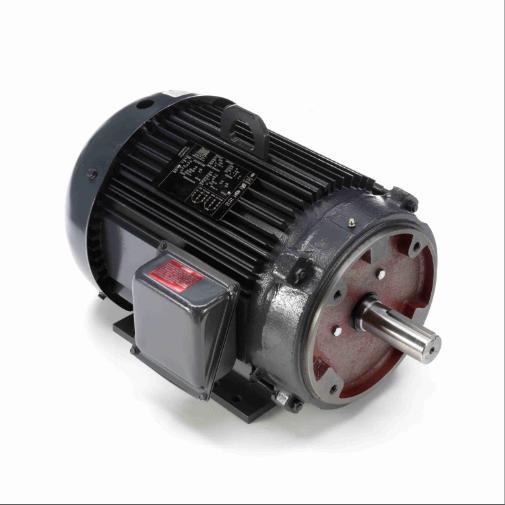

Leeson Electric, LM16755, 10HP, 3535RPM, 3PH, 230V;460V, 215TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16755, 10HP, 3535RPM, 3PH, 230V;460V, 215TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating23.6/11.8 A
Amps23.6/11.8
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..10HP..3600RPM.215TC.T.
Dimensions20.57 in L x 13.35 in W.
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight149.00
Family SeriesLeeson Miscellaneous
FL Amps23.6/11.8&21/10.5
Frame215TC
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Variable 20:1
Item NumberLM16755
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16755
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16755
Motor Shell Length10.50"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base
Net Weight0 lbs
Number of Speeds1
Overall Length20.57"
Part NumberLM16755
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3535, 3400 - 3600
Service Factor1.25
Shaft Diameter1.375"
Shaft Length3.12"
Shaft Size1.38 in Dia x 3.12 in L
Ship Weight150 lbs.
Speed3535 rpm
Speed (RPM)3535
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061794
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254321348.111In StockLeeson1348.11 @ 1
industrialmotors.comLM167551434.0122LEESON ELECTRIC1434.0 @ 1
thumbzoomGalcoLM16755-LEES1676.561In StockLeeson1676.56 @ 1
thumbzoomZoroG17312531810.01In Stock10Leeson1810.0 @ 1
thumbzoommotorsandcontrol.comLE-LM167551849.15118Leeson Electric149.01849.15 @ 1
us.rs-online.com733966891883.591In StockLeeson1883.59 @ 1
thumbzoomemotorpro.comLM167551944.041In StockLeeson150.01944.04 @ 1
thumbzoomcbtcompany.comLM167551989.081In StockLeeson Electric1989.08 @ 1
thumbzoomWalker IndustrialLM167552095.71In Stock10Leeson2095.7 @ 1
kscdirect.comLEE LM167552270.671In StockLEESON ELECTRIC CORPORATION2270.67 @ 1
thumbzoompumpproducts.comLM167552392.661In StockLeeson2392.66 @ 1
factorysupplyoutlet.comZP42WB2402.931In StockLEESON2402.93 @ 1
thumbzoomRaptor SuppliesAJ2VMX2659.2931In StockLEESON2659.293 @ 1
