Leeson Electric LM16757

B0773V616T

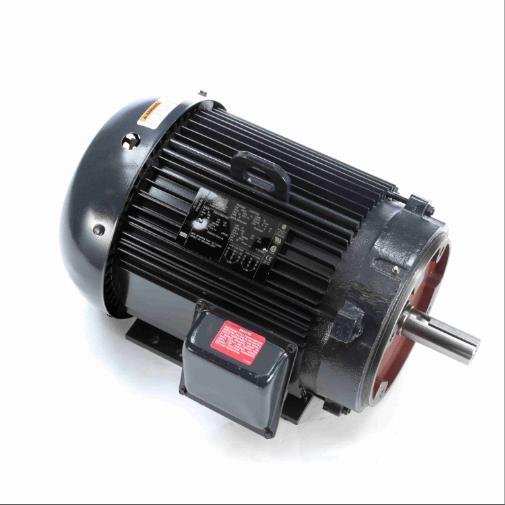

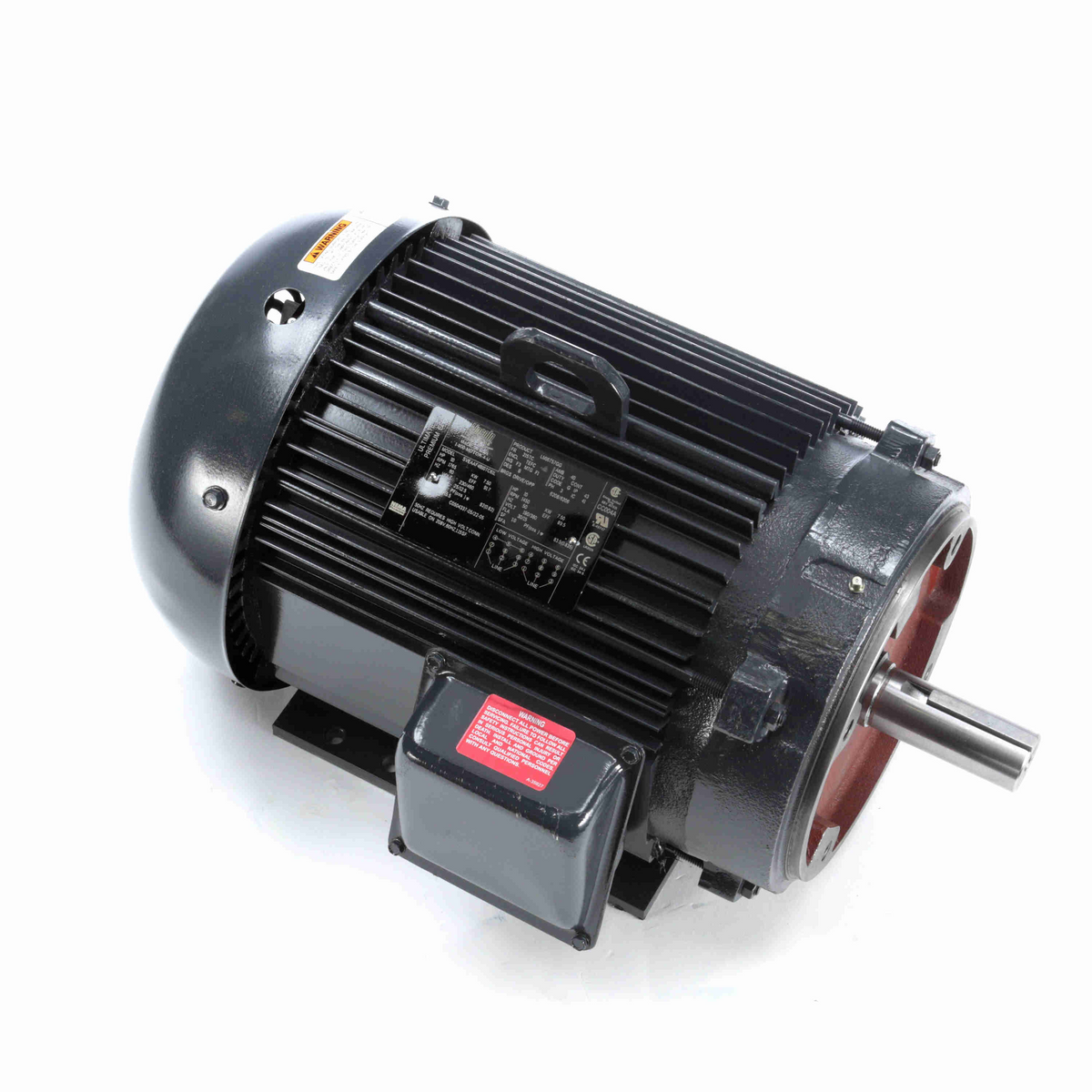

Leeson Electric, LM16757, 10HP, 1765RPM, 3PH, 230V;460V, 215TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16757, 10HP, 1765RPM, 3PH, 230V;460V, 215TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating25/12.5 A
Amps25.0/12.5
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..10HP..1800RPM.215TC.T.
Dimensions19.57 in L x 13.35 in W.
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency91.7%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight149.00
Family SeriesLeeson Miscellaneous
FL Amps25/12.5&30/15
FL Efficiency91.7
Frame215TC
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16757
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16757
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16757
Motor Shell Length9.50"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base
Net Weight0 lbs
Number of Speeds1
Overall Length19.57"
Part NumberLM16757
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1700 - 1800, 1765
Service Factor1.25
Shaft Diameter1.375"
Shaft Length3.38"
Shaft Size1.38 in Dia x 3.38 in L
Ship Weight150 lbs.
Speed1765 rpm
Speed (RPM)1765
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061800
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254331328.561In StockLeeson1328.56 @ 1
industrialmotors.comLM167571413.0119LEESON ELECTRIC1413.0 @ 1
thumbzoomGalcoLM16757-LEES1652.241In StockLeeson1652.24 @ 1
thumbzoomemotorpro.comLM167571654.551In StockLeeson150.01654.55 @ 1
AmazonTPB00BC9072E1675.441In Stock10Leeson1675.44 @ 1
thumbzoomZoroG17305621782.01In Stock10Leeson1782.0 @ 1
thumbzoommotorsandcontrol.comLE-LM167571822.32132Leeson Electric149.01822.32 @ 1
us.rs-online.com733966751856.261In StockLeeson1856.26 @ 1
thumbzoomcbtcompany.comLM167571959.991In StockLeeson Electric1959.99 @ 1
thumbzoomWalker IndustrialLM167572065.31In Stock10Leeson2065.3 @ 1
kscdirect.comLEE LM167572237.741In StockLEESON ELECTRIC CORPORATION2237.74 @ 1
thumbzoompumpproducts.comLM167572357.951In StockLeeson2357.95 @ 1
factorysupplyoutlet.comUC48RY2367.741In StockLEESON2367.74 @ 1
thumbzoomRaptor SuppliesAJ2VMY2620.3868731In StockLEESON2620.386873 @ 1
