Leeson LM16762

B00BC8CSCC

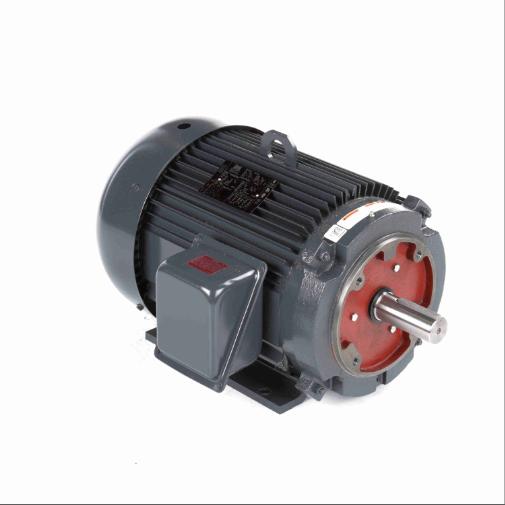

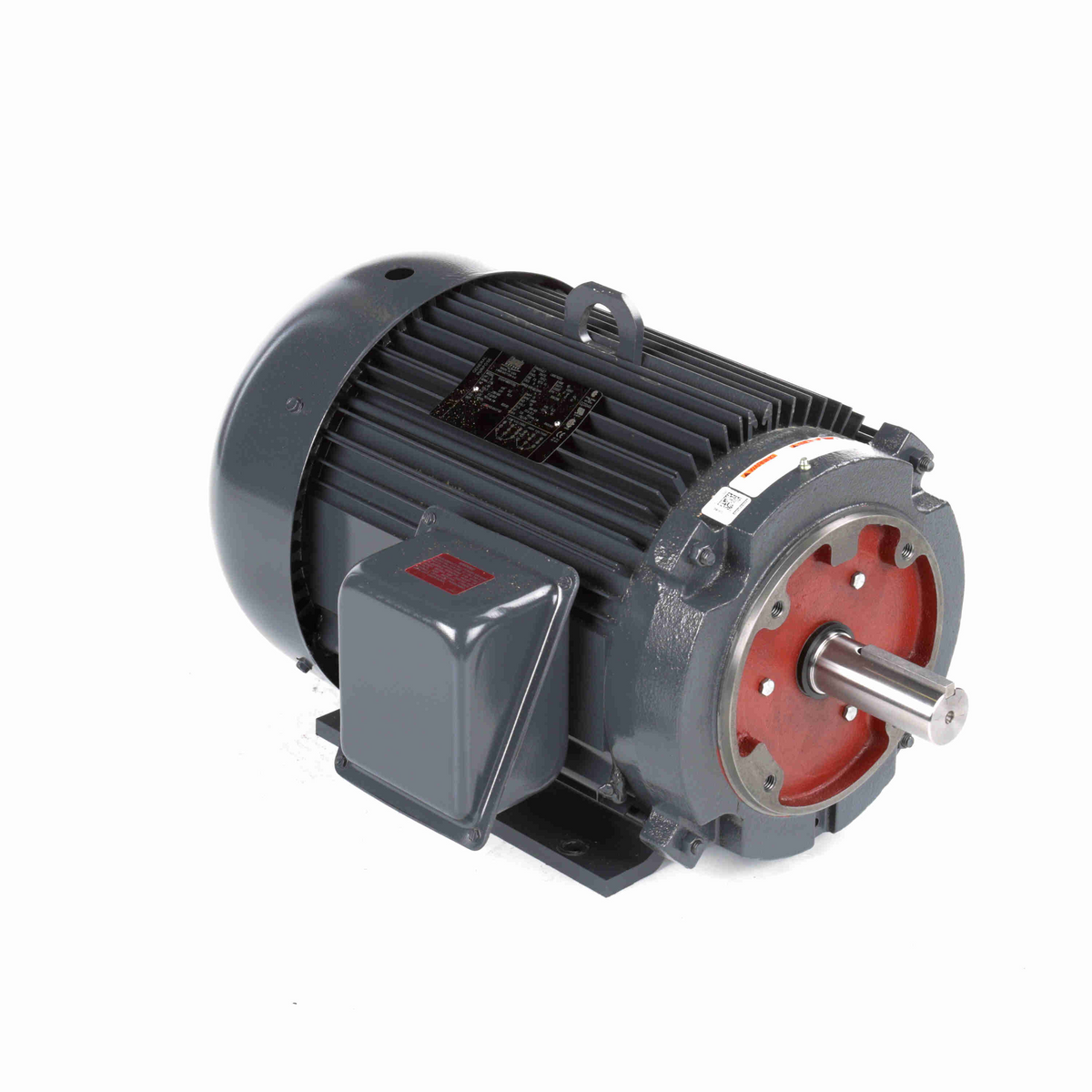

Leeson 15,1800,TEFC,254T,3/60/230/460 (LM16762)

Leeson 15,1800,TEFC,254T,3/60/230/460 (LM16762)zoom

Attributes

Key Value
Amperage Rating37.5/18.8 A
Amps37.5/18.8
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..15HP..1800RPM.254TC.T.
Dimensions24 in L x 16.87 in W x .
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency92.4%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight221.00
Family SeriesLeeson Miscellaneous
FL Amps37.5/18.8&22.5-21.5
FL Efficiency92.4
Frame254TC
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower15 hp
HP15
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16762
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16762
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16762
Motor Shell Length12.00"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base
Net Weight0 lbs
Number of Speeds1
Overall Length24.00"
Part NumberLM16762
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1775, 1700 - 1800
Service Factor1.25
Shaft Diameter1.625"
Shaft Length4"
Shaft Size1.63 in Dia x 4 in L
Ship Weight250 lbs.
Speed1775 rpm
Speed (RPM)1775
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061831
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254361872.851In StockLeeson1872.85 @ 1
thumbzoomGalcoLM16762-LEES2329.151In StockLeeson2329.15 @ 1
AmazonTPB00BC8CSCC2363.371In Stock10Leeson2363.37 @ 1
thumbzoommotorsandcontrol.comLE-LM167622568.91125Leeson Electric221.02568.91 @ 1
us.rs-online.com733967042616.761In StockLeeson2616.76 @ 1
thumbzoomZoroG17313142670.9911Leeson2670.99 @ 1
thumbzoomemotorpro.comLM167622700.741In StockLeeson250.02700.74 @ 1
cbtcompany.comLM167622762.921In StockLeeson Electric2762.92 @ 1
thumbzoomWalker IndustrialLM167622911.431In Stock10Leeson2911.43 @ 1
kscdirect.comLEE LM167623154.521In StockLEESON ELECTRIC CORPORATION3154.52 @ 1
factorysupplyoutlet.comGQ83CT3337.941In StockLEESON3337.94 @ 1
thumbzoompumpproducts.comLM167623484.821In StockLeeson3484.82 @ 1
thumbzoomRaptor SuppliesAJ2VMZ3693.88088551In StockLEESON3693.8808855 @ 1
