Leeson LM16767

B00BC8I9Y8

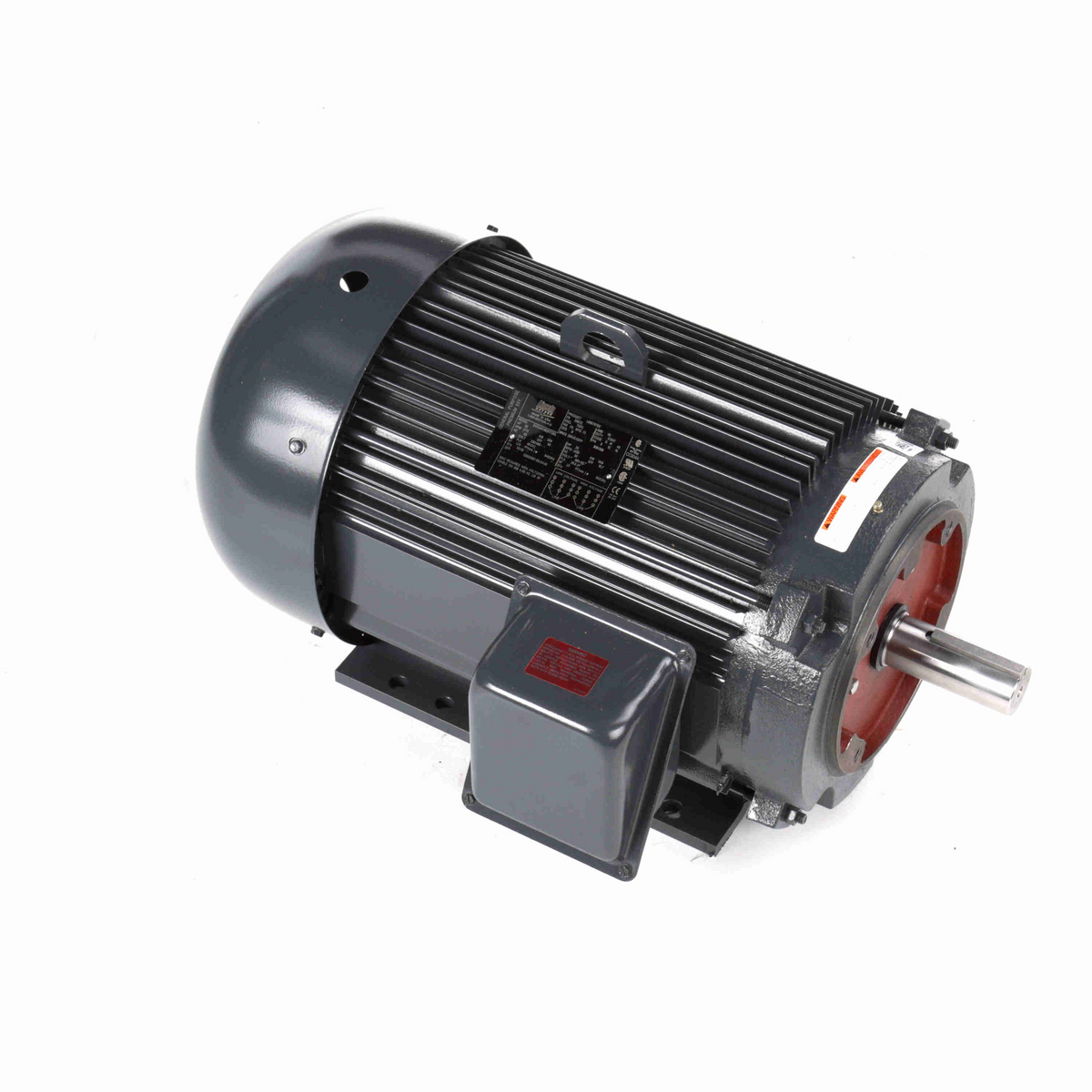

Leeson,20 HP General Purpose Motor, 3 Phase, 1800 RPM, 230/460 V, 256TC Frame, TEFC

Leeson,20 HP General Purpose Motor, 3 Phase, 1800 RPM, 230/460 V, 256TC Frame, TEFCzoom

Attributes

Key Value
Amperage Rating48/24.1 A
Amps48.0/24.1
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionAluminum
ConstructionAluminum
CT Speed Range10:1
Description:..20HP..1800RPM.256TC.T.
Dimensions25.75 in L x 16.87 in W.
Drive End Bearing Size309
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency93, 93.0%
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight248.00
Family SeriesLeeson Motors, Three Ph.
FL Amps48/24.1&28.5-27
FL Efficiency93
Frame256TC
Frame MaterialAluminum
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower20 hp
HP20
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16767
KW14.9
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16767
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16767
Model NumberAF4B20TC61
Motor Shell Length13.75"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA Frame256TC
Net Weight248 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .208
Opp. Drive End Bearing .Ball
Overall Length25.15 ", 25.75"
Part NumberLM16767
Phase3, 3 ph
Product SeriesThree Phase C Face
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1775, 1,800 RPM, 1700 -.
Service Factor1.25
Shaft Diameter1.625, 1.625"
Shaft Length4", 4
Shaft Size1.63 in Dia x 4 in L
Ship Weight288 lbs.
Speed1775 rpm
Speed (RPM)1775
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061855
Voltage230V, 460V, 230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254382036.631In StockLeeson2036.63 @ 1
thumbzoomGalcoLM16767-LEES2516.051In StockLeeson248.02516.05 @ 1
AmazonTPB00BC8I9Y82572.451In Stock10Leeson2572.45 @ 1
thumbzoommotorsandcontrol.comLE-LM167672793.55119Leeson Electric248.02793.55 @ 1
us.rs-online.com733967812845.591In StockLeeson2845.59 @ 1
thumbzoomemotorpro.comLM167672936.911In StockLeeson288.02936.91 @ 1
cbtcompany.comLM167673004.361In StockLeeson Electric3004.36 @ 1
thumbzoomWalker IndustrialLM167673166.031In Stock17Leeson3166.03 @ 1
kscdirect.comLEE LM167673430.371In StockLEESON ELECTRIC CORPORATION3430.37 @ 1
thumbzoompumpproducts.comLM167673789.561In StockLeeson3789.56 @ 1
thumbzoomRaptor SuppliesAJ2VNA4016.6721271In StockLEESON4016.672127 @ 1
