Leeson Electric LM16769

B0773R85J2

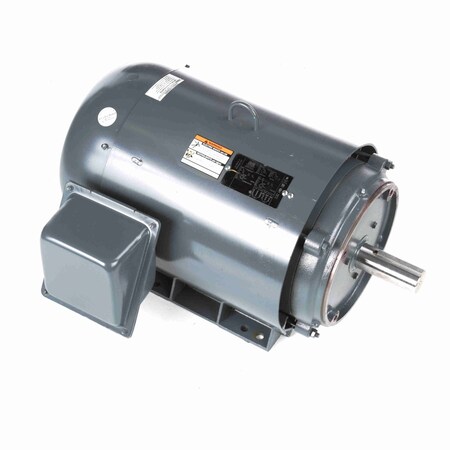

Leeson Electric, LM16769, 20HP, 1182RPM, 3PH, 230V;460V, 286TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16769, 20HP, 1182RPM, 3PH, 230V;460V, 286TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating61/30.5 A
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
CompositionAluminum
ConstructionAluminum
Country of Origin (subj.United States
CT Speed Range10:1
Description:..20HP..1200RPM.286TC.T.
Dimensions28.01 in L x 18.77 in W.
Drive End Flange TypeC-Face
Efficiency %91.7 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight415.00
Family SeriesLeeson Motors, Three Ph.
FL Amps61/30.5&27.5-28.5
FL Efficiency91.7
Frame286TC
Frequency Rating60/50 Hz
Gross Weight0 lbs
Hertz60
Horsepower20 hp
HP20
Insulation ClassClass F
Item NumberLM16769
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16769
MaterialAluminum
MFG Part #:LM16769
Model NumberAF6B20TC61Y
MountingFoot Mount
Mounting TypeRigid Base, C-Face Foot.
NEMA Frame286TC
Net Weight415 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Speeds1
Overall Length28.01 "
Part NumberLM16769
Phase3, 3 ph
Product SeriesThree Phase C Face
Product TypeGeneral Purpose
RotationReversible
RPM1,200 RPM
Service Factor1.15, 1.25
Shaft Size1.875 in Dia x 4.38 in L
Speed1182 rpm
Speed (RPM)1182
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720061862
Voltage230V, 460V
Voltage (AC)230 VAC, 460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254394046.371In Stock14Leeson416.04046.37 @ 1
thumbzoomapexindustrialautomation.comLM167694202.013Leeson4202.0 @ 1
thumbzoomGalcoLM16769-LEES5032.211In StockLeeson415.05032.21 @ 1
AmazonTPB00BC97Y2U5065.841In Stock10Leeson5065.84 @ 1
thumbzoommotorsandcontrol.comLE-LM167695550.231In StockLeeson Electric415.05550.23 @ 1
us.rs-online.com733967765653.61In StockLeeson5653.6 @ 1
thumbzoomZoroG17309585740.01In Stock10Leeson5740.0 @ 1
cbtcompany.comLM167695969.721In StockLeeson Electric5969.72 @ 1
thumbzoomWalker IndustrialLM167696290.271In Stock17Leeson6290.27 @ 1
kscdirect.comLEE LM167696815.461In StockLEESON ELECTRIC CORPORATION6815.46 @ 1
factorysupplyoutlet.comNY61TK7212.791In StockLEESON7212.79 @ 1
