Leeson Electric LM16772

B0773T62SF

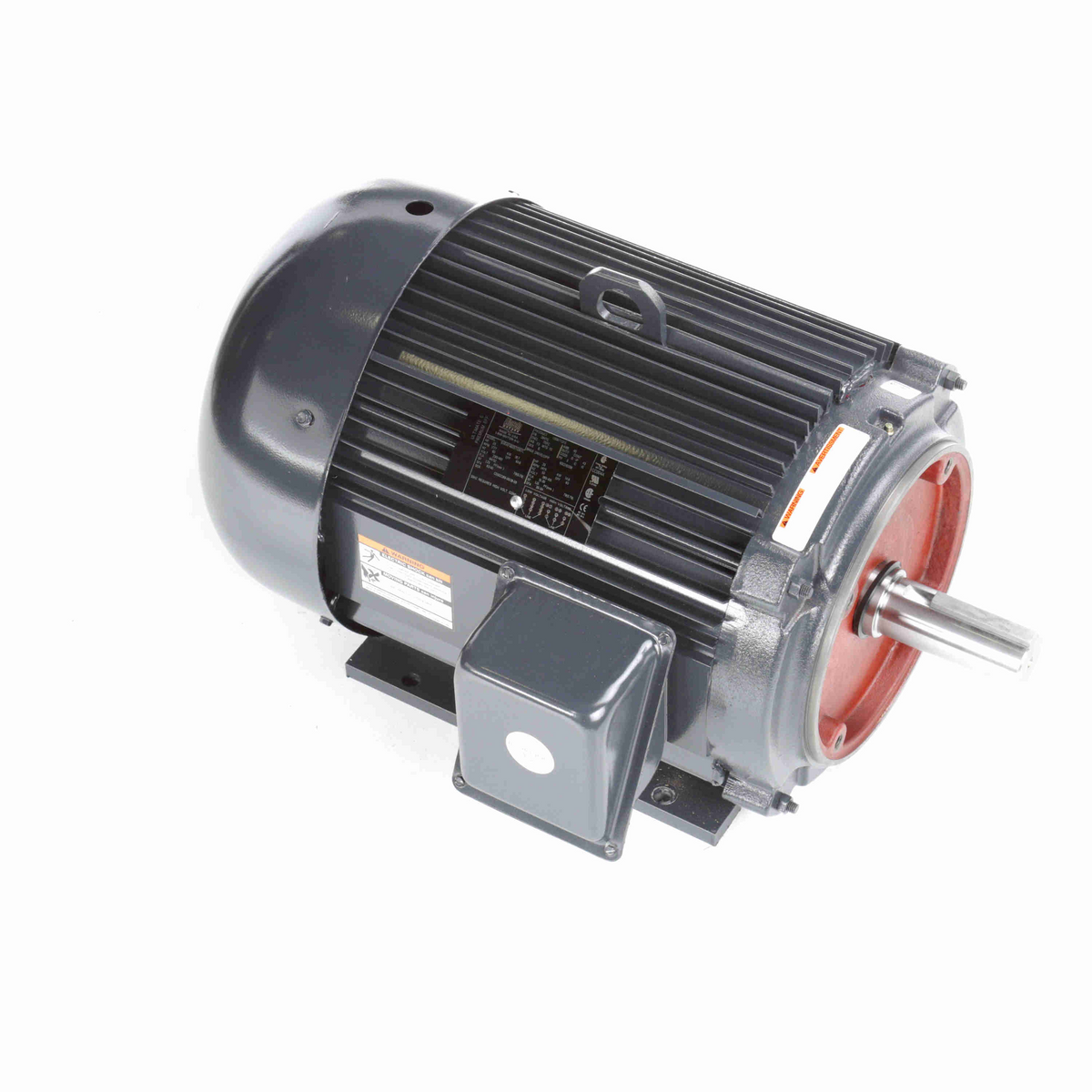

Leeson Electric, LM16772, 25HP, 1777RPM, 3PH, 230V;460V, 284TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16772, 25HP, 1777RPM, 3PH, 230V;460V, 284TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating64/32 A
Amps64.0/32.0
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
ConstructionAluminum
Description:..25HP..1800RPM.284TC.T.
Dimensions26.51 in L x 18.77 in W.
Drive End Bearing Size6312
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency93.6, 93.6%
EnclosureTEFC
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight370.00
Family SeriesLeeson Miscellaneous
FL Amps64/32&31-30
FL Efficiency93.6
Frame284TC
Frame MaterialAluminum
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower25 hp
HP25
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16772
KW18.7
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16772
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16772
Motor Shell Length13.75"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base
Net Weight0 lbs
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6209
Opp. Drive End Bearing .Ball
Overall Length26.51"
Part NumberLM16772
Phase3, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1775, 1700 - 1800
Service Factor1.25
Shaft Diameter1.875", 1.875
Shaft Length4.62", 4.62
Shaft Size1.88 in Dia x 4.62 in L
Ship Weight280 lbs.
Speed1777 rpm
Speed (RPM)1777
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061893
Voltage230V, 460V, 230/460
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254402817.221In StockLeeson2817.22 @ 1
thumbzoomGalcoLM16772-LEES3503.61In StockLeeson3503.6 @ 1
AmazonTPB00BC814EK3509.021In Stock10Leeson3509.02 @ 1
thumbzoommotorsandcontrol.comLE-LM167723864.2611Leeson Electric370.03864.26 @ 1
us.rs-online.com733968013936.241In StockLeeson3936.24 @ 1
thumbzoomemotorpro.comLM167724062.561In StockLeeson280.04062.56 @ 1
thumbzoomcbtcompany.comLM167724156.461In StockLeeson Electric4156.46 @ 1
thumbzoomWalker IndustrialLM167724379.51In Stock10Leeson4379.5 @ 1
kscdirect.comLEE LM167724745.151In StockLEESON ELECTRIC CORPORATION4745.15 @ 1
factorysupplyoutlet.comOM50BF4930.511In StockLEESON4930.51 @ 1
thumbzoompumpproducts.comLM167725242.021In StockLeeson5242.02 @ 1
thumbzoomRaptor SuppliesAJ2VNB5455.9753561In StockLEESON5455.975356 @ 1
