Leeson LM17196

B00BC9DNLQ

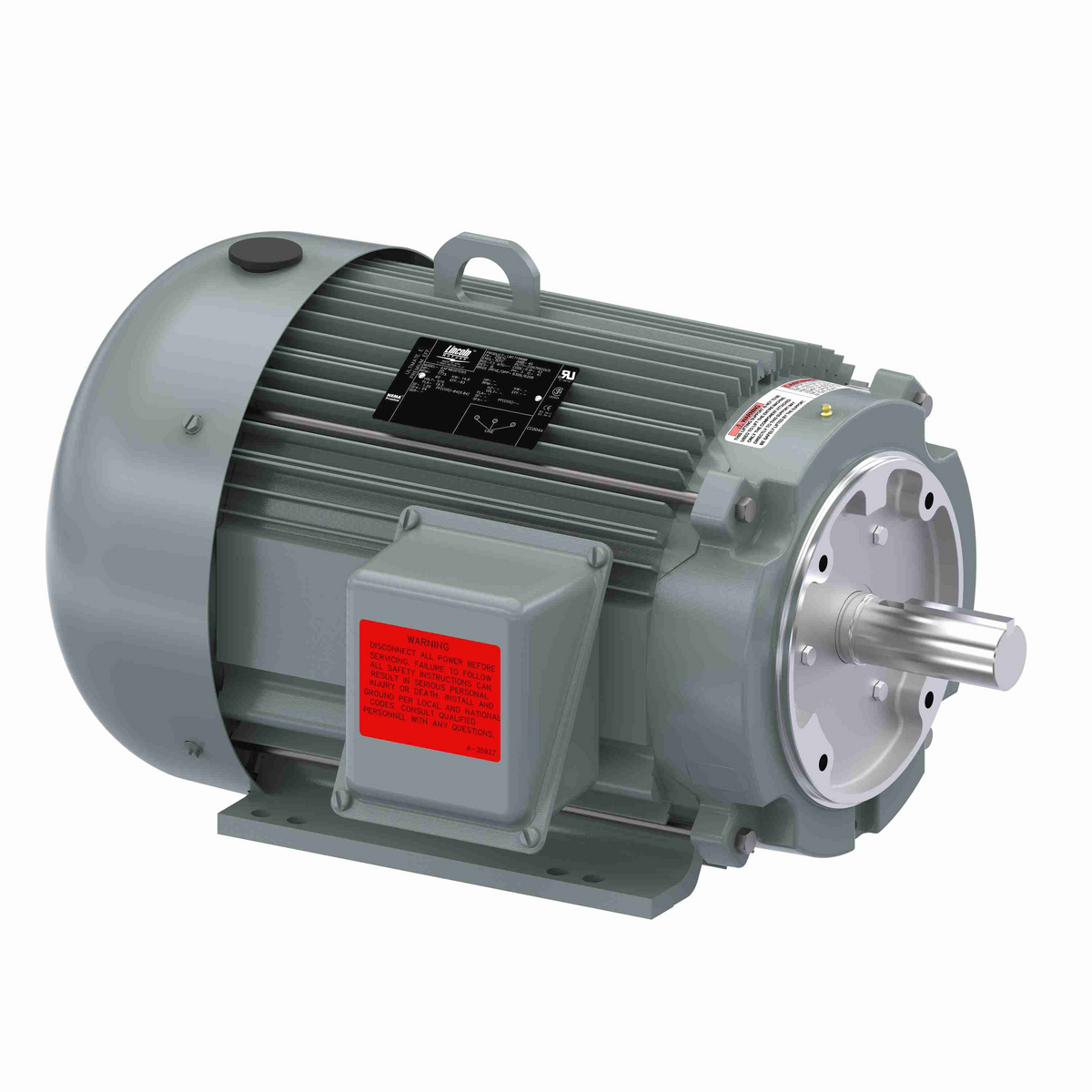

Leeson,20 HP Special Voltage Motor, 3 Phase, 1800 RPM, 575 V, 256TC Frame, TEFC

Leeson,20 HP Special Voltage Motor, 3 Phase, 1800 RPM, 575 V, 256TC Frame, TEFCzoom

Attributes

Key Value
Amperage Rating19.3 A
Amps19.3
Bearing TypeBall
BearingsBall
CompositionAluminum
Country of Origin (subj.United States
Description:..20HP..1800RPM.256TC.T.
Dimensions25.75 in L x 16.87 in W.
Duty CycleContinuous
Efficiency93.0%
Efficiency %93 %
EnclosureTotally Enclosed Fan Co.
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Family SeriesLeeson Motors
Frame256TC
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower20 hp
HP20
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Variable 10:1
Item NumberLM17196
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberLM17196
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM17196
Motor Shell Length13.88"
MountingRigid Base
Mounting TypeC-Face, Rigid Base
NEMA Frame256TC
Net Weight0 lbs
Nominal Voltage575 VAC
Number of Speeds1
Overall Length25.75"
Phase3, 3 ph
Product SeriesSpecial Voltage
Product TypeThree Phase
RotationReversible
RPM1,775 RPM, 1775
Service Factor1.25
Shaft Diameter1.625"
Shaft Length4"
Shaft Size1-5/8 in Dia x 4 in L
Ship Weight248 lbs.
Speed1775 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720104293
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply7269781598.031In Stock9Leeson248.01598.03 @ 1
AmazonTPB00BC9DNLQ2481.821In Stock10Leeson2481.82 @ 1
thumbzoomGalcoLM17196-LEES2566.771In StockLeeson2566.77 @ 1
us.rs-online.com733967822883.731In StockLeeson2883.73 @ 1
thumbzoomemotorpro.comLM171962976.281In StockLeeson248.02976.28 @ 1
thumbzoomcbtcompany.comLM171963044.61In StockLeeson Electric3044.6 @ 1
thumbzoomZoroG19090013058.671In Stock26Leeson3058.67 @ 1
thumbzoomWalker IndustrialLM171963208.471In Stock17Leeson3208.47 @ 1
kscdirect.comLEE LM171963476.351In StockLEESON ELECTRIC CORPORATION3476.35 @ 1
