Leeson Electric LM25114

B0773V55RT

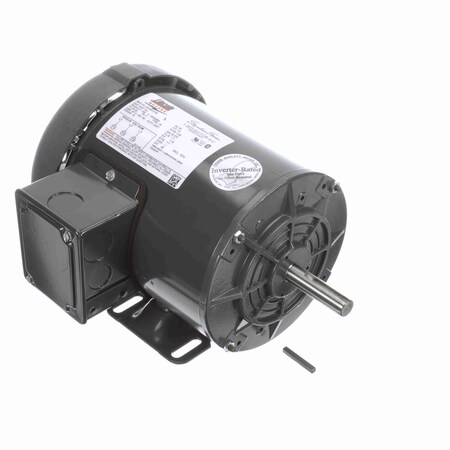

Leeson Electric, LM25114, .5HP, 1725RPM, 3PH, 230V;460V, 56 Frame, Standard Flange, Foot Mount, TENV, Automotive Duty Motor

Leeson Electric, LM25114, .5HP, 1725RPM, 3PH, 230V;460V, 56 Frame, Standard Flange, Foot Mount, TENV, Automotive Duty Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.SRN4H0.5TC61
Amperage Rating2/1 A
Application TypeAutomotive Motors
ApprovalsCSA, UL
Bearing TypeBall
CompositionSteel
Country of Origin (subj.Mexico
Current Rating2.0 ; 1.0 A
Description:Obsolete, No Replacemen.
Dimensions10.44 in L x 6.5 in W x.
Duty CycleContinuous
Efficiency77 %
Efficiency %77 %
Enclosure TypeTotally Enclosed Nonven.
Family SeriesLeeson Motors, Automoti.
Frame56C
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
Insulation ClassClass F
Insulation TypeClass F
Item NumberLM25114
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberLM25114
MaterialRolled Steel
MFG Part #:LM25114
Model NumberSRN4H0.5TC61
Mounting TypeRigid Base, C-Face Foot.
NEMA Frame56C
Net Weight26 lbs
Nominal Voltage240 VAC, 277 VAC, 347 V.
Overall Length10.44 "
Phase3, 3 ph, 3 Phase
Product SeriesAutomotive Duty
RotationReversible
RPM1725 rpm, 1,800 RPM
Service Factor1
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1
Speed1725 rpm
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage230 VAC ; 460 VAC
Temperature Rating65 deg C
TypeSquirrel Cage Induction.
UPC Code691720360361
UPC:691720360361
Voltage (AC)230-460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply22676388.81In Stock14Leeson26.088.8 @ 1
thumbzoomGalcoLM25114-LEES95.911In StockLeeson26.095.91 @ 1
kscdirect.comLEE LM25114105.021In StockLEESON ELECTRIC CORPORATION105.02 @ 1
us.rs-online.com72239013112.381In StockLeeson112.38 @ 1
thumbzoomWalker IndustrialLM25114119.881In Stock17Leeson119.88 @ 1
thumbzoomRaptor SuppliesAJ2WDH180.39615751In StockLEESON180.3961575 @ 1
AmazonTPB00BC8P130527.761In Stock5Leeson527.76 @ 1
thumbzoomZoroG1732014622.811In Stock10Leeson622.81 @ 1
thumbzoomcbtcompany.comLM25114794.261In StockLeeson Electric794.26 @ 1
factorysupplyoutlet.comEJ36FD925.961In StockLEESON925.96 @ 1
