Leeson Electric LM25135

B0773R5PRX

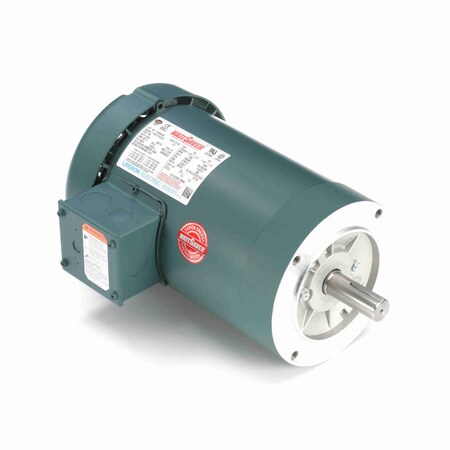

Leeson Electric, LM25135, .25HP, 1165RPM, 3PH, 230V;460V, 56C Frame, C-Face Flange, Foot Mount, TENV, Automotive Duty Motor

Leeson Electric, LM25135, .25HP, 1165RPM, 3PH, 230V;460V, 56C Frame, C-Face Flange, Foot Mount, TENV, Automotive Duty Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.SRN6H0.25TC61
Amperage Rating1.2/0.6 A
Amps1.2/0.60
Application TypeAutomotive Motors
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionSteel
Country of Origin (subj.United States
Current Rating1.2 ; 0.60 A
Description:Obsolete once inventory.
Dimensions10.94 in L x 6.5 in W x.
Drive End Bearing Size203
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency72.0%, 72, 72 %
Efficiency %73.4 %
EnclosureTENV
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Family SeriesLeeson Motors, Automoti.
Frame56C
Frame MaterialRolled Steel
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower0.25 hp, 1/4 hp
Horsepower Rating0.25 hp
HP0.25, 1/4
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
Item NumberLM25135
KW0.19
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberLM25135
MaterialRolled Steel
Maximum Ambient Tempera.65? C
MFG Part #:LM25135
Model NumberSRN6H0.25TC61
Motor Shell Length7.06"
MountingRigid Base
Mounting TypeRigid Base, C-Face Foot.
NEMA Frame56C
Net Weight24 lbs
Nominal Voltage240 VAC, 277 VAC, 347 V.
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .203
Opp. Drive End Bearing .Ball
Overall Length10.94", 10.94 "
Phase3, 3 ph, 3 Phase
Product SeriesAutomotive Duty
Product TypeThree Phase
RotationReversible
RPM1,200 RPM, 1140, 1100 -.
Service Factor1, 1.0
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight24 lbs.
Special FeaturesService Factor - 1
Speed1140 rpm
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage230 VAC ; 460 VAC
Temperature Rating65 deg C
TypeSquirrel Cage Induction.
UPC Code691720105580
UPC:691720105580
Voltage230/460
Voltage (AC)230-460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comLM25135119.481In StockLeeson24.0119.48 @ 1
thumbzoomMRO Supply226784122.321In StockLeeson122.32 @ 1
thumbzoomGalcoLM25135-LEES132.111In StockLeeson24.0132.11 @ 1
kscdirect.comLEE LM25135144.661In StockLEESON ELECTRIC CORPORATION144.66 @ 1
us.rs-online.com72239024154.811In StockLeeson154.81 @ 1
thumbzoomWalker IndustrialLM25135165.131In Stock17Leeson165.13 @ 1
thumbzoomRaptor SuppliesAJ2WDV248.498641In StockLEESON248.49864 @ 1
AmazonTPB0773R5PRX663.821In Stock5Leeson Electric663.82 @ 1
thumbzoomZoroG1732069783.951In StockLeeson783.95 @ 1
thumbzoomcbtcompany.comLM25135999.81In StockLeeson Electric999.8 @ 1
factorysupplyoutlet.comQF23IW1166.261In StockLEESON1166.26 @ 1
