Leeson M1125280.00

B00BC895GO

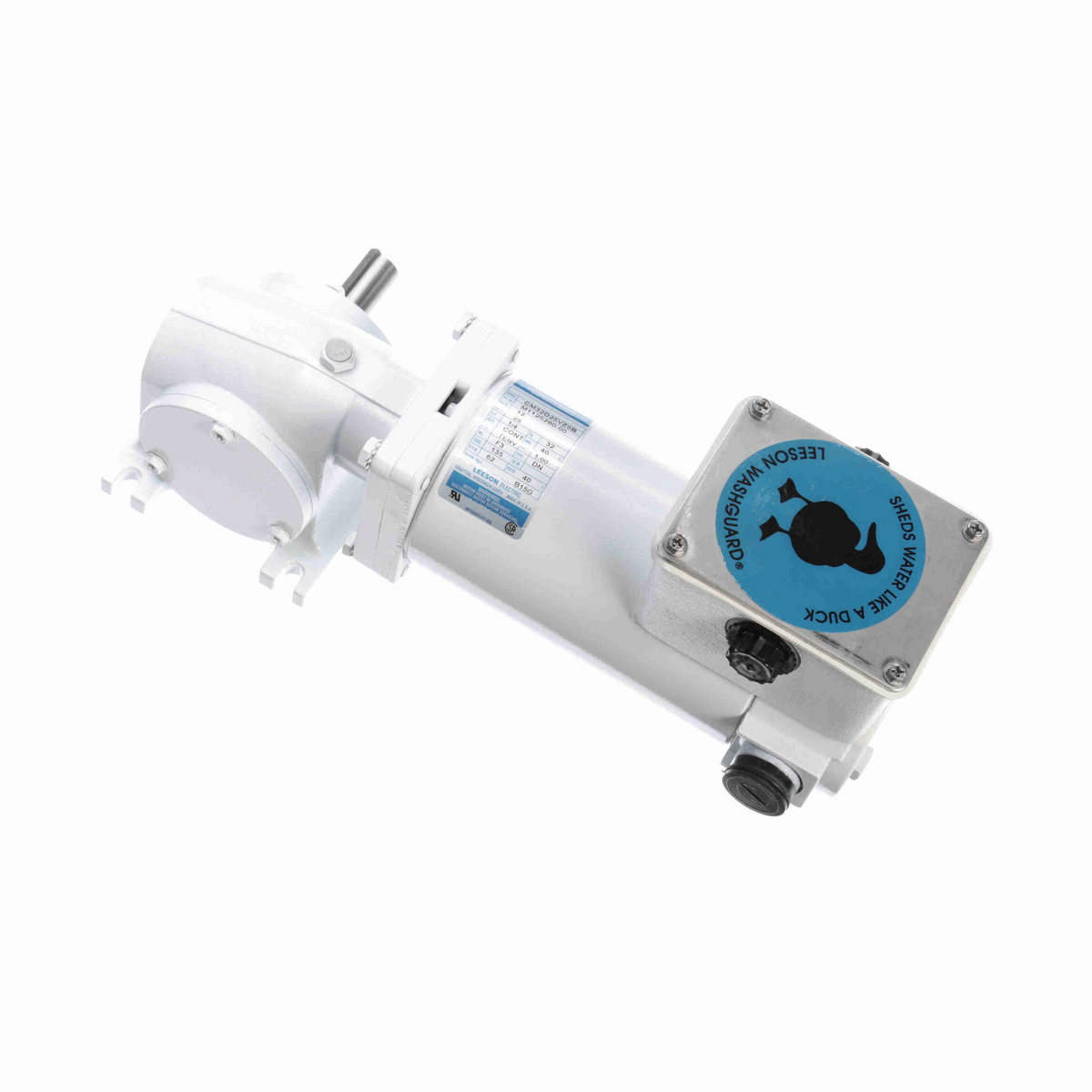

Leeson 13.RT ANGLE.1.3CD.40:1.62RPM.135LBIN.1/4HP.32.LEFT WASHGUARD.12V.DC.TENV.CM32D25VZ9B (M1125280.00)

Leeson 13.RT ANGLE.1.3CD.40:1.62RPM.135LBIN.1/4HP.32.LEFT WASHGUARD.12V.DC.TENV.CM32D25VZ9B (M1125280.00)zoom

Attributes

Key Value
Amps28
ApprovalsCSA, UL
Armature Current28 A
Armature Voltage12 V
Bearing TypeBall
CategoryElectric Motor
Country of Origin (subj.United States
Description:13.RT ANGLE.1.3CD.40:1..
Dimensions12.36 in L x 6.6 in H
Drive End Bearing Size6201
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency27.9, 27.9%
EnclosureIP55, TENV
Enclosure TypeTotally Enclosed Nonven.
Estimated Weight14.00
Family SeriesLeeson Motors, Washguar.
FinishWhite Epoxy Painted
Frame32
Full Load Amperage28 A
Gear Ratio40:1
Gear TypeWorm
Gross Weight0 lbs
Horsepower0.25 hp, 1/4 hp
Housing MaterialAluminum
HP0.25, 1/4
Insulation ClassF
Insulation TypeClass F
Item ConditionFACTORY NEW
Item NumberM1125280.00
KW0.19
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberM1125280.00
Max RPM62 RPM
Maximum Ambient Tempera.40? C
Maximum Speed62 RPM
MFG Part #:M1125280.00
Model NumberM32D25VZ9
Motor Shell Length5.44"
MountingSpecial
mountingSpecial
Mounting TypeSpecial
Net Weight14 lbs
Opp. Drive End Bearing .6201
Opp. Drive End Bearing .Ball
Output Speed62
Overall Length12.36", 12.36 "
Overhung Load235 lb
Part NumberM1125280.00
PhaseC, DC
Product SeriesWashguard
Product TypeDC
RotationReversible
Rotation TypeReversible
RPM62
Service Factor1.0
Shaft Diameter0.625", 0.625, 0.63 in
Shaft Length1.8", 1.8, 1-1/2 in
Ship Weight14 lbs.
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
TypeRight Angle
UPC:691720346211
Voltage12, 12VDC
Volts12, 12VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply227431260.991In StockLeeson260.99 @ 1
thumbzoomemotorpro.comM1125280.00276.071In StockLeeson14.0276.07 @ 1
thumbzoomGalcoM1125280.00-LEES285.351In StockLeeson14.0285.35 @ 1
kscdirect.comLEE M1125280.00312.461In StockLEESON ELECTRIC CORPORATION312.46 @ 1
thumbzoommotorsandcontrol.comLE-M1125280.00314.721In StockLeeson Electric14.0314.72 @ 1
us.rs-online.com72637878329.251In StockLeeson329.25 @ 1
thumbzoomWalker IndustrialM1125280-00356.681In Stock10Leeson356.68 @ 1
thumbzoomNational Supply NetworkB234687397.273In StockLEESON ELECTRIC397.27 @ 3
cbtcompany.comM1125280.00425.771In StockLeeson Electric425.77 @ 1
thumbzoomelectricmotorwholesale.comM1125280439.01In StockLEESON439.0 @ 1
thumbzoomZoroG2483683442.531In Stock10Leeson442.53 @ 1
thumbzoomDealers ElectricM1125280.00535.911In StockLeeson14.0535.91 @ 1
AmazonTPB00BC895GO545.741In Stock5Leeson545.74 @ 1
factorysupplyoutlet.comMG85ZL974.231In StockLEESON974.23 @ 1
