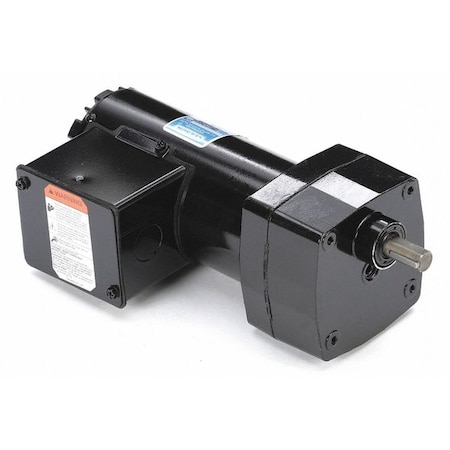

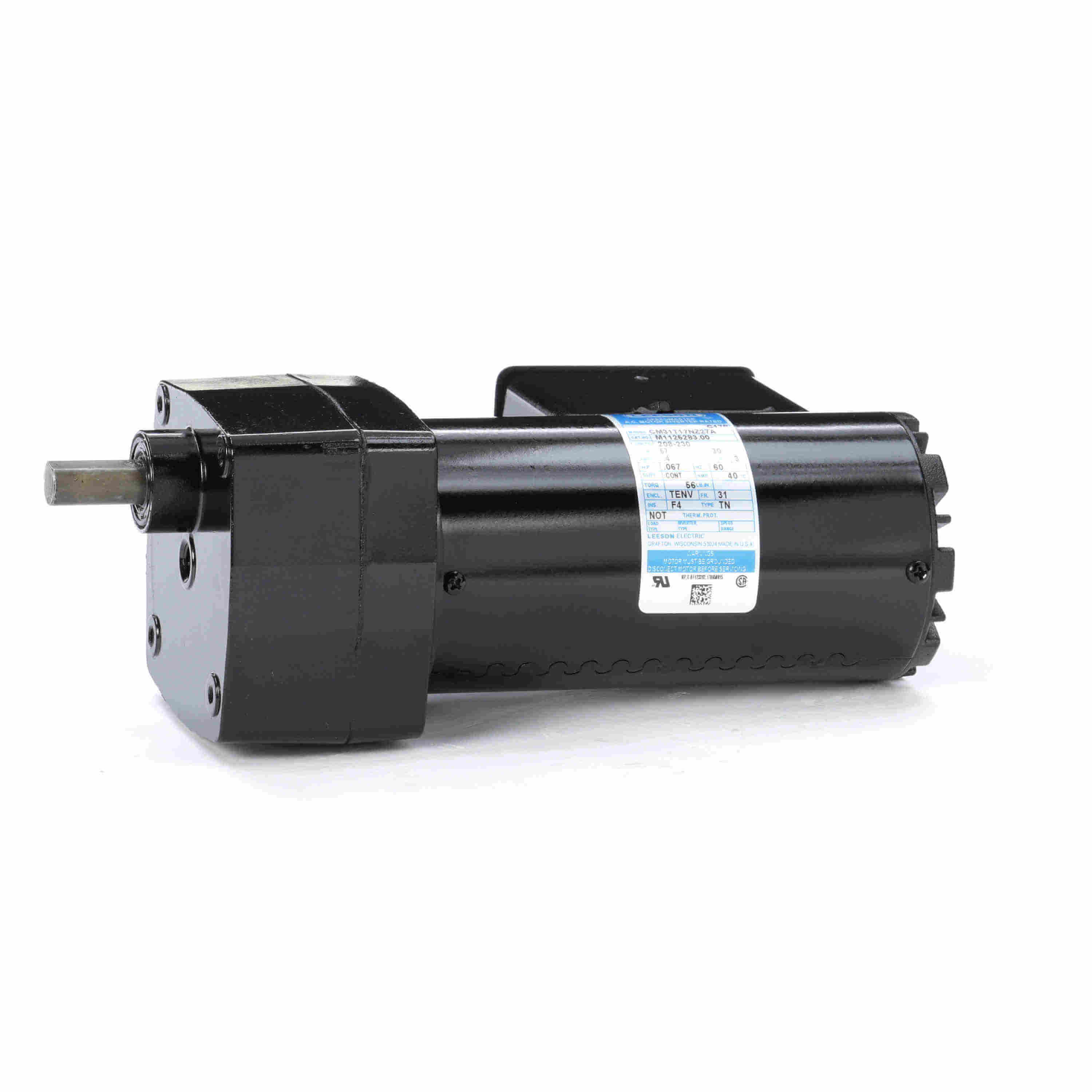

Leeson M1125283.00 Ac Gearmotor,inverter Duty,rpm 57

Leeson M1125283.00 Ac Gearmotor,inverter Duty,rpm 57zoom

Attributes

Key Value
Amps0.4
Bearing TypeBall
CategoryElectric Motor
Description:PZ...30:1.57RPM.56LBIN..
Dimension AA0.88 in
Dimension AB3.43 in
Dimension C10.83 in
Dimension N1.56 in
Dimension S0.25 in
Dimension U1/2 in
Dimension X2.43 in
Dimensions10.03 in L x 5.3 in W x.
Drive End Bearing Size6000
Drive End Bearing TypeBall
Duty CycleContinuous
EnclosureTENV
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight10.00
FinishBlack Enamel Painted
Frame31
Frequency60
Frequency Rating60/50 Hz
Full Load Amperage0.4 A
Gear Ratio30:1
Gear TypeHelical/Spur
Gearmotor Phase3
Gearmotor Shaft Orienta.Parallel
Gearmotor Shaft TypeSingle
Gearmotor TypeAC Gearmotor
Gearmotor Voltage208-230V AC
Height (Dimension O)3.75 in
Horsepower0.07 hp
HP0.067, 0.07, 1/14
Hz60
Insulation ClassF
Insulation TypeClass F
ItemAC Gearmotor
Item ConditionFACTORY NEW
Keyway Size1/4" Square x 3/4"
Keyway Size Type1/4 sq in x 3/4 in
KW0.05
Length Less Shaft9 3/100 in
ManufacturerLeeson Electric, LEESON.
Max. Torque56.0 in-lb
Maximum Ambient Tempera.40? C
Maximum Speed57 rpm
MFG Part #:M1125283.00
Motor Shell Length5.75"
Motor TypePermanent Split Capacit.
MountingSpecial
mountingSpecial
Mounting TypeSpecial
Opp. Drive End Bearing .R6
Opp. Drive End Bearing .Ball
Output Shaft Diameter1/2 in
Output Shaft Length1 in
Output Speed57
Overall Height3.75 in
Overall Length10.83"
Overall Width5.3 in
Overhung Load155 lb
Part NumberM1125283.00
Phase3
Product TypeThree Phase
RotationReversible
Rotation TypeReversible
RPM57
SeriesPZ Series
Service Factor1.0
Shaft Dia. (Dimension U)1/2 in
Shaft Diameter0.500", 0.500
Shaft Length1, 1"
Shaft Length (Dimension.1 in
Ship Weight10 lbs.
Supplier:LEESON ELECTRIC CORPORA.
TypeParallel Shaft
UPC:691720100332
Voltage208-230, 208VAC, 230VAC
Volts208-230, 208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comM1125283337.01In StockLEESON337.0 @ 1
AmazonTPB00BC89WU8439.791In Stock5Leeson / Regal Beloit439.79 @ 1
thumbzoomapexindustrialautomation.comM1125283.00588.9218Leeson588.92 @ 1
thumbzoomZoroG0287463615.9911Leeson10.99615.99 @ 1
thumbzoomDealers ElectricM1125283.00708.181In StockLeeson19.0708.18 @ 1
thumbzoomMRO Supply227434709.921In StockLeeson709.92 @ 1
factorysupplyoutlet.comLU16JR733.821In StockLEESON733.82 @ 1
us.rs-online.com72637702763.331In StockLeeson763.33 @ 1
thumbzoommotorsandcontrol.comLE-M1125283.00777.881In StockLeeson Electric10.0777.88 @ 1
thumbzoomemotorpro.comM1125283.00787.841In StockLeeson10.0787.84 @ 1
kscdirect.comLEE M1125283.00812.941In StockLEESON ELECTRIC CORPORATION812.94 @ 1
thumbzoomNational Supply NetworkB234742815.112In StockLEESON ELECTRIC815.11 @ 2
cbtcompany.comM1125283.00861.761In StockLeeson Electric861.76 @ 1
thumbzoomWalker IndustrialM1125283-00881.61In Stock10Leeson881.6 @ 1
thumbzoompumpproducts.comM1125283.001055.231In StockLeeson1055.23 @ 1
thumbzoomRaptor SuppliesAE9BTC1292.33818351In StockLEESON1292.3381835 @ 1
