Leviton 2320-IG

B002E8JITK

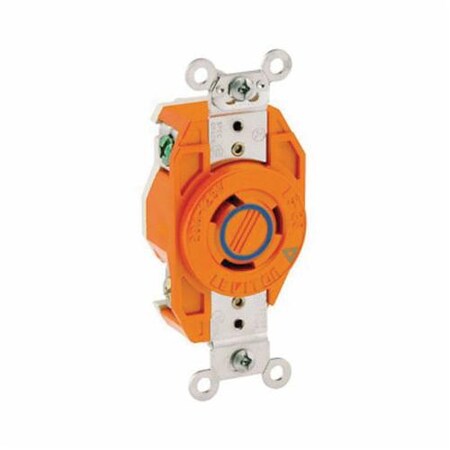

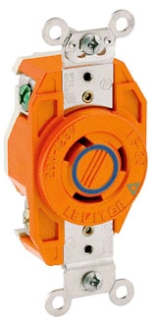

Leviton 2320-IG 20 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX, Orange

Leviton 2320-IG 20 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX, Orangezoom

Attributes

Key Value
(2P) Double PolePole
07847780121UPC
20 AmpAmperage
20A-250VAmp Rating
2320-IGStock Code
250 VoltVoltage (V)
3Wire Number
Amperage Rating20A, 20 A, 20 Amp
Amperage Rating:20 A
Amps20
Brand NameLeviton
CategoryElectrical Receptacles
ColorOrange
Color FamilyOrange
Color:Orange
Condition:New
Conductor Size14-8 AWG
Connection:Back Wired;Side Wired
Contact Material0.04 Inch Brass
Contact TypeSocket
Country of OriginMX - Mexico, MX
Country Of OriginMexico
Country of Origin (subj.Mexico
Current Rating20 A
Degree of ProtectionNo
Description:OR REC LOCK 2PO 3WI NEM.
Dielectric Strength2000 Volt
Dielectric Strength:2000 (Min.) V
Dimensions3.63 in H x 1.69 in W x.
ECCNEAR99
Energy Star FlagNo
Environmental ConditionsV0 Flammability Rated P.
Environmental Condition.Flammability (Rated V-2.
Fiber TypeNo
FinishNo
For additional options .Notes
GradeIndustrial, Commercial
GroundingIsolated Grounding
GTIN00078477801215
Horsepower2 hp
Housing FinishOrange
Item NameSingle Locking Receptac.
Jacket MaterialNo
L6-20RNEMA
LevitonBrand
Lifetime WarrantyWarranty
Locking Wiring DevicesFamily
ManufacturerLeviton, Leviton Manufa.
Manufacturer NameLeviton
Manufacturer Part Number2320-IG
MaterialPBT, Valox, Valox? 357 .
Material:PBT
Maximum Load Capacity2 hp
MFG Part #:2320-IG
MountingFlush
Mounting TypeTabs
Mounting:Box
NEMA ConfigurationNEMA L6-20R, L6-20R
NEMA RatingNEMA L6-20R
NEMA Rating:L6-20R
NEMA TypeL6-20R
No. of Poles2
No. of Wires3
Number of Contacts3
Number of Poles2
Number Of Poles:2
Number of Wires3.0000, 3
Number Of Wires:3
OrangeColor
Primary TypeTwist Lock
RoHS FlagContact manufacturer
Series2300 Series
Size:3.63 H x 1.69 W x 1.31 .
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
StandardsUL 498 Listed, UL Feder.
Strap MaterialNickel Plated Brass
StyleSingle
Sub BrandV-O-Max?
Sub Brand:V-0-Max
Supplier:Leviton
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal ConnectionBack and Side Wired
Terminal TypeBack/Side Wire
TerminationScrew
TypeImpact-Resistant, Chemi.
Type:Flush Mount Locking Rec.
UL CSA NOMUL Listed
UNSPSC39121406
UPC07847780121, 0784778012.
UPC Code078477801215
UPC:078477801215
Voltage Rating250 VAC, 250 Volt, 250 V
Voltage Rating:250 V
Volts AC240
Wire Size8-14 AWG
Wire Size:14-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Monarch Electric875314.981In StockLeviton14.98 @ 1
thumbzoomZoroG383437321.341In Stock47Leviton21.34 @ 1
thumbzoomgordonelectricsupply.com2320-IG24.071In Stock755LEVITON24.07 @ 1
Dale-Electric2320-IG25.91In StockLeviton Manufacturing25.9 @ 1
thumbzoomemisupply.comLEV-2320-IG31.921In StockLeviton31.92 @ 1
thumbzoomimprovedepot.com86525132.991In StockLeviton32.99 @ 1
thumbzoomelectricalparts.com2320-IG33.3219Leviton33.32 @ 1
kscdirect.comLEV 2320-IG33.481In StockLEVITON33.48 @ 1
us.rs-online.com7114739333.521In StockLeviton33.52 @ 1
alldataresource.com60822134.681In StockLeviton Manufacturing Co34.68 @ 1
thumbzoomPlatt.com017632335.711In StockLeviton35.71 @ 1
thumbzoomturtle.comLEV 2320-IG37.571In StockLeviton37.57 @ 1
thumbzoomButler Supply760839.12120LEVITON0.0139.12 @ 1
thumbzoomLighting Supply2320-IG41.641In StockLeviton41.64 @ 1
Graybar9211708348.26081In StockLeviton48.2608 @ 1
thumbzoomGuardian7436510769.281In StockLeviton69.28 @ 1
thumbzoombulbspro.com2320-IG70.31In StockLeviton70.3 @ 1
thumbzoombscsource.com2320IG72.491In StockLeviton72.49 @ 1
thumbzoomNational Supply Network7436510792.851In StockLeviton92.85 @ 1
