Leviton 5015-W

mpn5015-W
brandname: Leviton
manufacturername: Leviton

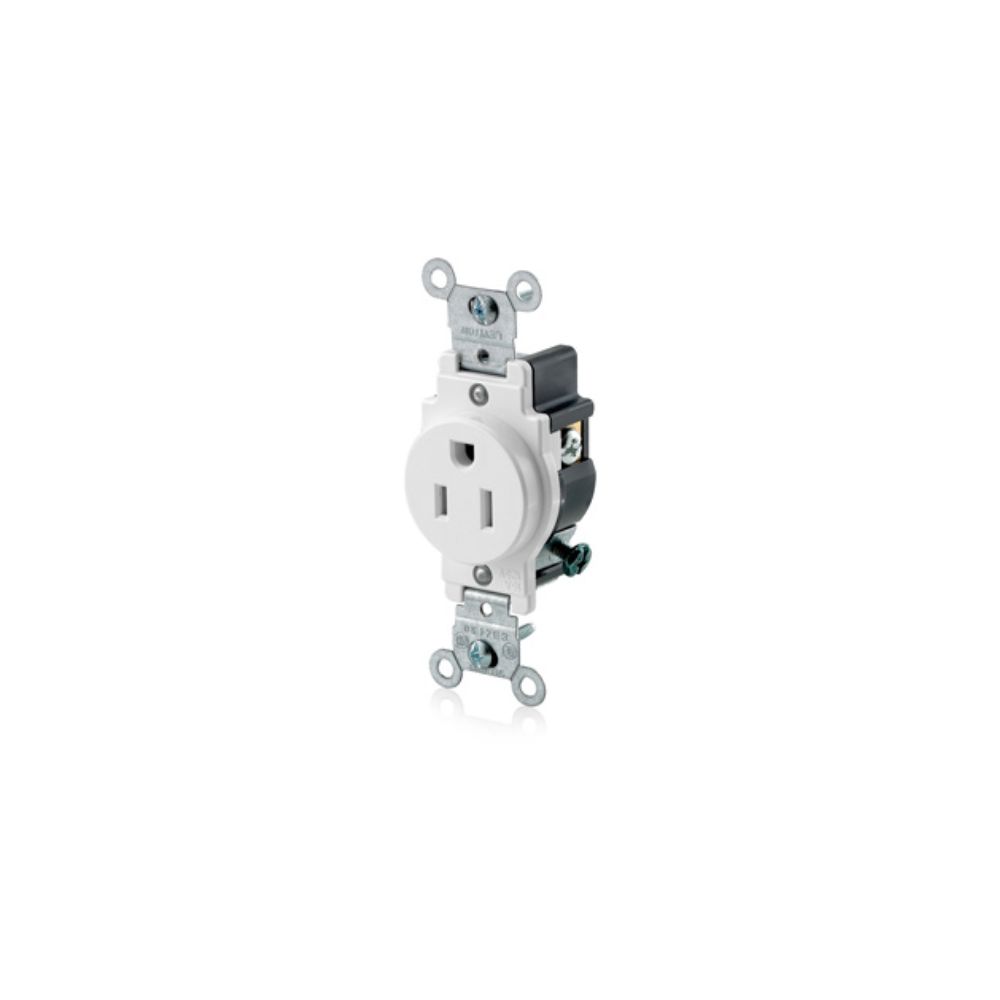

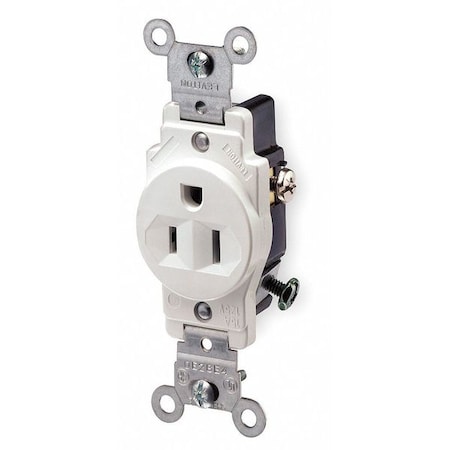

Leviton 5015-W 15 Amp, 125 Volt, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding, White

Brand: Leviton
PartNumber: 5015-W
Model: 5015-W
Color: Image
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Leviton
Label: Leviton

Attributes

Key	Value
07847720605	UPC
10 Year Limited	Warranty
125 Volt	Voltage (V)
14-10 AWG	Wire Gauge
15 Amp	Amperage
15A-125V	Amp Rating
3	Wire Number
3W, 2P	Pole
5-15R	NEMA
5015-W	Stock Code
AMP	15
Amperage Rating	15A, 15 A, 15 Amp
Amperage Rating:	15 A
Amps	15
Amps - Plugs and Recept.	15 A
ANSI / UL / CSA / NOM L.	UL Listed
Application Environment	Commercial
Brand	Leviton
Brand Name	Leviton
Category	Electrical Receptacles
Color	White
Color - Plugs and Recep.	White
Color Family	White
Color Finish Category	Whites
Color Finish Name	White
Color:	White
Condition:	New
Conductor Size	14-10 AWG
Connection:	Side Wired
Contact Material	0.031 Inch Double-Wipe .
Contact Type	Socket
Country of Origin	US - United States, MX
Country Of Origin	Mexico
CSA Certified	Yes
Current Rating	15 A
Current Stock	397
Degree of Protection	No
Description	Smooth Face
Description:	WH REC SGL 2P3W 15A125V
Dielectric Strength	2000 Volt
Dielectric Strength:	2000 (Min.) V
Dimensions	4.06 in H x 1.38 in W x.
ECCN	EAR99
Enclosure	NEMA WD-2/WD-6
Energy Star Flag	No
Environmental Conditions	V2 Flammability Rated P.
Environmental Condition.	Flammability (Rated V-2.
Face Plate Height	2.36 in
Fiber Type	No
Finish	No
For additional options .	Notes
Grade	Commercial
Ground	Grounded
Grounding	Grounding
GTIN	00078477206058
Horsepower	1/2 hp
HP	1/2 hp
International Shipping	No
Item - Plugs and Recept.	Single Receptacle Outlet
Item Name	Straight Blade Single R.
Jacket Material	No
Lead Time	Expected to ship in 1-2.
Leviton	Brand
Manufacturer	Leviton Manufacturing, .
Manufacturer Name	Leviton
Manufacturer Part Number	5015-W
Material	Plastic, Nylon, Nylon B.
Material Type	Nylon
Material:	Nylon
Maximum Load Capacity	1/2 hp
Maximum Wire Size	10 AWG
MFG Part #:	5015-W
Minimum Wire Size	14 AWG
Mount Hole Center-to-Ce.	3.28 in
Mounting Type	Tabs
Mounting:	Wall Box
Mpn	5015-W
NEMA	NEMA 15R, NEMA 5
NEMA Configuration	NEMA 5-15R, 5-15, 5-15R
NEMA Rating	NEMA 5-15R
NEMA Rating:	5-15R
NEMA Receptacle Configu.	5-15R
NEMA Type	5-15R
No. of Poles	2
No. of Wires	3
Number of Poles	2
Number Of Poles:	2
Number of Wires	3.0000, 3
Number Of Wires:	3
Outlet Type - Plugs and.	Single
Overall Depth	0.82 in
Phase	Single
Phase:	1
Primary Type	Straight Blade
RoHS Flag	Contact manufacturer
Size:	46 H x 1.38 W x 16 D IN
SKU	ZO-G904836580
Standard Pack:	Order QTY must be in mu.
Standard Receptacles	Family
Standard:	NEMA (WD-2 and WD-6);AN.
Standards	UL 498 E13399 Listed, U.
Strap Material	Zinc Plated Steel
Style	Single
Sub-Category	Single Receptacles
SubCategory	Electrical
Supplier:	Leviton
Temperature Rating	-40 to 60 deg C
Temperature Rating:	-40 to +60 DEG C
Terminal Connection	Side Wired
Terminal Type	Side Wire
Termination	Screw
Type	Heavy Duty Grounding Na.
Type:	Straight Blade;Single O.
UL Listed	Yes
UNSPSC	39121406
UPC	07847720605, 0784772060.
UPC:	078477206058
Voltage	125 VAC
Voltage - Plugs and Rec.	125VAC
Voltage Rating	125 VAC, 125 Volt
Voltage Rating:	125 V
Volts	125V
Volts AC	120
White	Color
Wire Size	10-14 AWG
Wire Size:	14-10 AWG
Wiring Method	Side
Wiring Method - Plugs a.	Side

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Monarch Electric	3487	1.98	1	50	Leviton		1.98 @ 1
westsidewholesale.com	5015-W	1.99	1	50	Leviton		1.99 @ 1
steinerelectric.com	8014	2.21	1	50	Leviton		2.21 @ 1
standardplumbing.com	5015-W	3.0	1	33	LEVITON MANUFACTURING CO		3.0 @ 1
acandb.com	5015W	3.18	1	33	LEVITON INC-LEVITON		3.18 @ 1
emisupply.com	LEV-5015-W	3.31	1	30	Leviton		3.31 @ 1
Zoro	G904836580	3.39	1	400	Leviton	0.1	3.39 @ 1
kscdirect.com	LEV 5015-W	3.52	1	33	LEVITON		3.52 @ 1
standardelectricsupply.com	2353417	3.62	1	33	LEVITON		3.62 @ 1
turtle.com	LEV 5015-W	3.82	1	33	Leviton		3.82 @ 1
electricalparts.com	5015-W	3.8304	1	299	Leviton		3.8304 @ 1
ferguson.com	2342834	3.9	1	30	LEVITON		3.9 @ 1
Onlinecomponents.com	5015-W	3.92	10	50	Leviton		3.92 @ 10
Dale-Electric	5015-W	3.99	1	5	Leviton Manufacturing		3.99 @ 1
Graybar	88156496	4.2448	1	30	Leviton		4.2448 @ 1
Platt.com	0034714	4.34	1	858	Leviton		4.34 @ 1
improvedepot.com	863367	4.49	1	33	Leviton		4.49 @ 1
Radwell	5015-W	5.0	100	4	LEVITON		5.0 @ 100
alldataresource.com	759198	5.15	1	In Stock	Leviton Manufacturing Co		5.15 @ 1
us.rs-online.com	72374890	5.38	1	33	Leviton		5.38 @ 1
simsupply.com	ZO-G904836580	10.34	1	397	Leviton		10.34 @ 1
bulbspro.com	5015-W	11.02	1	33	Leviton		11.02 @ 1
