Leviton 8300-IGG

B00332F0Y8

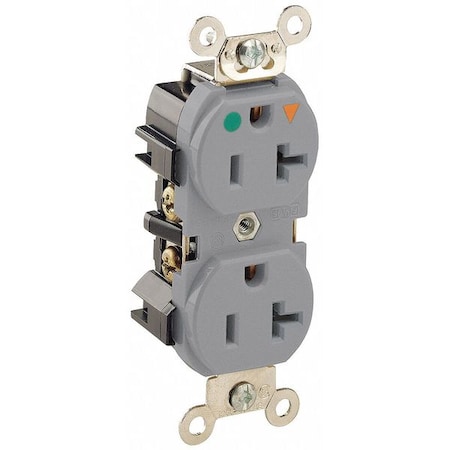

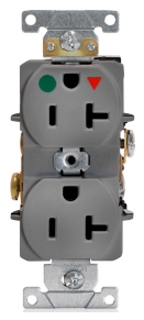

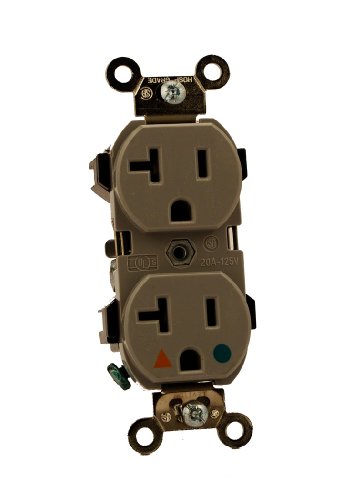

Leviton 8300-IGG 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Duplex Receptacle, Straight Blade, Hospital Grade, Isolated Ground, Nickel Plated Brass Strap, Gray

Leviton 8300-IGG 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Duplex Receptacle, Straight Blade, Hospital Grade, Isolated Ground, Nickel Plated Brass Strap, Grayzoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847703644UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-IGGStock Code
Additional Electrical P.Isolated Ground
Additional Electrical P.Isolated Ground
Amperage Rating20 A
Amps20
Amps - Plugs and Recept.20 A
Application EnvironmentHeavy-Duty Hospital Gra.
ColorGray
Color - Plugs and Recep.Gray
Connection OrientationStraight
Contact MaterialBrass
Country of Origin (subj.Mexico
Cover TypeNo Cover
Current Rating20 A
DescriptionSmooth Face
Description:GY HD HG DUPLEX RECEPT .
Dimensions46 in H x 1.55 in W x 1.
Face Plate Height2.75 in
Face Plate Width1.31 in
For additional options .Notes
GFCINo
GradeHospital Grade Fed. Spe.
GrayColor
GroundingIsolated Grounding
Hazardous Location Spec.Not Applicable
Horsepower1 hp
Horsepower Rating1 hp
Housing ColorGray
Housing MaterialNylon
HP1 hp
Includes Mounting Hardw.Yes
Isolated GroundingYes
ItemReceptacle
Item - Plugs and Recept.Duplex Receptacle Outlet
Key Resistance Properti.Standard Resistance
LevitonBrand
ManufacturerLEVITON
MaterialNylon (Body and Face), .
Maximum Operating Tempe.60 Degrees C
Maximum Wire Size10 AWG
MFG Part #:8300-IGG
Minimum Operating Tempe.-40 Degrees C
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mount TypeFlush
NEMA Configuration5-20R
NEMA Enclosure RatingNot Rated
NEMA RatingNEMA 5-20R
NEMA Receptacle Configu.5-20R
NEMA Receptacle Configu.5-20R
Number of Outlets2
Number of Poles2
Number of Poles & Wires2 Pole / 3 Wire
Number of Wires3
NylonMaterial
Outlet Type - Plugs and.Duplex
Overall Depth1.11 in
PolarizedYes
Receptacle TypeDuplex
Resistance PropertiesNot Applicable
Standard Duplex OutletsFamily
Standard Pack:Order QTY must be in mu.
StandardsANSI C73, CSA C22.2 No..
Sub-CategoryDuplex Receptacles
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeIsolated Ground, Hospit.
UL / CSA ListedUL Listed
UL 94 Flammability Rati.V-2
UPC:078477036440
Voltage125
Voltage - Plugs and Rec.125VAC
Voltage Rating125V AC, 125 VAC
Volts AC120
Wire Connection TypeScrew Terminals
Wire Connection TypesScrew Terminals
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialB38458918.01In StockLeviton18.0 @ 1
kscdirect.comLEV 8300-IGG20.291In StockLEVITON20.29 @ 1
thumbzoomgordonelectricsupply.com8300-IGG20.441In Stock755LEVITON20.44 @ 1
thumbzoomimprovedepot.com86818722.991In StockLeviton22.99 @ 1
thumbzoomturtle.comLEV 8300-IGG27.121In StockLeviton27.12 @ 1
thumbzoomZoroG80439323728.8450In Stock26Leviton2.228.84 @ 50
thumbzoomPlatt.com047946832.081In StockLeviton32.08 @ 1
thumbzoomRadwell8300-IGG34.050In StockLEVITON34.0 @ 50
thumbzoomLighting Supply8300-IGG39.911In StockLeviton39.91 @ 1
thumbzoombulbspro.com8300-IGG42.541In StockLeviton42.54 @ 1
us.rs-online.com7237732145.6450In StockLeviton45.64 @ 50
