Leviton 8300-IGI

B007IC4Y6Y

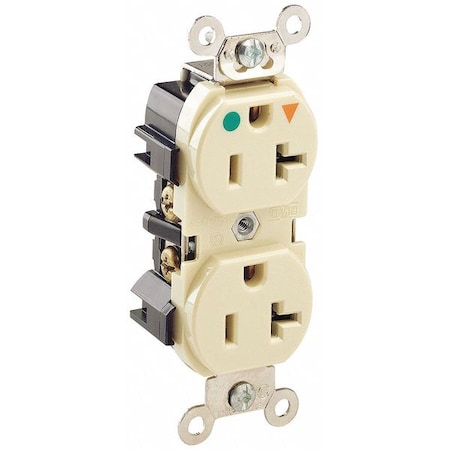

Leviton 8300-IGI Narrow Body Duplex Receptacle, Straight Blade, Hospital Grade, Isolated Ground, 10-Pack, Ivory, 10 Piece

Leviton 8300-IGI Narrow Body Duplex Receptacle, Straight Blade, Hospital Grade, Isolated Ground, 10-Pack, Ivory, 10 Piecezoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847705735UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-IGIStock Code
Amperage Rating20A, 20 A
Amperage Rating:20 A
Amps20
Amps - Plugs and Recept.20 A
Application EnvironmentHeavy-Duty Hospital Gra.
CategoryElectrical Receptacles
ColorIvory
Color - Plugs and Recep.Ivory
Color FamilyIvory
Color:Ivory
Connection:Back and Side Wired
Country of OriginMX - Mexico, MX
DescriptionSmooth Face
Description:IV HD HG DUPLEX RECEPT .
Dielectric Strength:2000 (Min.) V
Dimensions4.06 in H x 1.55 in W x.
ECCNEAR99
EnclosureNEMA WD-1/WD-6
Environmental Condition.Flammability (Rated V-2.
Face Plate Height2.75 in
Face Plate Width1.31 in
For additional options .Notes
GradeHospital
Horsepower1 hp
HP1 hp
ItemReceptacle
Item - Plugs and Recept.Duplex Receptacle Outlet
IvoryColor
LevitonBrand
ManufacturerLeviton Manufacturing, .
MaterialThermoplastic
Material:Thermoplastic
Maximum Wire Size10 AWG
MFG Part #:8300-IGI
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mounting:Wall Box
NEMA Configuration5-20, 5-20R
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
NEMA Receptacle Configu.5-20R
No. of Poles2
No. of Wires3
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
Outlet Type - Plugs and.Duplex
Overall Depth1.11 in
PhaseSingle
Phase:1
Receptacle TypeStraight Blade
Size:46 H x 1.55 W x 1.12 D .
Standard Duplex OutletsFamily
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
StandardsANSI C73, cULus NOM-ANC.
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TypeIsolated Ground, Hospit.
Type:Straight Blade;Duplex O.
UL / CSA ListedUL Listed
UNSPSC39121406
UPC078477057353
UPC:078477057353
Voltage125, 125 VAC
Voltage - Plugs and Rec.125VAC
Voltage Rating250 VAC
Voltage Rating:250 V
Volts AC120
Wire Size:14-10 AWG
Wiring MethodBack, Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEV 8300-IGI20.291In StockLEVITON20.29 @ 1
thumbzoomimprovedepot.com86818822.991In StockLeviton22.99 @ 1
thumbzoomturtle.comLEV 8300-IGI27.121In StockLeviton27.12 @ 1
Graybar9987984427.20481In StockLeviton27.2048 @ 1
AmazonSCB003ATOM4S27.421In StockLeviton27.42 @ 1
Dale-Electric8300-IGI28.0316Leviton Manufacturing28.03 @ 1
thumbzoomPlatt.com047946632.081In StockLeviton32.08 @ 1
thumbzoomRadwell8300-IGI34.050In StockLEVITON34.0 @ 50
thumbzoomLighting Supply8300-IGI39.911In StockLeviton39.91 @ 1
thumbzoombulbspro.com8300-IGI42.541In StockLeviton42.54 @ 1
us.rs-online.com7237732245.6450In StockLeviton45.64 @ 50
thumbzoomNational Supply NetworkB384590288.272In StockLEVITON MFG CO., INC288.27 @ 2
thumbzoomZoroG6043932461164.550In StockLeviton2.471164.5 @ 50
