Leviton 8300-SGR

B000LEPIPW

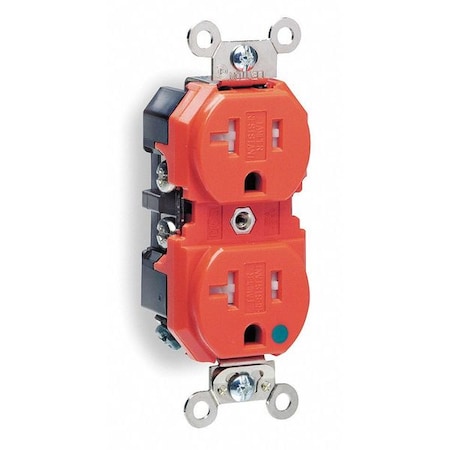

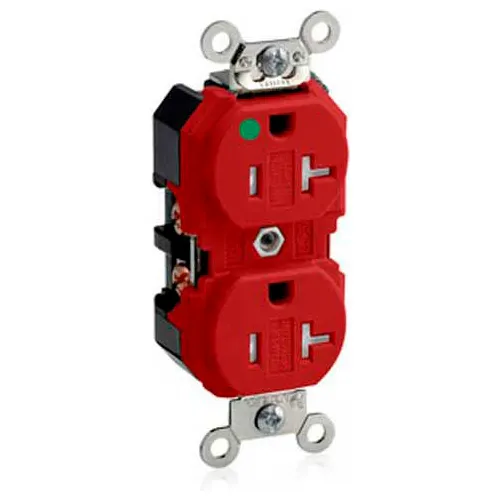

Leviton 8300-SGR 20 Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Duplex Receptacle, Tamper Resistant, Straight Blade, Self Grounding, Red

Leviton 8300-SGR 20 Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Duplex Receptacle, Tamper Resistant, Straight Blade, Self Grounding, Redzoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847705721UPC
10-Year LimitedWarranty
125 VoltVoltage (V)
20 AmpAmperage
20AAmp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
8300-SGRStock Code
Amperage Rating20A, 20 A
Amperage Rating:20 A
Amps20
Amps - Plugs and Recept.20 A
Application EnvironmentExtra Heavy-Duty Hospit.
BrandLEVITON
CategoryElectrical Receptacles
ColorRed
Color - Plugs and Recep.Red
Color FamilyRed
Color:Red
Connection:Back and Side Wired
Contact TypeSocket
Country of OriginMX - Mexico, MX
Current Rating20 A
Current Stock97
DescriptionSmooth Face
Description:RD REC DUPL TR NEW DESI.
Dielectric Strength:2000 (Min.) V
Dimensions46 in H x 1.51 in W x 1.
ECCNEAR99
Environmental Condition.Flammability (Rated V-2.
For additional options .Notes
GradeHospital, Extra Heavy D.
Horsepower1 hp
HP1 hp
International ShippingNo
ItemReceptacle
Item - Plugs and Recept.Duplex Receptacle Outlet
Lead TimeExpected to ship in 1-2.
LevitonBrand
ManufacturerLeviton Manufacturing, .
MaterialNylon, Nylon (Body and .
Material:Thermoplastic
Maximum Wire Size10 AWG
MFG Part #:8300-SGR
Minimum Wire Size14 AWG
Mounting TypeTabs
Mounting:Wall Box
Mpn8300-SGR
NEMA Configuration5-20, 5-20R
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
NEMA Receptacle Configu.5-20R
NEMA Type5-20R
No. of Poles2
No. of Wires3
Number of Contacts3
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
Outlet Type - Plugs and.Duplex
PhaseSingle
Phase:1
Primary TypeStraight Blade
ReceptaclesFamily
RedColor
SeriesSmartlockPro Series
Size:46 H x 1.51 W x 1.23 D .
SKUZO-G404836462
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
StandardsANSI C73, CSA C22.2 No..
Sub-CategoryDuplex Receptacles
SubCategoryElectrical
Supplier:LEVITON
Tamper ResistantYes
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TerminationScrew
TypeTamper-Resistant, Hospi.
Type:Straight Blade;Duplex O.
UL / CSA / RoHS ListedUL Listed
UNSPSC39121406
UPC078477057216, 078477057.
UPC Code078477057216
UPC:078477057216
Voltage125, 125 VAC
Voltage - Plugs and Rec.125VAC
Voltage Rating125 V, 125 VAC
Voltage Rating:125 V
Volts AC120
Wire Size10-14 AWG
Wire Size:14-10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
steinerelectric.com7220118.081In StockLeviton18.08 @ 1
kscdirect.comLEV 8300-SGR18.241In StockLEVITON18.24 @ 1
standardelectricsupply.com219690618.711In StockLEVITON18.71 @ 1
thumbzoomZoroG40483646218.791126Leviton13.2518.79 @ 1
thumbzoomLighting Supply8300-SGR18.911In StockLeviton18.91 @ 1
Onlinecomponents.com8300-SGR20.12In StockLeviton20.1 @ 2
thumbzoomgordonelectricsupply.com8300-SGR22.881In StockLEVITON22.88 @ 1
thumbzoomimprovedepot.com86819726.991In StockLeviton26.99 @ 1
thumbzoomsimsupply.comZO-G40483646227.1197Leviton27.1 @ 1
Graybar9986672327.3281In StockLeviton27.328 @ 1
alldataresource.com95561129.051In StockLeviton Manufacturing Co29.05 @ 1
thumbzoombulbspro.com8300-SGR30.241In StockLeviton30.24 @ 1
thumbzoomGlobal IndustrialWBB38467031.9510In StockLeviton31.95 @ 10
thumbzoomturtle.comLEV 8300-SGR32.191In StockLeviton32.19 @ 1
Dale-Electric8300-SGR33.261In StockLeviton Manufacturing33.26 @ 1
thumbzoomelectricalparts.com8300-SGR35.6721In StockLeviton35.672 @ 1
us.rs-online.com7114750636.3514Leviton36.35 @ 1
thumbzoomRadwell8300-SGR38.05012LEVITON38.0 @ 50
thumbzoomPlatt.com047946238.221In StockLeviton38.22 @ 1
thumbzoomNational Supply NetworkB384670340.112In StockLEVITON MFG CO., INC340.11 @ 2
