Leviton ODS0D-IDI

Leviton ODS0D-IDI

mpn:
ODS0D-IDI
brand:
Leviton
manufacturer:
Leviton
MPN:
ODS0D-IDI
Weight:
0.021875
Weight:
0.33289801562 LB
Preferred Price:
150.77
Price:
150.77
Min Simple Price:
82.39
Absolute Min Price:
116.99
Min Price:
116.99
Dimensions:
[5.0, 3.0, 2.0]
qty:
21
simpleSku:
NTQ3MA:::ODS0D-IDI
sku:
NTQ3MA::20:ODS0D-IDI@y0
condition:
11
seller:
Zoro
amzMan:
leviton
HazMat:
False
DropShip:
False

Attributes

Key ^Value
07847795409UPC
120/277 VoltVoltage (V)
5-Year LimitedWarranty
800W@120V INC 1200VA@120V 2700VA@277V FLRating
Angle180?
Ballast9999
Brand, Manufacturer, Supplier:Leviton
CategoryLighting Controls
Color - Motion Sensing and DimmingWhite
Color, Color FamilyIvory
Communication Method - Motion Sensing and DimmingHard Wired
Control OutputManual On/Automatic Off
Country of OriginMX - Mexico, MX
Coverage2100 sq-ft
Coverage (Degrees / Square Feet)180/2100
Coverage Angle - Motion Sensor180 Degrees
Coverage at Suggested Mounting Height2,100 sq ft
Current Stock4
Description/Special FeaturesBeep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens
Description:IV PIR MOTION SENS 180D 120/277VAC
Dimensions46 in H x 1.75 in W x 1.83 in D
ECCNEAR99
Environmental Conditions:Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
For additional options and special quantity discounts, please contact our sales department 1-(855)-296-9508 x 101 or send email to cs@bulbspro.comNotes
Frequency Rating:, Response Frequency50/60 Hz
IncludesPhotocell
Installation Location - Motion SensorWall Switch Box
Installation TypeWall Mount
International ShippingNo
Item, Item - Motion Sensing and DimmingOccupancy Sensor
IvoryColor
Lamp TypeFluorescent/Incandescent
LevitonBrand
Lighting Sensor Type, Sensing TechnologyPassive Infrared
Lighting TechnologyFluorescent, Incandescent
ManufacturerLeviton Manufacturing
Max. Capacity @ 120VAC1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent)
Max. Capacity @ 277VAC2700V (Primary Relay Fluorescent)
MFG Part #:, MpnODS0D-IDI
MountingSwitch
Mounting Type, Mounting:Wall
Occupancy & Vacancy SensorsFamily
Occupancy SensorType
ODS0D-IDIStock Code
Operating Voltage - Motion Sensing and Dimming120/230/277 V AC
Power Consumption:110 @ 120V;277 @ 270V
Power Rating110/270 mW
Sensor TypePIR
Single-Pole, Dual RelaySwitch Type:
Size:46 H x 1.75 W x 1.83 D IN
SKUZO-G304836661
Standard Pack:Order QTY must be in multiples of 10
Standard:cULus Listed;CEC Title 24 Compliant FCC Compliant
StandardscUL/US Certified, FCC Compliant, Title 24, Part 6
Sub Brand:Decora
SubCategoryLighting
Supply Voltage:, Voltage Rating120/230/277 VAC
Switch Type1-Pole, 2-Relay
Temperature Rating0 to 50 deg C
Time Delay30 s to 30 min
Time Delay - Motion Sensor30 sec to 30 min
Time Delay Adjustment Method - Motion SensorAdaptive, Adjustable
Time Delay TypeManual
Timer Range30 Seconds to 30 Minutes
Type1-Pole Dual Relay
Type:Occupancy Sensor;Single-Pole Switch;Dual Relay
UL / cUL ListedUL Listed
UNSPSC45111808
UPC, UPC:078477954096
Viewing Angle180 deg
Volts AC120/277
Wall SwitchMounting

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomZoroG30483666182.3982.3918Leviton0.3582.39 @ Qty: 1+
AmazonTPB002NU6M2095.495.41In Stock2Leviton95.4 @ Qty: 1+
thumbzoomsimsupply.comZO-G30483666195.6895.6814Leviton95.68 @ Qty: 1+
AmazonB002NU6M2098.3898.381In StockLeviton98.38 @ Qty: 1+
kscdirect.comLEV ODS0D-IDI104.54104.541In StockLEVITON104.54 @ Qty: 1+
thumbzoomelectricalparts.comODS0D-IDI106.2768106.276815Leviton106.2768 @ Qty: 1+
thumbzoomPlatt.com0442951108.44108.44115Leviton108.44 @ Qty: 1+
Dale-ElectricODS0D-IDI110.58110.581In StockLeviton Manufacturing110.58 @ Qty: 1+
thumbzoomgordonelectricsupply.comODS0D-IDI110.79110.791In Stock755LEVITON110.79 @ Qty: 1+
thumbzoomLighting SupplyODS0D-IDI114.97114.971In StockLeviton114.97 @ Qty: 1+
thumbzoomNational Supply NetworkB455364134.39295.6584In StockLEVITON MFG CO., INC134.39 @ Qty: 4+
thumbzoomimprovedepot.com164017136.49136.491In StockLeviton136.49 @ Qty: 1+
thumbzoomRadwellODS0D-IDI140.0644.0102LEVITON140.0 @ Qty: 10+
Graybar99554501142.912142.9121In StockLeviton142.912 @ Qty: 1+
us.rs-online.com72405144180.01828.04610In StockLeviton180.01 @ Qty: 10+
thumbzoombulbspro.comODS0D-IDI225.6225.61In StockLeviton225.6 @ Qty: 1+
B002NU6M20
98.51 USD
Leviton ODS0D-IDI

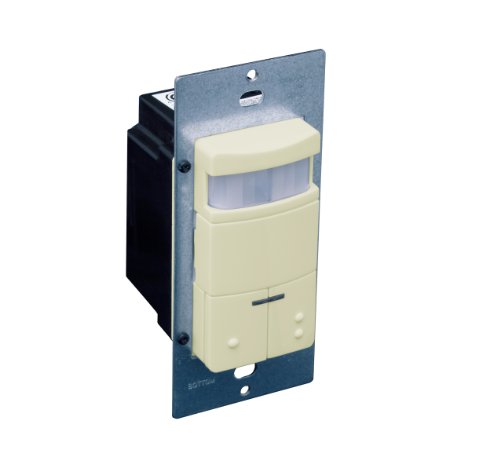

Leviton ODS0D-IDI IV PIR MOTION SENS 180D 120/277VAC

Leviton ODS0D-IDI IV PIR MOTION SENS 180D 120/277VACzoom
