Leviton T8280-W

B003KYS57I

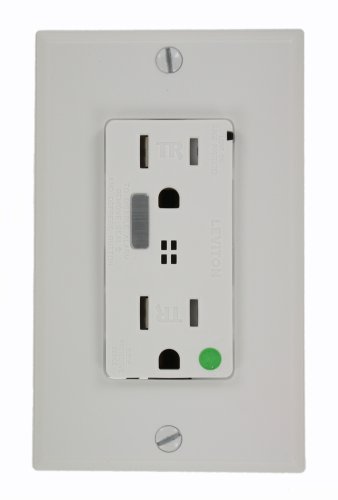

Leviton T8280-W 15 Amp, 125 Volt, Hospital Ground, Self Grounding, Decora Plus Duplex Surge Suppressor Receptacle, Tamper-Resistant, Straight Blade, White

Leviton T8280-W 15 Amp, 125 Volt, Hospital Ground, Self Grounding, Decora Plus Duplex Surge Suppressor Receptacle, Tamper-Resistant, Straight Blade, Whitezoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847743478UPC
10-Year LimitedWarranty
125VVoltage (V)
15AAmperage, Amp Rating
3Wire Number
5-15RNEMA
60?CStart Temp. (Max)
Amperage15 A
Amperage Rating15 A, 15
Amperage Rating:15 A
Amps15
ApplicationCommercial
Body MaterialPolycarbonate
BrandLeviton
Catalog NumberT8280-W
CategorySurge Suppressers
ColorWhite
Condition:New
ConnectionBack Wired;Side Wired, .
Connection:Back Wired;Side Wired
Country of OriginMX, Mexico
Current LimitingFull Rated Current
Description:WH TR DEC REC TVSS 15A1.
DiagnosticsIndicator Light & Audib.
Dielectric VoltageWithstands 2000V per UL.
Environmental Conditions-40 to 60 deg C Operati.
Environmental Condition.Flammability (Rated UL .
For additional options .Notes
FunctionSurge Protective
Ground ClipsBrass-Plated Steel
GroundingSelf-Grounding
GTIN#078477434789
Item TypeType 3 SPD
LevitonBrand
Made in USANo
ManufacturerLeviton, Leviton Manufa.
Manufacturer Part NumberT8280-W
MaterialPolycarbonate
Material:Polycarbonate
Maximum Surge Current, .27kA (L-N:18kA, L-G:9kA)
MFG Part #:T8280-W
MountingBox, Surface
Mounting:Box
NEMAWD-6
NEMA Configuration5-15R, WD-6
Noise Rejection-30dB at 500kHz-30MHz
Nominal Discharge Curre.3kA
Operating Temperature-40?C to 60?C, -40 to +.
Operating Temperature:-40 to +60 DEG C
OutletDuplex
Outlet:Duplex
Pole2
PolycarbonateMaterial
Screw Terminal Torque14-18 in-lbs
Short Circuit Current R.5kA, 5 kA
Short Circuit Rating5 KAMP
Short Circuit Rating:5 KAMP
Shutter MechanismDelrin? Acetal
Size1.77 in W x 1.56 in D x.
Size:4.21 H x 1.77 W x 1.56 .
StandardNEMA (WD-1, WD-6);ANSI .
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Sub BrandDecora Plus
Sub Brand:Decora Plus
Supplier:Leviton
T8280-WStock Code
Terminal Accom.14-10 AWG
TerminationBack or Side Wire
Torque Range14-16 inch pounds
TypeStraight Blade Self-Gro.
Type 3: Surge Receptacl.Family
Type of IndicatorsIndicator Light;Audible.
Type Of Indicators:Indicator Light;Audible.
Type:Type 3 SPD
UL / CSAUL Listed
UNSPSC39121610
UPC078477434789
UPC Code#078477434789
UPC:078477434789
Voltage125 VAC
Voltage Rating125, 125 VAC
Voltage Rating:125 V
VPRL-N: 600V, L-G: 700V, N.
WhiteColor
YokeZinc-Plated Steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomimprovedepot.com86985752.01In StockLeviton52.0 @ 1
thumbzoomemisupply.comLEV-T8280-W54.051In StockLeviton54.05 @ 1
thumbzoomgordonelectricsupply.comT8280-W61.161In Stock755LEVITON61.16 @ 1
Dale-ElectricT8280-W62.251In StockLeviton Manufacturing62.25 @ 1
thumbzoomLighting SupplyT8280-W63.681In StockLeviton63.68 @ 1
kscdirect.comLEV T8280-W64.391In StockLEVITON64.39 @ 1
thumbzoomPlatt.com004335067.051In StockLeviton67.05 @ 1
thumbzoomturtle.comLEV T8280-W72.271In StockLeviton72.27 @ 1
thumbzoomRadwellT8280-W80.010In StockLEVITON80.0 @ 10
thumbzoomZoroG406936382.251In StockLeviton82.25 @ 1
thumbzoomcrescentelectric.com5466699.741In StockLeviton99.74 @ 1
us.rs-online.com72406798101.3410In StockLeviton101.34 @ 10
thumbzoombulbspro.comT8280-W120.741In StockLeviton120.74 @ 1
Graybar25271535149.90081In StockLeviton149.9008 @ 1
