Leviton TDR20-GY

B003AUCC08

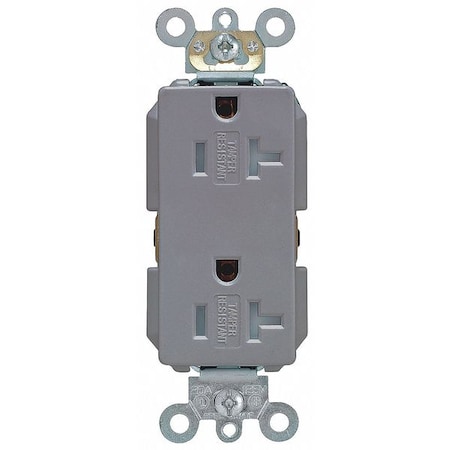

Leviton TDR20-GY 20 Amp, 125 Volt, Tamper Resistant, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Gray

Leviton TDR20-GY 20 Amp, 125 Volt, Tamper Resistant, Decora Plus Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, Grayzoom

Attributes

Key Value
(2P) Double PolePole
-40?CStart Temp. (Min)
07847739215UPC
1 HPHP Rating:
10 Year LimitedWarranty
125VVoltage (V)
20AAmperage, Amp Rating
3Wire Number
5-20RNEMA
60?CStart Temp. (Max)
Amperage Rating20A, 20 A
Amperage Rating:20 A
Amps20
Amps - Plugs and Recept.20 A
Application EnvironmentHeavy-Duty Industrial G.
Case Pack1
CategoryElectrical Receptacles
ColorGray
Color - Plugs and Recep.Gray
Color FamilyGray
Color:Gray
Connection:Back and Side Wired
Country of OriginMX - Mexico, MX
Decorator Duplex OutletsFamily
DescriptionSmooth Face
Description:GR REC DUP DEC TR 2PO 3.
Dielectric Strength:2000 (Min.) V
Dimensions4.06 in H x 1.52 in W x.
ECCNEAR99
Environmental Condition.Flammability (Rated V-2.
Face Plate Height2.77 in
Face Plate Width1.31 in
For additional options .Notes
GradeCommercial
GrayColor
GroundGrounded
Horsepower1 hp
IncludesCover, Wallplate
Item - Plugs and Recept.Duplex Receptacle Outlet
LevitonBrand
ManufacturerLEVITON, Leviton Manufa.
MaterialPBT Polyester Blend (Bo.
Material:Nylon
Maximum Wire Size10 AWG
MFG Part #:TDR20-GY
Minimum Wire Size14 AWG
Mount Hole Center-to-Ce.3.28 in
Mounting:Wall Box
NEMA Configuration5-20, 5-20R
NEMA RatingNEMA 5-20R
NEMA Rating:5-20R
NEMA Receptacle Configu.5-20R
No. of Poles2
No. of Wires3
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
NylonMaterial
Outlet Type - Plugs and.Decorator Duplex
Overall Depth0.89 in
Phase:1
SeriesTDR20
Size:46 H x 1.52 W x 1.14 D .
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Sub Brand:Decora Plus
Sub-CategoryDuplex Receptacles
Supplier:LEVITON
Tamper ResistantYes
TDR20-GYStock Code
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TypeReceptacle, Commercial .
Type:Straight Blade;Duplex O.
UL / CSAUL Listed
UNSPSC39121406
UPC078477392157
UPC:078477392157
Voltage125 VAC
Voltage - Plugs and Rec.125VAC
Voltage Rating125 VAC
Voltage Rating:125 V
Volts AC120
Wire Size:14-10 AWG
Wiring MethodBack, Side
Wiring Method - Plugs a.Back and Side

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Dale-ElectricTDR20-GY12.111In StockLeviton Manufacturing12.11 @ 1
kscdirect.comLEV TDR20-GY12.521In StockLEVITON12.52 @ 1
thumbzoomturtle.comLEV TDR20-GY14.061In StockLeviton14.06 @ 1
Graybar2516759316.48641In StockLeviton16.4864 @ 1
thumbzoomimprovedepot.com86987216.991In StockLeviton16.99 @ 1
thumbzoomLighting SupplyTDR20-GY17.221In StockLeviton17.22 @ 1
thumbzoomelectricsuppliesonline.comTDR20-GY17.441In StockLEVITON17.44 @ 1
thumbzoomPlatt.com073950717.651In StockLeviton17.65 @ 1
thumbzoombulbspro.comTDR20-GY27.891In StockLeviton27.89 @ 1
thumbzoomZoroG604393253434.51In StockLeviton434.5 @ 1
