- mpnLE51A
- brandname: LIBERTY
- manufacturername: LIBERTY

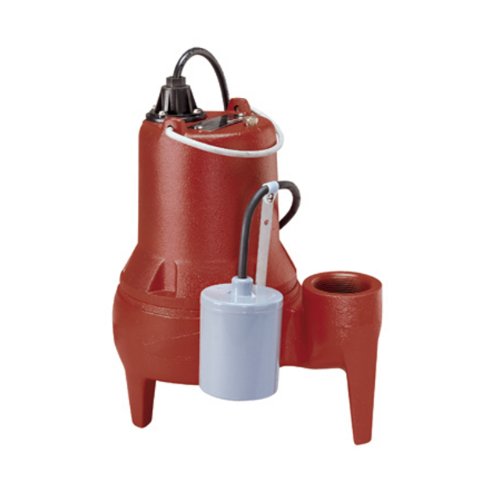

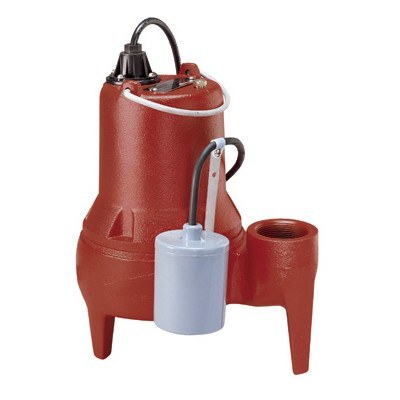

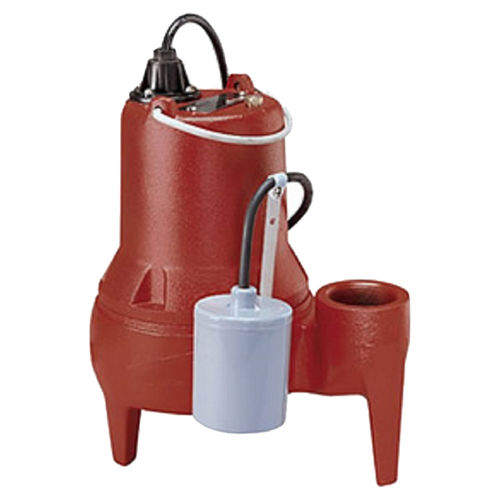

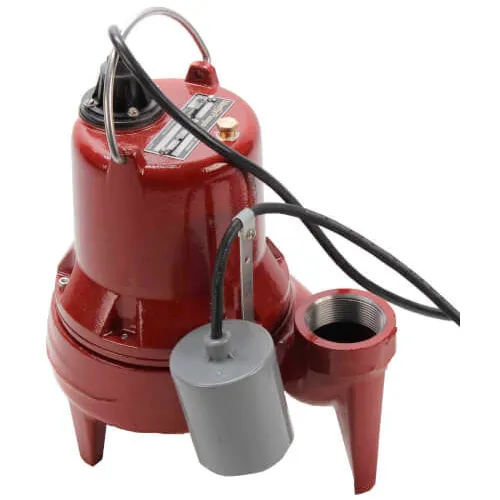

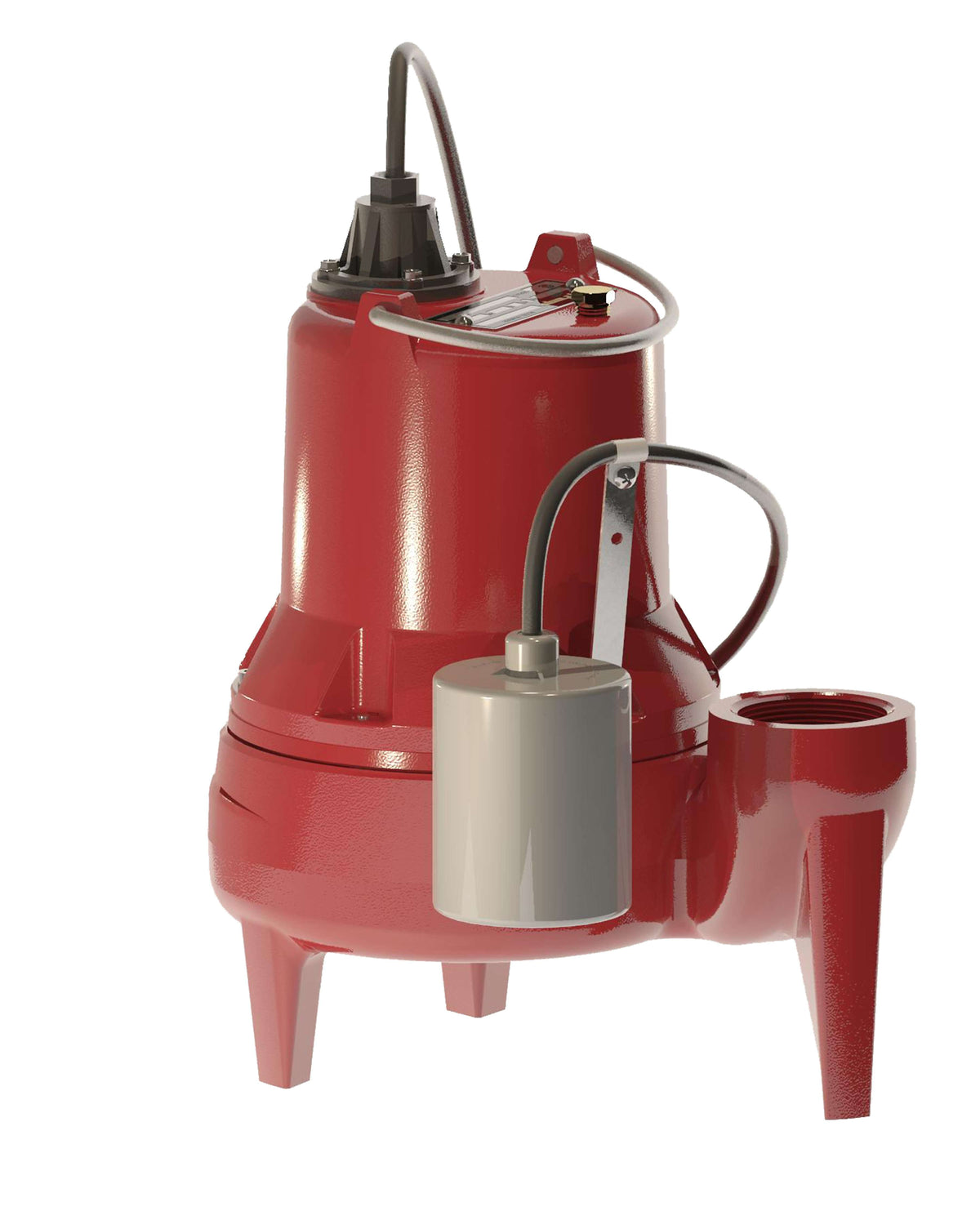

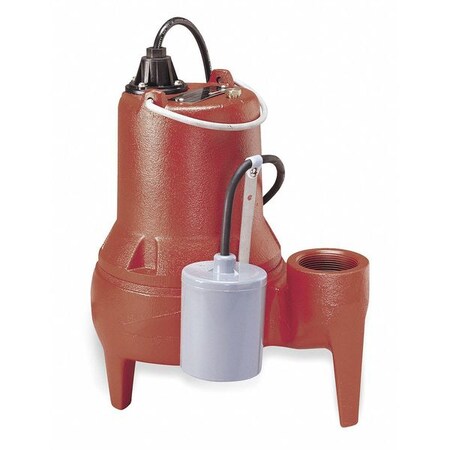

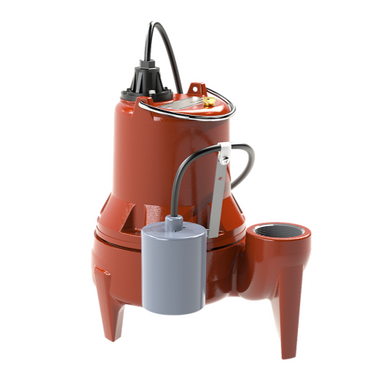

Liberty Pumps LE51A LE50-Series Submersible Automatic Sewage Pump, RED
- Brand: Liberty Pumps
- PartNumber: LE51A
- Model: LE51A
- Color: Red
- Size: 2 Inch
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Liberty Pumps
- Label: Liberty Pumps
Attributes
| Key | Value |
|---|
| ADA Compliant | No |
| Adjustable | No |
| Agency Compliance | UL Listed, CSA Certified |
| AMP | 12 |
| Amperage Rating | 12 A Full Load/22.5 A L. |
| Amps | 12 |
| Application | Commercial, Residential |
| Automatic Shut-Off | Yes |
| Base Diameter | 10-9/10 in |
| Base Material | 303 Stainless Steel |
| Bearing Type | Ball, Sleeve |
| Built-In Grinder | No |
| Clean Bagged | No |
| Coating | Powder Coated |
| Collection | LE50 Series, LE40-Series |
| Cord Length | 10 ft., 10', 10 ft |
| Cord Length In Feet | 10 |
| Cord Type | SJTW 10 ft |
| Corded Cordless | Corded |
| Country of Origin (subj. | United States |
| Cover Included | No |
| CSA Certified | CSA 22.2 No. 108 |
| Description: | 1/2 HP, Sewage Pump, 1 . |
| Diameter | 10-7/10", 10-9/10 in |
| Dimensions | 11-1/2 in W x 14 in H |
| Discharge | 2 in, 2" |
| Discharge Configuration | Horizontal |
| Discharge Connection Ty. | FNPT |
| Discharge NPT | 2" |
| Discharge Size In Inches | 2 |
| End Connection 1 | FNPT |
| End Connection 2 | FNPT |
| End Connections | FNPT |
| Energy Star Compliant | No |
| Fits Pipe Size | 2 in |
| Flow Rate | 160 gpm |
| Frequency Rating | 60 Hz |
| GPM of Water @ 10 Ft. o. | 118 |
| GPM of Water @ 15 Ft. o. | 92 |
| GPM of Water @ 20 Ft. o. | 53 |
| GPM of Water @ 5 Ft. of. | 140 |
| Height | 14 in, 13-1/4", 14" |
| Horsepower | 0.5, 1/2 hp |
| Housing Material | Cast iron |
| HP | 1/2 |
| Impeller | Two Vane Semi-Open |
| Impeller Material | Hytrel |
| Impeller Type | Thermoplastic 2-Vane Se. |
| Installation Type | Freestanding |
| ISO Specifications | ISO 9001 |
| Item | Submersible Sewage Pump |
| Length | 10.75", 10-3/4 in |
| MA Approved | Yes |
| Manufacturer | Liberty Pumps, Liberty . |
| Manufacturers Warranty . | 2 yr Limited, 2 yr. Lim. |
| Material | Cast iron |
| Max Head | 25' |
| Max. Dia. Solids | 2" |
| Max. Head | 24 ft., 24 ft |
| Max. Liquid Temp. | 140 Degrees F |
| Maximum Feet of Head | 25 |
| Maximum Head | 24 ft |
| Maximum Temperature | 104 |
| MFG Part #: | LE51A |
| Minimum Order Quantity | 1 |
| Motor RPM | 1725 |
| Motor Speed | 1725 rpm |
| Motor Type | Permanent Split Capacit. |
| Mounting Type | Rail System |
| NSF Certified | No |
| Off Point | 6.4 in, 6.4" |
| On Point | 13.5 |
| Origin | Domestic |
| Outlet Size | 2 in FNPT |
| Part Number | LE51A |
| Phase | 1, Single Phase, 1 ph |
| Power Source | Electric |
| Product Type | Sewage Pump |
| Prop65 Warning | WARNING: This product c. |
| Pump Application | Sewage |
| Pump Body Material | Cast iron |
| Pump Motor Type | Thermally Protected |
| Pump Mounting | Free Standing |
| Pump Phase | 1 |
| Pump Stage | 1 |
| Pump Type | Automatic |
| Reference ID | 2700783 |
| RPM | 3450, 1725 |
| Series | LE50, LE50-Series |
| Service Factor | 1 |
| Shaft Seal | Carbon/Ceramic |
| Shipping | L:12"x W:9"x H:18" 41 l. |
| Shipping Information | 11.5x8.75x17.5 |
| Supplier: | Liberty Pumps Inc |
| Switch | Auto |
| Switch Type | Tether |
| Temperature Rating | 221 deg F Thermal Overl. |
| Thermal Protection | Yes |
| Turn On Turn Off Levels | Turn-on 15 in_Turn-off . |
| UL Listed | UL 778 |
| UPC | 671812101577 |
| UPC: | 671812101577 |
| VAC at 60 Hz | 115 |
| Voltage | 115 |
| Volts | 115, 115V |
| Weight | 40 lbs., 40 |
| Width | 11-1/2 in, 10.75" |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Canarsee | LE51A | 410.95 | 1 | 8 | | LIBERTY PUMPS | | 410.95 @ 1 |
 | coreandmain.com | 10589311OZ | 477.0 | 1 | In Stock | | LIBERTY PUMPS? | | 477.0 @ 1 |
 | nyrpcorp.com | LILE51A | 480.0 | 1 | In Stock | | Liberty Pumps | | 480.0 @ 1 |
 | bigfrogsupply.com | LE51A | 480.0 | 1 | In Stock | | Liberty Pumps | | 480.0 @ 1 |
 | Zoro | G0483174 | 480.0 | 1 | In Stock | | Liberty Pumps | 41.0 | 480.0 @ 1 |
| ferguson.com | 101903 | 480.0 | 1 | In Stock | | Liberty Pumps | | 480.0 @ 1 |
| AF Supply | LE51A | 480.0 | 1 | 1 | | Liberty Pumps | | 480.0 @ 1 |
 | Faucet Depot | LE51A | 480.0 | 1 | In Stock | | Liberty-Pumps | | 480.0 @ 1 |
 | PlumbersStock | 55622 | 480.0 | 1 | In Stock | | Liberty | 42.0 | 480.0 @ 1 |
 | PexUniverse | LE51A | 480.0 | 1 | In Stock | | Liberty Pumps | | 480.0 @ 1 |
 | sumppumpsdirect.com | LE51A | 480.0 | 1 | In Stock | | Liberty Pumps | | 480.0 @ 1 |
 | standardplumbing.com | LE51A | 480.0 | 1 | In Stock | | LIBERTY PUMPS | | 480.0 @ 1 |
 | edmondsonsupply.com | LE51A | 480.0 | 1 | 7 | | LIBERTY PUMPS | | 480.0 @ 1 |
 | pumpproducts.com | LE51A | 492.31 | 1 | In Stock | | Liberty | | 492.31 @ 1 |
 | Global Industrial | WBB2333686 | 505.0 | 1 | In Stock | | Liberty Pumps | | 505.0 @ 1 |
 | suppliesdepot.com | LE51A | 505.85 | 1 | In Stock | | LIBERTY | | 505.85 @ 1 |
| kscdirect.com | LIB LE51A | 518.35 | 1 | In Stock | | Liberty Pumps Inc | | 518.35 @ 1 |
 | blackhawksupply.com | LE51A | 520.0 | 1 | In Stock | | Liberty Pump | | 520.0 @ 1 |
 | Butler Supply | 8352 | 538.6 | 1 | 23 | | LIBERTY PUMPS | 43.0 | 538.6 @ 1 |
 | Radwell | LE51A | 540.0 | 1 | In Stock | | LIBERTY | | 540.0 @ 1 |
 | Gateway Supply | LE51A | 639.62 | 1 | In Stock | | Liberty Pumps | 43.0 | 639.62 @ 1 |
 | Edge Supply | LE51A | 640.0 | 1 | In Stock | | Liberty Pumps | 40.0 | 640.0 @ 1 |
| Grainger | 5YE88 | 686.0 | 1 | In Stock | | LIBERTY PUMPS | | 686.0 @ 1 |
