FL103M-2

B087T52FXS

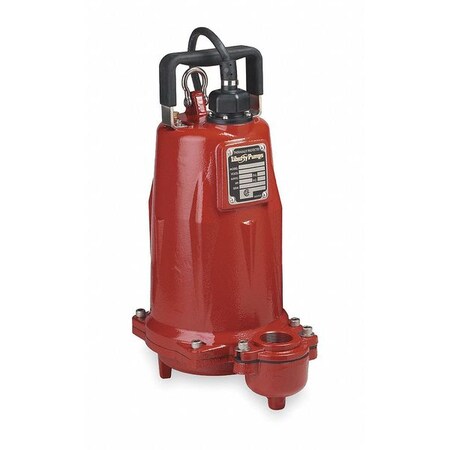

1 HP, Effluent pump, 3 PH, 208-230V, 25' cord, 1.5" / 2 disch, Manual

Attributes

Key Value
ADA CompliantNo
AdjustableNo
Agency ComplianceCSA, C-US
AMP9
Amperage Rating9 A Full Load/32.1 A Lo.
Amps9, 9.0
Amps - Pumps9.00
ApplicationCommercial, Residential
Automatic Shut-OffNo
Automatic/Non AutomaticNon-Automatic
Base Diameter11-4/5 in
Base MaterialCast Iron
Bearing TypeBall/Race, Ball
Brand Model Compatibi.FL-Series Effluent Pumps
Built-In GrinderNo
Clean BaggedNo
CoatingEpoxy, Powder Coated
CollectionFL100 Series, FL100-Ser.
Color FinishBlack, Grey, Red
Color Finish CategoryReds
Cord Length25 ft., 25 ft
Cord Length - Pumps25 ft.
Cord Length In Feet25
Cord TypeSEOOW 25 ft
Corded CordlessCorded
Country of Origin (subj.United States
Cover IncludedNo
CSA CertifiedCSA 22.2 No. 108
Description:1 HP, Effluent Pump, 3 .
Diameter11-3/4", 11-4/5 in
Dimensions11-3/4 in W x 18-1/4 in.
Discharge1-1/2 in;2 in
Discharge ConfigurationHorizontal
Discharge Connection Ty.FNPT
Discharge NPT2"
Discharge Size In Inches2
DutyContinuous
Enclosure TypeNEMA 4X
End Connection 1FNPT
End ConnectionsFNPT
Energy Star CompliantNo
Fits Pipe Size1-1/2 in - 2 in
Flow Rate107 gpm
Frequency Rating60 Hz
GPM of Water @ 10 Ft. o.100
GPM of Water @ 100 Ft. .16
GPM of Water @ 15 Ft. o.95
GPM of Water @ 20 Ft. o.85
GPM of Water @ 25 Ft. o.80
GPM of Water @ 30 Ft. o.72
GPM of Water @ 40 Ft. o.59
GPM of Water @ 5 Ft. of.105
GPM of Water @ 50 Ft. o.45
GPM of Water @ 60 Ft. o.32
GPM of Water @ 70 Ft. o.20
GPM of Water @ 80 Ft. o.9
GPM of Water @ 90 Ft. o.30
Height18-1/4", 22 in, 18.25"
Horsepower1, 1 hp
Housing MaterialCast Iron
HP1
ImpellerSemi-Open
Impeller MaterialCast Iron
Impeller Material - Pum.Cast Iron
Impeller TypeCast Iron 3-Vane Semi-O.
Includes1-1/2" FNPT Flange
Input Phase AC3
Installation TypeFreestanding
ISO SpecificationsISO 9001
ItemEffluent Pump, Submersi.
Item - Effluent PumpsSubmersible Effluent Pu.
Length11.75", 14-1/4 in
MA ApprovedYes
ManufacturerLiberty Pumps Inc
MaterialCast Iron
Max. Dia. Solids3/4"
Max. Diameter Solids3/4"
Max. Head90 ft.
Max. Head - Pumps90 ft.
Max. Liquid Temp.140 Degrees F
Maximum Feet of Head90
Maximum Flow Rate107 gpm
Maximum Head90 ft
Maximum Temperature104
MFG Part #:FL103M-2
Minimum Order Quantity1
Motor RPM3450
Motor Speed3450 rpm
Motor Type3-Phase
Mounting TypeFlange
NSF CertifiedNo
OriginDomestic
Outlet Size1-1/2 in, 2 in FNPT
OversizedYes
Phase3, 3 ph, Three Phase
Power SourceElectric
Product TypePump
Prop65 WarningWARNING: This product c.
Pump ApplicationEffluent
Pump Body MaterialCast Iron
Pump HP1
Pump Motor TypeHermetically Sealed
Pump MountingFree Standing
Pump Phase3
Pump Stage1
Rated Head15 ft
Reference ID2700540
RPM3450
Shaft SealViton Double Lip
Shaft Seal Material - P.Viton
ShippingL:14.25"x W:9.75"x H:22.
Shipping Information14.25x9.75x22
Supplier:Liberty Pumps Inc
Switch TypeNone
Switch Type - PumpsNo Switch Included
Temperature Rating104
Thermal ProtectionNo Thermal Protection, .
Top MaterialCast Iron
UL ListedUL 778
UPC671812131420
UPC:671812131420
VAC at 60 Hz230
Voltage208-230V
Voltage - Pumps208 to 240VAC
Volts208/230V
Weight71 lbs., 71
Width11.75", 9-3/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomstandardplumbing.comFL103M-21127.251In StockLIBERTY PUMPS1127.25 @ 1
thumbzoomcoreandmain.com1058821287PD1185.01In StockLIBERTY PUMPS?1185.0 @ 1
thumbzoomCanarseeFL103M-21194.751In StockLIBERTY PUMPS1194.75 @ 1
thumbzoomPexUniverseFL103M-21194.751In StockLiberty Pumps1194.75 @ 1
ferguson.com48599311194.751In StockLiberty Pumps1194.75 @ 1
thumbzoompumpproducts.comFL103M-21225.391In StockLiberty1225.39 @ 1
grainger.caWWG2WMK81226.595454771In StockLIBERTY75.01226.59545477 @ 1
thumbzoomZoroG10600261227.581In Stock26Liberty Pumps1227.58 @ 1
kscdirect.comLIB FL103M-21290.21In StockLiberty Pumps Inc1290.2 @ 1
thumbzoomEdge SupplyFL103M-21593.01In StockLiberty Pumps71.01593.0 @ 1
