- mpnLE41A
- brandname: LIBERTY PUMPS
- manufacturername: LIBERTY PUMPS

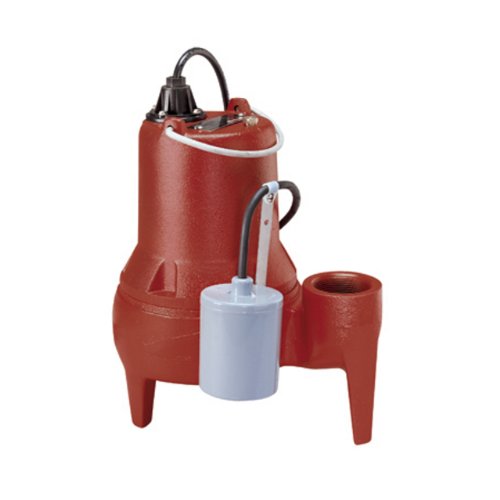

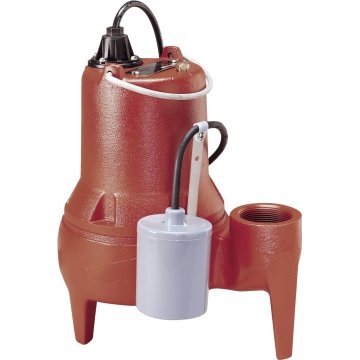

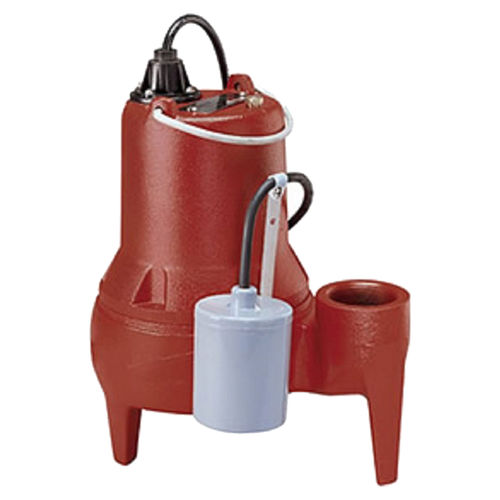

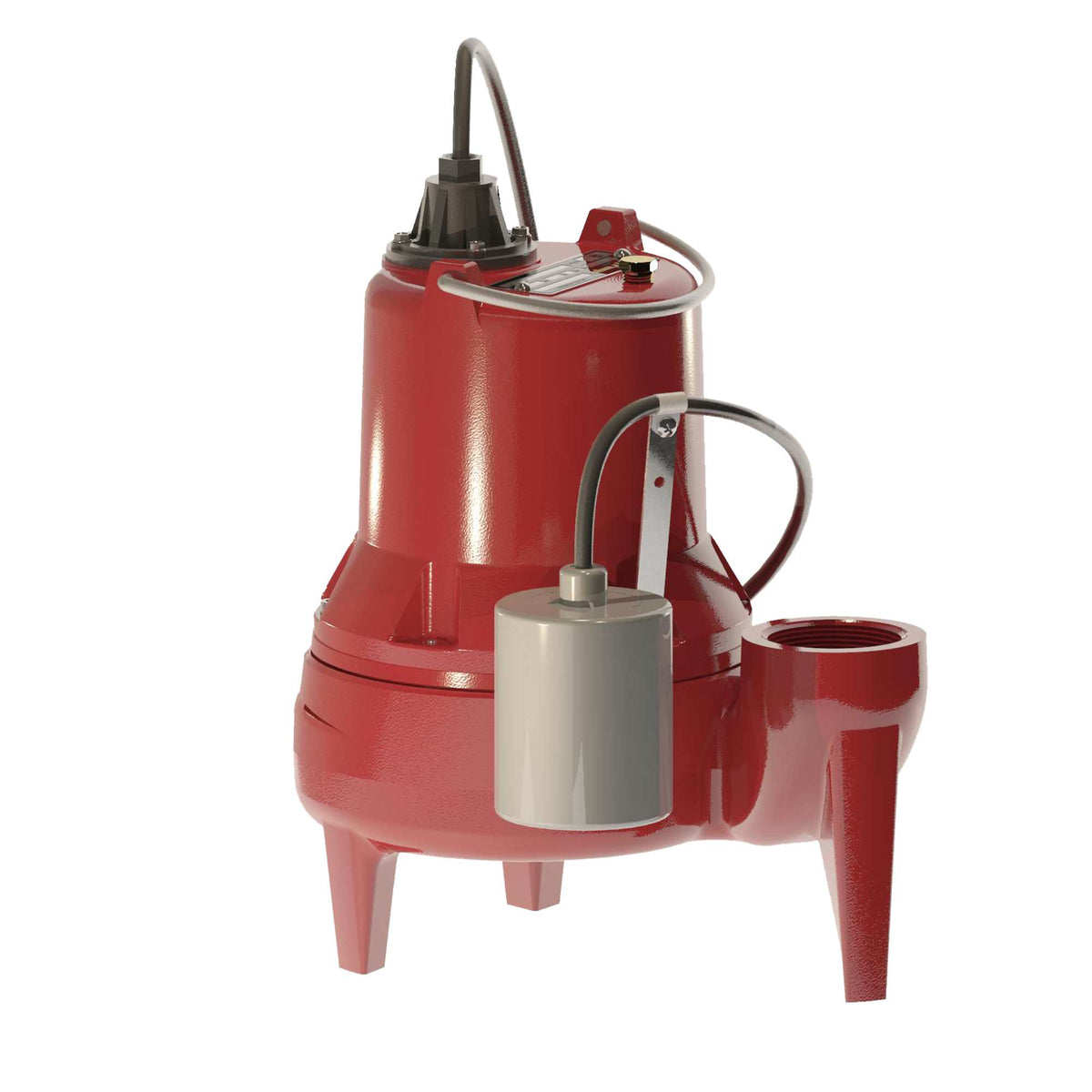

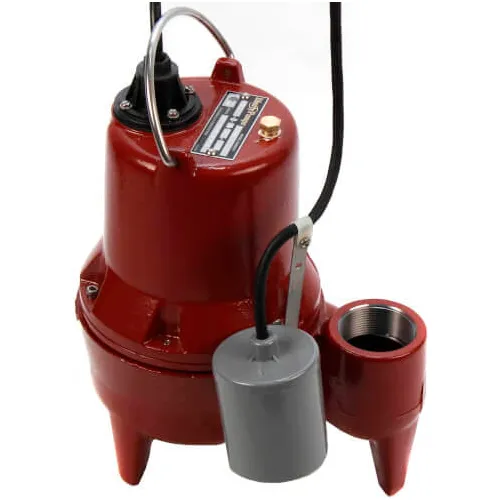

Liberty Pumps LE41A LE40 Pump, RED
- Brand: Liberty Pumps
- PartNumber: LE41A
- Model: LE41A
- Color: Red
- Size: 2 Inch
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Liberty Pumps
- Label: Liberty Pumps
Attributes
| Key | Value |
|---|
| ADA Compliant | No |
| Adjustable | No |
| Agency Compliance | UL Listed, CSA Certified |
| AMP | 12 |
| Amperage Rating | 12 A Full Load/22.5 A L. |
| Amps | 12 |
| Amps - Pumps | 12.00 |
| Application | Commercial, Residential |
| Automatic Shut-Off | Yes |
| Base Diameter | 10-9/10 in |
| Base Material | 303 Stainless Steel |
| Bearing Type | Ball, Sleeve |
| Brand | Liberty |
| Built-In Grinder | No |
| Clean Bagged | No |
| Coating | Powder Coated |
| Collection | LE40 Series |
| Cord Length | 10 ft., 10', 10 ft |
| Cord Length - Pumps | 10 ft. |
| Cord Type | SJTW 10 ft |
| Corded Cordless | Corded |
| Country of Origin | USA |
| Country of Origin (subj. | United States |
| Cover Included | No |
| CSA Certified | CSA 22.2 No. 108 |
| Description: | 4/10 HP, Sewage Pump, 1. |
| Diameter | 10-9/10 in, 10-1/2" |
| Dimensions | 10-3/4 in W x 14 in H |
| Discharge | 2 in, 2" |
| Discharge Configuration | Horizontal |
| Discharge NPT | 2" |
| End Connection 1 | FNPT |
| End Connection 2 | FNPT |
| End Connections | FNPT |
| Energy Star Compliant | No |
| Fits Pipe Size | 2 in |
| Flow Rate | 130 gpm |
| Frequency Rating | 60 Hz |
| GPM of Water @ 10 Ft. o. | 99 |
| GPM of Water @ 15 Ft. o. | 65 |
| GPM of Water @ 20 Ft. o. | 10 |
| GPM of Water @ 5 Ft. of. | 122 |
| Height | 14 in, 9.134, 14" |
| Horsepower | 0.4 Hp, 2/5 hp, 4/10 hp |
| Housing Material | Cast Iron |
| HP | 4/10 |
| Impeller | Vortex |
| Impeller Material | Polymer |
| Impeller Type | Vortex |
| Input Phase AC | 1 |
| Installation Type | Freestanding |
| ISO Specifications | ISO 9001 |
| Item | Submersible Sewage Pump |
| Item - Sewage Pumps | Submersible Sewage Pump |
| Length | 17.323, 10-3/4 in |
| MA Approved | Yes |
| Manufacturer | Liberty Pumps, Liberty . |
| Manufacturers Warranty . | 2 yr. Limited |
| Material | Cast Iron |
| Max Head | 20' |
| Max. Dia. Solids | 2" |
| Max. Diameter Solids | 2" |
| Max. Head | 21 ft. |
| Max. Head - Pumps | 21 ft. |
| Max. Liquid Temp. | 140 Degrees F |
| Maximum Feet of Head | 20 |
| Maximum Head | 20 ft |
| Maximum Temperature | 104 |
| MFG Part #: | LE41A |
| Motor RPM | 1550 |
| Motor Speed | 1725 rpm |
| Motor Type | Shaded Pole |
| NSF Certified | No |
| Off Point | 6.4" |
| On Point | 13.5 |
| Origin | Domestic |
| Outlet Size | 2 in FNPT |
| Package Quantity | 1 |
| Part Number | LE41A |
| Phase | 1, Single Phase, 1 ph |
| Power Source | Electric |
| Product Type | Sewage Pump |
| Pump Application | Sewage |
| Pump Body Material | Cast Iron |
| Pump HP | 4/10 |
| Pump Material | Cast Iron |
| Pump Motor Type | Thermally Protected |
| Pump Mounting | Free Standing |
| Pump Phase | 1 |
| Pump Stage | 1 |
| Pump Type | Automatic |
| RPM | 1550, 3450 |
| Series | LE40, LE40-Series |
| Service Factor | 1 |
| Shaft Seal | Carbon/Ceramic |
| Size Measure | IN |
| Supplier: | Liberty Pumps Inc |
| Switch | Auto |
| Switch Type | Tether |
| Switch Type - Pumps | Tether |
| Temperature Rating | 221 deg F Thermal Overl. |
| Thermal Protection | Yes |
| Turn On Turn Off Levels | Turn-on 15 in/Turn-off . |
| Type | Automatic |
| UL Listed | UL 778 |
| UNSPSC | 40151512 |
| UPC: | 671812101553 |
| VAC at 60 Hz | 115 |
| Voltage | 115 |
| Voltage - Pumps | 120VAC |
| Volts | 115, 115V |
| Weight | 43.500, 40 |
| Weight Measure | LB |
| Width | 11.500, 10-3/4 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| AmazonTP | B001DEMDRU | 331.5 | 1 | In Stock | 2 | Liberty Pumps | | 331.5 @ 1 |
 | Home Perfect | LIBLE41A | 331.5 | 1 | In Stock | | Liberty Pumps | | 331.5 @ 1 |
 | Canarsee | LE41A | 355.95 | 1 | 3 | | LIBERTY PUMPS | | 355.95 @ 1 |
 | coreandmain.com | 10589011 | 416.0 | 1 | In Stock | | LIBERTY PUMPS? | | 416.0 @ 1 |
 | nyrpcorp.com | LILE41A | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
 | bigfrogsupply.com | LE41A | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
 | Zoro | G1256123 | 418.5 | 1 | In Stock | | Liberty Pumps | 39.0 | 418.5 @ 1 |
| ferguson.com | 260734 | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
| AF Supply | LE41A | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
 | PlumbersStock | 27000 | 418.5 | 1 | In Stock | | Liberty | 39.0 | 418.5 @ 1 |
 | PexUniverse | LE41A | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
 | sumppumpsdirect.com | LE41A | 418.5 | 1 | In Stock | | Liberty Pumps | | 418.5 @ 1 |
 | standardplumbing.com | LE41A | 418.5 | 1 | In Stock | | LIBERTY PUMPS | | 418.5 @ 1 |
 | pumpproducts.com | LE41A | 429.23 | 1 | In Stock | | Liberty | | 429.23 @ 1 |
 | suppliesdepot.com | LE41A | 438.4 | 1 | In Stock | | LIBERTY | | 438.4 @ 1 |
 | Global Industrial | WBB2333688 | 439.95 | 1 | In Stock | 15 | Liberty Pumps | | 439.95 @ 1 |
| kscdirect.com | LIB LE41A | 451.93 | 1 | In Stock | | Liberty Pumps Inc | | 451.93 @ 1 |
 | plumbing-deals.com | LIBLE41A | 452.3 | 1 | In Stock | | Liberty Pumps | | 452.3 @ 1 |
 | blackhawksupply.com | LE41A | 453.38 | 1 | In Stock | | Liberty Pump | | 453.38 @ 1 |
 | HD Supply | 402764 | 540.87 | 1 | In Stock | | Liberty | 43.5 | 540.87 @ 1 |
 | Edge Supply | LE41A | 558.0 | 1 | In Stock | | Liberty Pumps | | 558.0 @ 1 |
 | Gateway Supply | LE41A | 644.42 | 1 | In Stock | | Liberty Pumps | 40.0 | 644.42 @ 1 |
