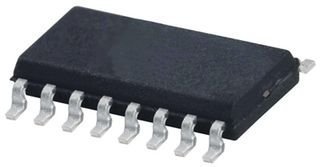

LINEAR TECHNOLOGY LT1058SW#PBF OP AMP, 5MHZ, 14V/uS, SOIC-16 (10 pieces)

LINEAR TECHNOLOGY LT1058SW#PBF OP AMP, 5MHZ, 14V/uS, SOIC-16 (10 pieces)zoom

Attributes

Key Value
Amplifier TypeJ-FET, Amplifier Type
Base Product NumberLT1058
BrandAnalog Devices
CategoryIntegrated Circuits (IC.
Current - Input Bias10 pA
Current - Supply1.7mA (x4 Channels)
DescriptionIC OPAMP JFET 4 CIRCUIT.
Detailed DescriptionJ-FET Amplifier 4 Circu.
Digi-Key Part Number505-LT1058SW#PBF-ND
DimensionsDimensions
Gain Bandwidth Product5 MHz
Height2.337mm
Length10.49mm
ManufacturerAnalog Devices Inc.
Manufacturer Product Nu.LT1058SW#PBF
Manufacturer Standard L.13 Weeks
Maximum Operating Tempe.+70 ?C
MfrAnalog Devices Inc.
Minimum Operating Tempe.0 ?C
Mounting TypeSurface Mount
Number of Channels per .4
Number of Circuits4
Operating Temperature0?C ~ 70?C
Output Type-
PackageTube
Package / Case16-SOIC (0.295", 7.50mm.
Package TypeSOIC
Pin Count16
Power Supply TypeDual
Product StatusActive
Rail to RailNo
SeriesLT?
Slew Rate13V/?s
StockStock
Supplier Device Package16-SO
Typical Dual Supply Vol.Typical Dual Supply Vol.
Typical Gain Bandwidth .Typical Gain Bandwidth .
Typical Input Voltage N.26nV/?Hz
Typical Slew Rate13V/?s
Typical Voltage Gain109.5 dB
Voltage - Input Offset350 ?V
Voltage - Supply Span (.36 V
Voltage - Supply Span (.20 V
Width7.595mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers153-35648.98247In StockAnalog Devices8.982 @ 47
HotendaH25079119.651In StockLinear Technology9.65 @ 1
thumbzoomNewark51AK771714.36119ANALOG DEVICES14.36 @ 1
thumbzoomDigi-Key89114814.6312725Analog Devices Inc.14.63 @ 1
