- mpn0215.500MXP
- brandname: LITTELFUSE
- manufacturername: LITTELFUSE

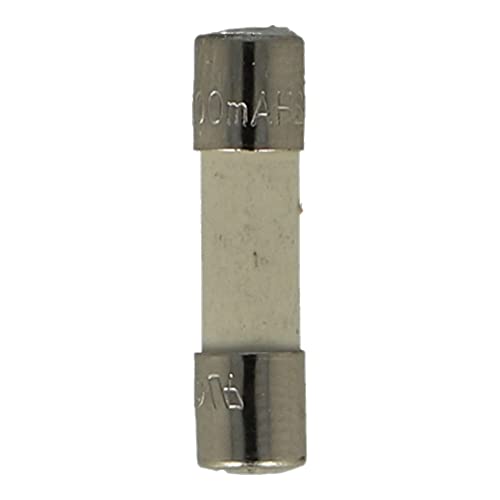

Littelfuse Fuse, Cartridge, 500Ma, 5X20Mm, Slo Blo - 0215.500MXP
- Brand: Littelfuse
- PartNumber: 0215.500MXP
- PackageQuantity: 1
- Manufacturer: LITTELFUSE
- Label: LITTELFUSE
Attributes
| Key | Value |
|---|
| AC Voltage | 250 VAC |
| Action | Slow |
| Additional Information | Amps: 0.5|Volts AC: 250. |
| Alarm Contact | No |
| Alternate Mfr Part Numb. | 5413760 |
| Amperage Rating | 0.5 A |
| Approval Agency | CE, CSA, SEMKO, UL, VDE |
| Approvals | CE, SEMKO, UL, VDE |
| ASIN | B005T5K4YS |
| Batteries Required? | No |
| Body Length (in) | 0.89 " |
| Body Length (mm) | 22.5 mm |
| Body Size | 5 mm Dia x 20 mm L |
| Body Type | Cartridge |
| Breaking Capacity | 1.5 kAmps |
| Breaking Capacity @ Rat. | 1.5kA |
| Characteristic | Time Delay |
| Color | - |
| Current Rating | 0.5 A |
| Current Rating (Amps) | 500 mA |
| DC Cold Resistance | 1.1675 Ohms |
| Depth (in) | 0.24 |
| Depth (mm) | 6 mm |
| Description: | SLO-BLO 5X20MM FUSE BUL. |
| Diameter (mm) | 6 mm |
| Dimensions | 5 x 20 mm 0.2 x 0.79 In |
| Family Series | Littelfuse Fuses, 215 S. |
| Fuse Type | Cartridge, Ceramic |
| Gross Weight | 0 lbs |
| Interrupt Rating | 1.5 kA, 1,500 A @ 250 V |
| Item Number | 0215.500MXP |
| Item Package Quantity | 1 |
| Length (In) | 0.89 " |
| Length (mm) | 22.5 mm |
| Manufacturer | LITTELFUSE |
| Manufacturer Part Number | 0215.500MXP |
| Material | Ceramic |
| Melting I?t | 0.42 |
| MFG Part #: | 0215.500MXP |
| Mfr | Littelfuse Inc. |
| Mounting Type | Holder |
| Net Weight | 0 lbs |
| Operating Temperature | -55?C ~ 125?C |
| Package / Case | 5mm x 20mm |
| Package Type | 5mm x 20mm, Cartridge |
| Part Number | 0215.500MXP |
| Part Status | Active |
| Primary Type | Single Use Fuses |
| Product Series | 215 |
| Response Time | Slow Blow, 0.005 to 0.1. |
| RoHS | No |
| Series | 215, 215 Series |
| Size / Dimension | 0.205" Dia x 0.787" L (. |
| Standard Pack: | Order QTY must be in mu. |
| Standards | California Proposition . |
| Supplier: | LITTELFUSE |
| Temperature Range | 55 to 125 C |
| Termination | Cartridge |
| Trip Indicator | No |
| Type | Fuse, Electronic, Time . |
| UPC: | 079458899818 |
| Voltage (AC) | 250 VAC |
| Voltage Rating | 250 VAC |
| Voltage Rating - AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | TME | 0215.500MXP | 0.102 | 1000 | 50 | | LITTELFUSE | | 0.102 @ 1000 |
| TTI | 215.500XP | 0.524 | 25 | 50 | | Littelfuse | | 0.524 @ 50 |
 | kempstoncontrols.co.uk | 0215.500MXP | 0.916227 | 1 | 388 | | Littelfuse | | 0.916227 @ 50 |
| us.rs-online.com | 70519038 | 0.97 | 1000 | 50 | | Littelfuse | | 0.97 @ 1000 |
| Hotenda | H576248 | 1.128 | 1 | 50 | | Littelfuse | | 1.128 @ 50 |
 | Digi-Key | F3597-ND | 1.1956 | 1 | 50 | | Littelfuse Inc. | | 1.1956 @ 50 |
| Arrow | 0215.500MXP | 1.23 | 1 | 105 | | Littelfuse | | 1.23 @ 50 |
| Mouser | 576-0215.500MXP | 1.66 | 1 | 4823 | | Littelfuse | | 1.66 @ 50 |
 | Newark | 42K9301 | 1.71 | 1 | 285 | | LITTELFUSE | | 1.71 @ 50 |
 | Walker Industrial | 0215.500MXP | 3.44 | 1000 | 50 | 17 | Littelfuse | | 3.44 @ 1000 |
| kscdirect.com | LF 0215.500MXP | 3.59 | 1 | 50 | | LITTELFUSE | | 3.59 @ 50 |
 | Galco | 0215.500MXP-LF | 3.66 | 1 | 50 | | Littelfuse | | 3.66 @ 50 |
 | Platt.com | 0566945 | 4.09 | 1 | 50 | | Littelfuse | | 4.09 @ 50 |
| Amazon | B005T5K4YS | 6.23 | 1 | 50 | | LITTELFUSE | | 6.23 @ 50 |
| Lighting Supply | LITTELFUSE-0215.500MXP | 3630.0 | 1 | 50 | | Littelfuse | | 3630.0 @ 50 |
