- mpn21801.6P
- brandname: LITTELFUSE
- manufacturername: LITTELFUSE

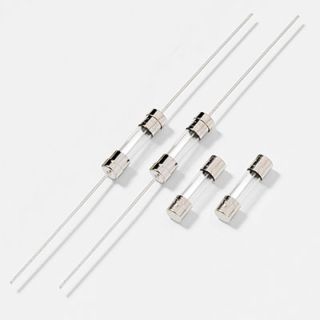

Littelfuse 21801.6P Slo-blo 5x20 Glass Body Fuse
- Brand: Littelfuse
- PartNumber: 21801.6P
- PackageQuantity: 1
- Manufacturer: Littelfuse
- Label: Littelfuse
Attributes
| Key | Value |
|---|
| Alarm Contact | No |
| Amperage Rating | 1.6 A |
| Approval Agency | BSI, CCC, CE, CSA, KC, . |
| Approvals | CE, CSA, UL |
| Body Length (mm) | 20 mm |
| Body Size | 5 mm Dia x 20 mm L |
| Body Type | Cartridge |
| Breaking Capacity @ Rat. | 35A |
| Category | Circuit Protection |
| Characteristic | Time Delay |
| Class | RK5 |
| Color | - |
| Current Rating | 1.6 A |
| Current Rating (Amps) | 1.6 A |
| DC Cold Resistance | 0.0336 Ohms |
| Description: | SLO-BLO 5X20 GLASS BODY. |
| Diameter (mm) | 5.2 mm |
| Family Series | Littelfuse Fuses, 218 S. |
| Fuse Type | Cartridge, Glass |
| Gross Weight | 0.005 lbs |
| Indicating/Non-Indicati. | Non-Indicating |
| Interrupt Rating | 35 A, 35 kA @ 250 V |
| Item Number | 21801.6P |
| Manufacturer | LITTELFUSE |
| Manufacturer Part Number | 021801.6VXP |
| Material | Glass |
| Melting I?t | 23.35 |
| MFG Part #: | 21801.6P |
| Mfr | Littelfuse Inc. |
| Mounting Type | Holder |
| Net Weight | 0.005 lbs |
| Operating Temperature | -55?C ~ 125?C |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Package Type | Cartridge |
| Part Status | Active |
| Product Series | 218 |
| Response Time | Slow Blow, 60 min, 2 mi. |
| RoHS | Yes |
| Series | 218 |
| Size / Dimension | 0.205" Dia x 0.787" L (. |
| Standard Pack: | Order QTY must be in mu. |
| Standards | California Proposition . |
| Supplier: | LITTELFUSE |
| Terminal Type | Ferrule |
| Trip Indicator | No |
| Type | Time Lag, Class RK5 |
| UPC: | 079458905120 |
| Voltage (AC) | 250 VAC |
| Voltage (DC) | 250 VDC |
| Voltage Rating | 250 VAC |
| Voltage Rating - AC | 250 V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Newark | 91T2065 | 1.08 | 100 | 92 | | LITTELFUSE | | 1.08 @ 100 |
| Digi-Key | 5800571 | 2.093 | 1 | 120 | | Littelfuse Inc. | | 2.093 @ 1 |
| steinerelectric.com | 446337 | 2.13 | 1 | 92 | | Littelfuse | | 2.13 @ 1 |
 | Galco | 21801.6P-LF | 2.5 | 5 | 3 | | Littelfuse | 0.005 | 2.5 @ 5 |
 | Walker Industrial | 21801.6P | 3.2 | 5 | 92 | 10 | Littelfuse | | 3.2 @ 5 |
| Guardian | LIT-021801.6VXP | 3.4 | 1 | 92 | | LITTELFUSE | | 3.4 @ 1 |
| kscdirect.com | LF 21801.6P | 3.46 | 1 | 92 | | LITTELFUSE | | 3.46 @ 1 |
 | Platt.com | 0033761 | 4.33 | 1 | 92 | | Littelfuse | | 4.33 @ 1 |
 | cbtcompany.com | 21801.6P | 5.62 | 1 | 92 | | Littelfuse | | 5.62 @ 1 |
 | gordonelectricsupply.com | 21801.6P | 14.45 | 1 | 92 | | LITTELFUSE | | 14.45 @ 1 |
