- mpnL60030C-2CDINR
- brandname: LITTELFUSE
- manufacturername: LITTELFUSE

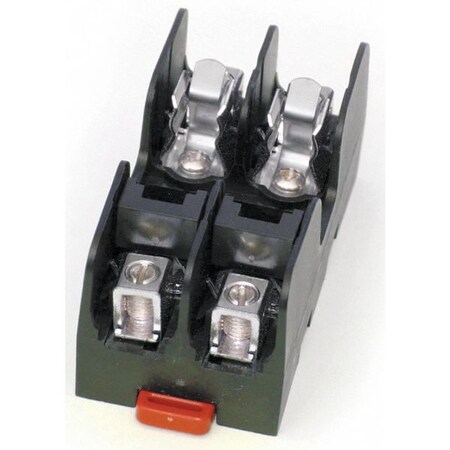

LITTELFUSE L60030C-2CDINR Class CC Fuse Block with Box Lug Terminal - DIN Mount RELEASABLE, AMPS(30)-Volts(600VAC)
- Brand: Littelfuse
- PackageQuantity: 1
- Manufacturer: LITTELFUSE
- Label: LITTELFUSE
Attributes
| Key | Value |
|---|
| Amp Range of Fuse Block. | 0 to 30A |
| Amperage Rating | 30 A |
| Approvals | CSA, UL, UR |
| Brand | Littelfuse |
| Catalog Number | L60030C-2CDINR |
| Class | CC |
| Composition | Thermoplastic |
| Connection Type | Box Lug |
| Connector Type | Box Lug |
| Country of Origin | China |
| Country of Origin (subj. | China |
| Description: | CLASS CC FUSE BLOCK WIT. |
| Dimensions | 3.345 in H x 1.5 in W x. |
| Enclosed | No |
| Family Series | Littelfuse Fuseblocks &. |
| Features | Space Saver with Cover |
| For Fuse Series | CCMR, KLDR, KLKR |
| For Fuse Size | 1 1/2 in L x 13/32 in d. |
| Fuse Block Design | Open |
| Fuse Block or Fuse Hold. | Fuse Block |
| Fuse Block or Holder AC. | 600VAC |
| Fuse Block or Holder DC. | 600VDC |
| Fuse Class | CC |
| Fuse Diameter | 13/32 in |
| Fuse Holder Code | CC |
| Fuse Length | 1-1/2 in |
| Fuse Type | Industrial |
| Fuse UL Class | CC |
| Gross Weight | 0.195 lbs |
| GTIN | 00079458182903 |
| Height | 1.40" |
| Indicating / Nonindicat. | Nonindicating |
| Item | Fuse Block |
| Item Number | L60030C-2CDINR |
| Item Type | Class CC Fuseblock |
| Length | 3.35" |
| Made in USA | No |
| Manufacturer | Littelfuse |
| Manufacturer Part Number | L60030C2CDINR |
| Material | Thermoplastic |
| Max Current | 30 A |
| MFG Part #: | L60030C-2CDINR |
| Mounting Style | DIN Rail |
| Mounting Type | DIN Rail, Panel Mount, . |
| Net Weight | 0.185 lbs |
| Number of Poles | 2 |
| Poles | 2 |
| Product Series | L600C-DINR |
| Reinforced | No |
| RoHS | No |
| Series | L600C-DINR |
| Special Features | DIN Rail Mounting |
| Standard | UL Listed CSA |
| Standard Pack: | Order QTY must be in mu. |
| Standards | California Proposition . |
| Sub Brand | L600 Fuseblock |
| Suitable For Use With | CCMR, KLDR, KLKR Series. |
| Supplier: | Littelfuse |
| Temperature Rating | 125 deg C |
| Touch Safe | No |
| Trip Indicator | No |
| Type | Fuse Block, Non-Indicat. |
| UPC | 079458182903 |
| UPC: | 079458182903 |
| Voltage | 600 V |
| Voltage Rating | 600 VAC/VDC |
| Water Resistant | No |
| Width | 1.50" |
| Wire Size | 14 to 6 AWG, 14 to 6 AW. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3691913 | 23.5 | 1 | In Stock | 26 | Littelfuse | | 23.5 @ 1 |
| steinerelectric.com | 766564 | 32.72 | 1 | In Stock | | Littelfuse | | 32.72 @ 1 |
| gordonelectricsupply.com | L60030C-2CDINR | 34.39 | 1 | In Stock | | LITTELFUSE | | 34.39 @ 1 |
 | Galco | L60030C-2CDINR-LF | 40.42 | 1 | In Stock | | Littelfuse | 0.195 | 40.42 @ 1 |
| kscdirect.com | LF L60030C-2CDINR | 48.65 | 1 | In Stock | | LITTELFUSE | | 48.65 @ 1 |
| cbtcompany.com | L60030C-2CDINR | 58.02 | 1 | In Stock | | Littelfuse | | 58.02 @ 1 |
 | Walker Industrial | L60030C-2CDINR | 58.68 | 1 | In Stock | 17 | Littelfuse | | 58.68 @ 1 |
| Guardian | LIT-L60030C2CDINR | 61.15 | 1 | In Stock | | LITTELFUSE | | 61.15 @ 1 |
 | crescentelectric.com | 815797 | 67.36 | 1 | In Stock | | Littelfuse | | 67.36 @ 1 |
 | Platt.com | 0034254 | 69.72 | 1 | In Stock | | Littelfuse | | 69.72 @ 1 |
