Q6040J7TP-LITTELFUSE

B018COTV96

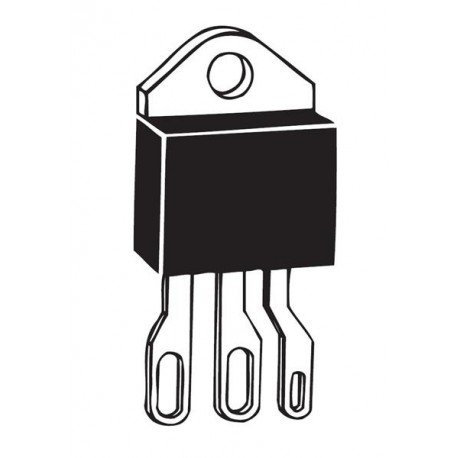

LITTELFUSE Q6040J7TP TRIAC,ISOLATED,40A,600V,TO-218X

LITTELFUSE Q6040J7TP TRIAC,ISOLATED,40A,600V,TO-218Xzoom

Attributes

Key Value
Alternate Part No.576-Q6040J7
Base Product NumberQ6040
Blocking Voltage1000 V
BrandLittelfuse
CategoryDiscrete Semiconductor .
Channel TypeBi-Directional
ConfigurationSingle
Current - Gate Trigger .100 mA
Current - Hold (Ih) (Ma.100 mA
Current - Non Rep. Surg.335A, 400A
Current - On State (It .40 A
DescriptionTRIAC ALTERNISTOR 600V .
Detailed DescriptionTRIAC Alternistor - Snu.
Digi-Key Part NumberQ6040J7TP-ND
Dimensions16.00 x 4.78 x 12.62 mm
Gate Trigger Current100 mA
Gate Trigger Current - .100 mA
Gate Trigger Voltage2 V
Gate Trigger Voltage - .2.5 V
Height0.497" (12.62mm)
Holding Current100 mA
Holding Current Ih Max120 mA
Length0.629 in
ManufacturerLittelfuse Inc., Littel.
Manufacturer Part No.Q6040J7
Manufacturer Product Nu.Q6040J7TP
Manufacturer Standard L.15 Weeks
Maximum On State Current40 A
Maximum On State Voltage1.8 V
Maximum Operating Tempe.+ 125 C, +125 ?C
MfrLittelfuse Inc.
Minimum Operating Tempe.-40 ?C, - 40 C
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Non Repetitive On-State.335 A, 400 A
Number of Pins3
Off State Voltage1000 V
Off-State Leakage Curre.200 uA
On-State RMS Current - .40 A
On-State Voltage1.8 V
Operating Temperature-40?C ~ 125?C (TJ)
PackageTube
Package / CaseTO-218X-3 Isolated Tab
Package TypeTO-218X
Package/CaseTO-218X-3
PackagingBulk
Product CategoryTriacs
Product StatusActive
Rated Repetitive Off-St.600 V
Repetitive Peak Voltage1000 V
Resistance, Thermal, Ju.0.97 ?C/W
SeriesQxx40xx, -
Supplier Device PackageTO-218X Isolated
Surge Current400 A
Temperature Operating R.-40 to +125 ?C
Triac TypeAlternistor - Snubberle.
Voltage - Gate Trigger .2 V
Voltage - Off State600 V
Width0 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
TTIQ6040J7TP7.491001575Littelfuse7.49 @ 100
Newark56P42637.4925010LITTELFUSE7.49 @ 250
HotendaH19147168.3591796Littelfuse8.359 @ 10
Mouser576-Q6040J7TP9.881198Littelfuse9.88 @ 10
RS Delivers165-989710.81682510Littelfuse10.8168 @ 25
thumbzoomTMEQ6040J7TP-LF11.431183LITTELFUSE11.43 @ 10
thumbzoomDigi-Key582011.70961248Littelfuse Inc.11.7096 @ 10
us.rs-online.com7018465513.3525010Littelfuse13.35 @ 250
thumbzoomswatee.comQ6040J718.091386Littelfuse18.09 @ 10
QuestQ6040J732.5110Littelfuse32.5 @ 10
AmazonSCB00MMUWK7M77.72110Littelfuse77.72 @ 10
