Littelfuse V131DB40

B005T5M3B0

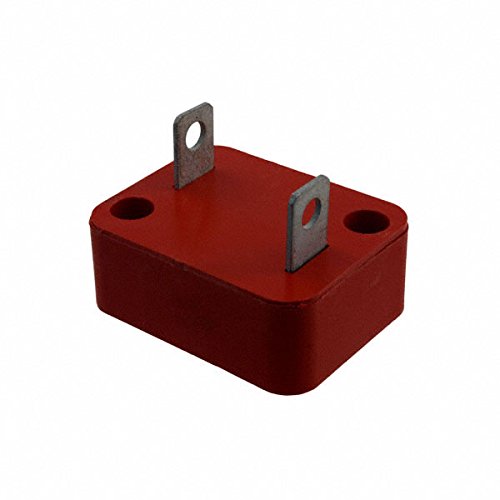

V131DB40, VAR MOV 130VAC/175VDC 40000A 200V Bolt-Down (1 Items)

V131DB40, VAR MOV 130VAC/175VDC 40000A 200V Bolt-Down (1 Items)zoom

Attributes

Key Value
AC Voltage130 V
Alternate Part No.576-V131DB40
ApprovalsUR
Body dimensions46.8x60.3x23mm
BrandLittelfuse
Capacitance10000pF, 10000 pF
Capacitance @ Frequency10000 pF @ 1 MHz
Case Diameter40 mm
CategoryCircuit Protection
Clamping Voltage345 V
Current - Surge40 kA
DC Voltage175 V
Dimensions40 mm Dia. x 60.3 mm L .
Energy270J
Energy (Joules)270 J
Energy E10/1000?s270J
Energy Rating270 Joules
Family SeriesLittelfuse Metal Oxide .
Gross Weight0.145 lbs
Insulation Resistance1000 MegaOhms
Item NumberV131DB40
ManufacturerLittelfuse
Manufacturer Part No.V131DB40
Manufacturer Part NumberV131DB40
Max Applied Voltage DC175 VDC
Max Applied Voltage RMS130 V
Max Clamping Volts345 V
Max Varistor Peak Volts228 V
Max. operating voltage130V AC,
Maximum AC Volts130 V
Maximum DC Volts175 V
Maximum Operating Tempe.85 ?C
MfrLittelfuse Inc.
Min Varistor Peak Volts184 V
Minimum Operating Tempe.-55 ?C
MountingScrew, SMD/SMT
Mounting StylePanel
Mounting TypeChassis Mount
Net Weight0.145 lbs
Number of Circuits1
Number of terminals2
Operating Temperature-55?C ~ 85?C (TA)
Operating temperature-55...85?C
Operating Temperature R.- 55 C to + 85 C
Operating Voltage110 V
PackageBulk
Package / CaseBlade Type, Encased
Package TypeDisc 10mm
PackagingBulk
Peak Current40,000 A, 40000 A
Peak Surge Current40 kA
PhaseSingle
Product CategoryVaristors
Product SeriesDB
Product StatusActive
RoHSYes
SeriesDB Series, DB, DA / DB
Surge Energy Rating270 J
TechnologyMetal Oxide
Terminal TypeQuick Connect Push-On C.
Termination StyleScrew
TypeMOV
Type of varistorblock
Typical Capacitance (pf)0.00000001 pF
Varistor voltage205V
Varistor Voltage225.5 V
Varistor Voltage (Max)225.5 V
Varistor Voltage (Min)184.5 V
Varistor Voltage (Typ)205 V
Voltage Rating AC130 V
Voltage Rating DC175 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNewark74R284432.7530In StockLITTELFUSE32.75 @ 25
HotendaH61639238.61144Littelfuse38.61 @ 1
RS Delivers878-195947.4241In StockLittelfuse47.424 @ 1
Digi-Key48530848.6361In StockLittelfuse Inc.48.636 @ 1
thumbzoomGalcoV131DB40-LF51.951In StockLittelfuse0.14551.95 @ 1
Future Electronics224778157.73230In StockLittelfuse57.732 @ 30
thumbzoomRadwellV131DB4060.030In StockLITTELFUSE60.0 @ 30
us.rs-online.com7018468564.012Littelfuse64.0 @ 1
thumbzoomswatee.comV131DB4075.26131Littelfuse75.26 @ 1
TMEV131DB4035689.4330In StockLITTELFUSE35689.43 @ 30
