- mpn0251003.MXL
- brandname: Littelfuse Inc
- manufacturername: Littelfuse Inc

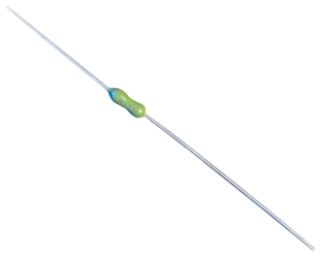

LITTELFUSE 0251003.MXL 251 Series Very Fast-Acting 125V 3 A ? 2.8 x 7.11 mm Axial Lead PICO II Fuse - 50 item(s)
- Brand: Littelfuse
- PartNumber: 0251003.MXL
- Model: 0251003.MXL
- PackageQuantity: 1
- Manufacturer: LITTELFUSE
- Label: LITTELFUSE
Attributes
| Key | Value |
|---|
| AC Voltage | 125 V |
| Alarm Contact | No |
| Alternate Mfr Part Numb. | 251003L |
| Amperage Rating | 3 A |
| Approvals | CCC, CSA, CCC ; CSA ; P. |
| Body Material | Encapsulated |
| Body Size | 2.468 in W x 0.11 in H |
| Body Type | Leaded |
| Breaking Capacity | 500 AAC ; 300 ADC |
| Case Color Code | Gray |
| Case Diameter | 2.8 mm |
| Case Length | 7.11 mm |
| Case Pack | 1000 |
| Characteristic | Very Fast Acting |
| Class | Supplemental |
| Current Rating | 3 A |
| DC Resistance | 0.029 Ohms |
| DC Voltage | 125 V |
| Description: | VERY FAST-ACTING PICO I. |
| Dimensions | 7.11 mm L x 2.8 mm D, 0. |
| Factory Pack Quantity | 1000 |
| Family Series | Littelfuse Fuses, 251 S. |
| Fuse Size / Group | PICO II |
| Fuse Type | Fast Blow |
| Gross Weight | 0.0004 lbs |
| In-stock | 87000 |
| Indicating/Non-Indicati. | Non-Indicating |
| Indicator Style | Without Indicator |
| Interrupt Rating | 50 Amps at 125 VoltsAC . |
| Item Number | 251003L |
| Manufacturer | LITTELFUSE |
| Manufacturer Part Number | 0251003.VXL |
| Material | Ceramic |
| MFG Part #: | 0251003.MXL |
| Mounting Style | Through Hole |
| Mounting Type | Through Hole, PCB Mount |
| Net Weight | 0.0004 lbs |
| Operating Temperature R. | - 55 C to + 125 C |
| Package Type | Axial, Axial Leaded |
| Package/Case | DIP |
| Packaging | Bulk |
| Part # Aliases | 251003L 576-251003L |
| Primary Type | Single Use Fuses |
| Product | Specialty Fuses |
| Product Categories | Fuse |
| Product Series | 251 |
| Resistance | 0.029 Ohms |
| Response Time | 4 ms |
| RoHS | No |
| RoHs Status | Green |
| Series | 0251, 251, PICO II 251 . |
| Speed | Very Fast Acting |
| Standard Pack: | Order QTY must be in mu. |
| Standards | California Proposition . |
| Supplier: | LITTELFUSE |
| Temperature Range | 55 to 125 C |
| Terminal Type | Axial |
| Termination | PCB ; Axial Leads |
| Termination Style | Axial |
| Trip Indicator | No |
| Type | PCB Mounted Fuses, Fast. |
| UPC: | 079458891072 |
| Voltage (AC) | 125 VAC |
| Voltage (DC) | 125 VDC |
| Voltage Rating | 125 V, 125 VAC/VDC |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Arrow | 0251003.MXL | 0.551 | 1 | 3995 | | Littelfuse | | 0.551 @ 50 |
| Hotenda | H570357 | 0.5698 | 1 | 50 | | Littelfuse | | 0.5698 @ 50 |
 | Newark | 12J4216 | 0.814 | 1 | 1837 | | LITTELFUSE | | 0.814 @ 50 |
 | Bisco | 251003L | 0.81927 | 14 | 155 | | Littelfuse | | 0.81927 @ 50 |
| us.rs-online.com | 70184675 | 1.01 | 1 | 1000 | | Littelfuse | | 1.01 @ 50 |
 | Walker Industrial | 0251003.MXL | 1.79 | 1000 | 50 | 17 | Littelfuse | | 1.79 @ 1000 |
| kscdirect.com | LF 0251003.MXL | 2.08 | 1 | 50 | | LITTELFUSE | | 2.08 @ 50 |
 | Platt.com | 0567373 | 2.13 | 1 | 50 | | Littelfuse | | 2.13 @ 50 |
 | Galco | 251003L-LF | 4.05 | 1 | 50 | | Littelfuse | 0.0004 | 4.05 @ 50 |
| steinerelectric.com | 578798 | 5.92 | 1 | 50 | | Littelfuse | | 5.92 @ 50 |
| AmazonSC | B00DECYQ42 | 11.09 | 1 | 50 | | Littelfuse | | 11.09 @ 50 |
 | gordonelectricsupply.com | 0251003.MXL | 1790.0 | 1 | 50 | | LITTELFUSE | | 1790.0 @ 50 |
 | Lighting Supply | LITTELFUSE-0251003.MXL | 1880.0 | 1 | 50 | | Littelfuse | | 1880.0 @ 50 |
