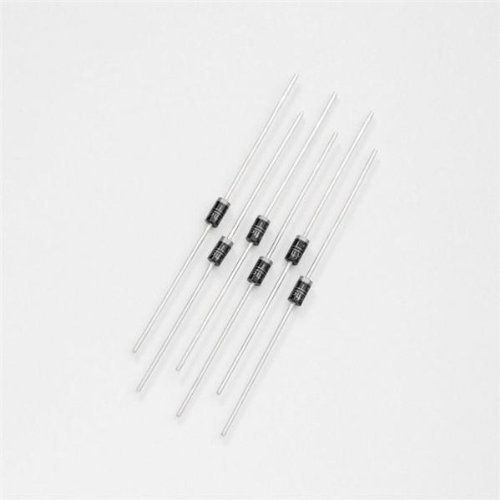

Littelfuse P4KE30A

B00LVJR68I

TVS Diodes - Transient Voltage Suppressors 25.6Vso 28.5Vbr (1000 pieces)

TVS Diodes - Transient Voltage Suppressors 25.6Vso 28.5Vbr (1000 pieces)zoom

Attributes

Key Value
Alternate Part No.576-P4KE30A
ApplicationsGeneral Purpose
Base Product NumberP4KE30
BrandLITTELFUSE
Breakdown voltage30V
Breakdown Voltage28.5 V
Capacitance @ Frequency-
CaseDO41
CategoryCircuit Protection
Clamping Voltage41.4 V
Current - Peak Pulse (1.9.9A
DescriptionTVS DIODE 25.6VWM 41.4V.
Detailed Description41.4V Clamp 9.9A Ipp Tv.
Digi-Key Part Number18-P4KE30ATR-ND - Tape .
Dimensions2.7 mm Dia. x 5.2 mm L
Kind of packagebulk
Leakage current1?A
ManufacturerLittelfuse Inc., LITTEL.
Manufacturer Part No.P4KE30A
Manufacturer Product Nu.P4KE30A
Manufacturer Standard L.14 Weeks
Max. forward impulse cu.9.9A
Max. off-state voltage25.6V
Maximum Operating Tempe.+ 175 C
MfrLittelfuse Inc.
Minimum Operating Tempe.- 55 C
MountingTHT
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Operating Temperature-55?C ~ 175?C (TJ)
Operating Voltage25.6 V
PackageTape & Reel (TR)
Package / CaseDO-204AL, DO-41, Axial
Package/CaseDO-41
PackagingReel
Peak Pulse Power Dissip.400 W
Peak pulse power dissip.400W
Peak Surge Current9.9 A
Polarityunidirectional
Power - Peak Pulse400W
Power Line ProtectionNo
Product CategoryTVS Diodes - Transient .
Product StatusActive
Semiconductor structureunidirectional
SeriesP4KE
Supplier Device PackageDO-204AL (DO-41)
Termination StyleAxial
Tolerance?5%
TypeZener
Type of diodeTVS
Unidirectional Channels1
Unit Weight300 mg
Voltage - Breakdown (Mi.28.5V
Voltage - Clamping (Max.41.4V
Voltage - Reverse Stand.25.6V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEP4KE30A-B-LF0.091431000LITTELFUSE0.0914 @ 1000
Newark71J13770.16150001000LITTELFUSE0.161 @ 5000
thumbzoomDigi-Key7155450.17649618847Littelfuse Inc.0.176496 @ 1000
thumbzoomswatee.comP4KE30A1.0211711Littelfuse1.02 @ 1000
AmazonSCB00LVJR68I231.7411000Littelfuse231.74 @ 1000
