V20E25P

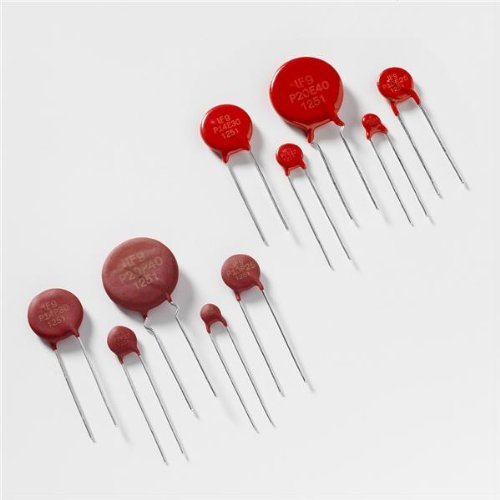

Varistors 25Vrms 8kA 12000pF 20mm Disc

Varistors 25Vrms 8kA 12000pF 20mm Disczoom

Attributes

Key Value
ApprovalsUL
Capacitance @ Frequency13500 pF @ 1 MHz
CategoryCircuit Protection
Current - Surge8 kA
Energy120J
Energy (Joules)77 J
Energy E10/1000?s120J
Family SeriesLittelfuse Metal Oxide .
Gross Weight0 lbs
Item NumberV20E25P
ManufacturerLittelfuse
Manufacturer Part NumberV20E25P
Max Applied Voltage DC31 VDC
Max Applied Voltage RMS25 Vrms
Max body dimensions?20mm
Max Clamping Volts77 V
Max. operating voltage25V AC,
Maximum AC Volts25 V
Maximum DC Volts31 V
MfrLittelfuse Inc.
MountingTHT
Mounting TypeThrough Hole
Net Weight0 lbs
Number of Circuits1
Number of terminals2
Operating Temperature-40?C ~ 85?C (TA)
Operating temperature-40...85?C
PackageBulk
Package / CaseDisc 20mm
Part StatusActive
Peak Current8,000 A
Product SeriesLV UltraMOV
RoHSYes
SeriesLV UltraMOV?
Type of varistormetal-oxide
Varistor max current 8/.8kA
Varistor voltage39V
Varistor Voltage (Max)42.9 V
Varistor Voltage (Min)35.1 V
Varistor Voltage (Typ)39 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark95W02960.411500243LITTELFUSE0.41 @ 1000
thumbzoomGalcoV20E25P-LF0.531500243Littelfuse0.53 @ 1500
Fuses UnlimitedV20E25P0.56500243Littelfuse0.56 @ 500
Mouser576-V20E25P0.971243Littelfuse0.97 @ 1
Digi-Key42857761.01211521Littelfuse Inc.1.012 @ 1
TMEV20E25P401.711500243LITTELFUSE401.71 @ 1500
