LITTLE GIANT 6-CIA

B000JGA0IC

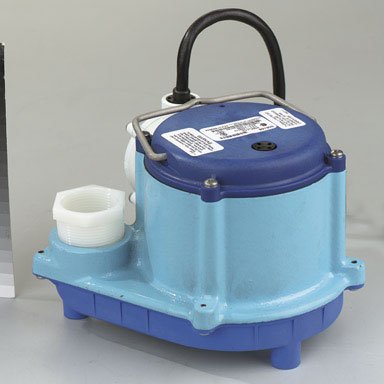

Little Giant 6-CIA Submersible Sump Pump, 115V, 50/60 Hz

Little Giant 6-CIA Submersible Sump Pump, 115V, 50/60 Hzzoom

Attributes

Key Value
AlarmNo
Alarm IncludedNo
AMP9
Amperage Rating9 A
Amps9 A
Amps - Pumps9.00
ASIN?:?B000UEV8WA
Automatic Shut-OffYes
Base MaterialPolypropylene
Bearing TypeSintered Flanged Sleeve
Best Sellers RankSee Top 100 in Tools & .
Body Dia.9 1/2 in
Body MaterialCast Iron
BrandLittle Giant Pump, Litt.
CoatingEpoxy
Collection6 Series
ColorBlue
Connection TypeFPT
Cord Length10 ft
Cord Length - Pumps9 ft.
Cord TypeSJTW
Corded CordlessCorded
Country of Origin (subj.Mexico
CSA CertifiedYes
Current Stock797
Date First AvailableOctober 6, 2006
Date First Available?:?October 6, 2006
Depth8-1/2 in
Description:2760GPH @ 5' AUTOMATIC .
Diameter9-1/2"
Dimensions9-1/2 in L x 8-1/2 in W.
Discharge1 1/2 in FNPT, 1-1/2 in
Discharge ConfigurationVertical
Discharge Dia.1 1/2 in
Discharge GenderFemale
Discharge NPT1-1/2" F
Discharge StandardNPT
Domestic/ImportDomestic
Duty CycleContinuous
FLA9
Flow Pressure5'-46 / 10'-29 / 15'-18.
Flow Rate12.5 gpm
Flow Rate @ 10 Ft. of H.29 gpm
Flow Rate @ 15 Ft. of H.13 gpm
Flow Rate @ 20 Ft. of H.29
Flow Rate @ 5 Ft. of He.46 gpm
Frequency Rating50/60 Hz
Gauge/Conductor18/3
GPM of Water @ 10 Ft. o.29
GPM of Water @ 15 Ft. o.13
GPM of Water @ 5 Ft. of.46
GTIN010121061682 , 01012106.
Height10, 6", 6 in
Horsepower1/3 hp
Housing MaterialEpoxy Coated Cast Iron
HP1/3
Hz50/60 Hz
ImpellerNylon
Impeller MaterialNylon
Impeller Material - Pum.Nylon
Impeller TypeNon-Clogging
International ShippingNo
Is Discontinued By Manu.No
Is Discontinued By Manu.No
ItemSubmersible Sump Pump
Item - Sump PumpsSubmersible Sump Pump
Item Dimensions LxWxH9.5 x 8.5 x 6 inches
Item model number506158
Item model number?:?506158
Item Weight18 Pounds
Lead TimeExpected to ship in 1-2.
Length12, 9-1/2 in
ManufacturerLITTLE GIANT PUMP COMPA.
Manufacturer?:?Little Giant
Manufacturers Warranty .2 yr
MaterialCast Iron, Nylon, Stain.
Max. Dia. Solids1/8"
Max. Diameter Solids1/8 in
Max. Head18.0 ft, 18 ft
Max. Head - Pumps18 ft.
Max. Liquid Temp.140 Degrees F
Max. Temp.140 Degrees F
Maximum Feet of Head18
Maximum Head18 ft
Maximum Pressure7.8 psi
Maximum Temperature125
Mechanical SealCRB/CMC
MFG Part #:506158
MFR506158
Minimum Temperature34
Motor RPM1500
Motor TypeSplit Phase
Mpn506158
National Stock Number4320-01-003-2506
National Stock Number?:?4320-01-003-2506
NEC Cord DesignationSJTW
NPT Discharge1?1/2" FNPT
NSF CertifiedNo
Off Point1 in to 4 in
On Point7 in to 10 in
OriginGlobal
Outlet Size1-1/2 in
Overall Height6 in
Package Quantity1
Phase1 ph
Power SourceCorded-electric
Pressure - Maximum7.8 psi
ProductSump
Product Dimensions9.5 x 8.5 x 6 inches; 1.
Product Dimensions?:?9.5 x 8.5 x 6 inches; 1.
Product TypeSubmersible
Product with faster shi.true
Prop 65WARNING: Cancer and Rep.
Pump Body MaterialCast Iron
Pump HP1/3
Pump MaterialCast Iron
Pump Phase1
Pump TypeSubmersible Pump
Rated Voltage115V AC
RPM1,500 RPM
Series6 Series
Shaft SealNitrile with Carbon and.
Shaft Seal Material - P.Carbon, Ceramic
Shippingundefined (Fixed Shippi.
SKUZO-G3010987, 40658763
Standard Pack:Order QTY must be in mu.
Start14.3
SubCategoryPumps
Supplier:LITTLE GIANT PUMP COMPA.
Switch ActuationDiaphragm
Switch Electrical Conne.Integral
Switch TypeDiaphragm
Switch Type - PumpsDiaphragm
Temperature Range34 to 125 Deg F
Thermal ProtectionYes
Turn On/Turn Off LevelsTurn-on 10 in/Turn-off .
TypeAutomatic
UL ListedNo
UPC010121069091, 010121061.
UPC:10121061583
VA Cat 60 Hz115
Voltage115V
Voltage - Pumps120VAC
Voltage Rating115 VAC
Volts115V
Wattage720 W
Watts720 W
Weight14.0 lb, 18 lb
Width12, 8-1/5 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Home Depot203070720115.011In StockLittle Giant115.01 @ 1
thumbzoomPexUniverse506158129.951In StockLittle Giant129.95 @ 1
thumbzoomCanarsee506158129.951In StockLITTLE GIANT129.95 @ 1
AmazonTPB000UEV8WA139.51In Stock2Little Giant139.5 @ 1
Life and Home40658763165.061In StockLittle Giant165.06 @ 1
thumbzoomPlumbersStock49829165.91In StockLittle Giant18.0165.9 @ 1
WebstaurantStore32A506158166.491In StockLittle Giant Pumps166.49 @ 1
Gempler's192176179.951In StockLittle Giant179.95 @ 1
Ace Hardware4098208189.991In StockLittle Giant189.99 @ 1
thumbzoomhatchethardware.com40658763189.991In StockLittle Giant14.0189.99 @ 1
thumbzoomsuppliesdepot.com506158194.951In StockLITTLE GIANT194.95 @ 1
thumbzoomsimsupply.comZO-G3010987196.541797Little Giant Pump196.54 @ 1
thumbzoommidwestapplianceparts.com506158-LG-P197.851In StockLittle Giant197.85 @ 1
thumbzoomNational Supply Network09278722201.111In StockLittle Giant Pumps201.11 @ 1
thumbzoomsumppumpsdirect.com506158207.01In StockLittle Giant207.0 @ 1
thumbzoomacwholesalers.com506158207.01In StockLITTLE GIANT18.0207.0 @ 1
thumbzoomVoomi Supply506158208.081In StockLittle Giant208.08 @ 1
thumbzoomGlobal IndustrialWBB215828209.951In StockLittle Giant209.95 @ 1
thumbzoomhomeessentialsdirect.com506158210.91In StockLittle Giant18.0210.9 @ 1
thumbzoomMegadepot506158218.31In StockLittle Giant218.3 @ 1
thumbzoomusmegastore.com506158218.31In StockLittle Giant218.3 @ 1
thumbzoomheavydutydepot.com506158219.91In StockLittle Giant219.9 @ 1
kscdirect.comLG 506158221.691In StockLITTLE GIANT PUMP COMPANY221.69 @ 1
grainger.caLGP506158232.990984061In StockLITTLE GIANT17.415232.99098406 @ 1
thumbzoompumpproducts.com506158242.471In StockLittle Giant242.47 @ 1
ptacsolutions.com506158243.911Little Giant243.9 @ 1
AF Supply506158276.51In StockLittle Giant276.5 @ 1
thumbzoomZoroG808620223286.991In Stock7Little Giant286.99 @ 1
thumbzoomRadwell506158290.01In StockLITTLE GIANT290.0 @ 1
ferguson.com66304296.251In StockLittle Giant18.0296.25 @ 1
thumbzoomfreertool.comFTS-NX506CIA323.81In StockLittle Giant323.8 @ 1
thumbzoombscsource.com506158334.891In StockLittle Giant? Pumps334.89 @ 1
motionindustries.com03190804463.541In StockLittle Giant Pump463.54 @ 1
