- mpnCMIP1142W-28
- brandname: LTS
- manufacturername: LTS

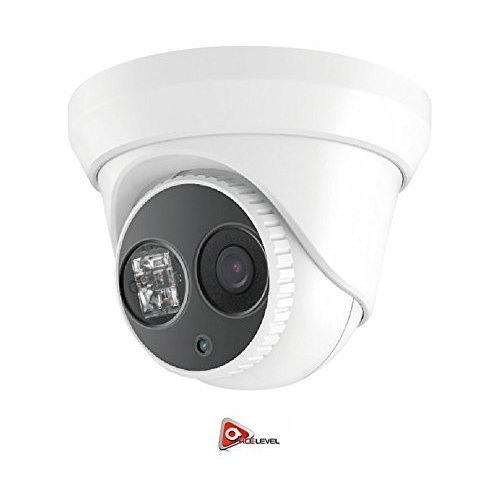

LTS Platinum IP Fixed Lens Turret Matrix IR Camera 4.1MP - 2.8mm
- Brand: TSL
- PartNumber: CMIP1142W-28
- Model: CMIP1142W-28
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: LTS
- Label: LTS
Attributes
| Key | Value |
|---|
| Alarm Trigger | Motion detection, Tampe. |
| Angle Adjustment | Pan:0? ~ 360?, Tilt: 0?. |
| BLC | Support, zone configura. |
| Communication Interface | 1 RJ45 10M/100M Etherne. |
| Day & Night | IR cut filter with auto. |
| Dimensions | ?5.0' x 3.8' (?127x97.5. |
| DNR | 3D DNR |
| Dual Streams | Support |
| General | One-key reset, Flash-pr. |
| H.264 Type | Main Profile |
| Image Sensor | 1/3" Progressive Scan C. |
| Image Setting | Rotate Mode, Saturation. |
| IR Range | Up to 100ft (30 meters) |
| Lens | 2.8mm, Angle of View: 1. |
| Lens Mount | M12 |
| Max. Resolution | 2688x1520 |
| Min. Illumination | 0.01Lux at (F1.2, AGC O. |
| Network Storage | NAS (Support NFS,SMB/CI. |
| Power Consumption | Max. 5.5W (Max. 7.5W wi. |
| Power Supply | DC12V ? 10%, PoE (802.3. |
| Protocols | TCP/IP, UDP, ICMP, HTTP. |
| Reset | Yes |
| ROI Codec | Support |
| Shutter Speed | 1/3 s to 1/10,000 s |
| Standard | ONVIF (PROFILE S, PROFI. |
| Video Bit Rate | 32 Kbps ~ 8 Mbps |
| Video Compression | H.264 / MJPEG/H.264 Zip+ |
| Weather Proof Ratings | IP66 |
| Weight | 1.5 lbs (670g) |
| Wide Dynamic Range | 120dB |
