Lumenite LSDPG-4220-C1.5-30

mpnLSDPG-4220-C1.5-30
brandname: LUMENITE CONTROL TECHNOLOGY, INC.
manufacturername: LUMENITE CONTROL TECHNOLOGY, INC.

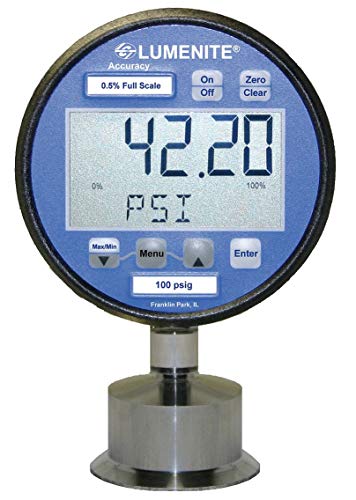

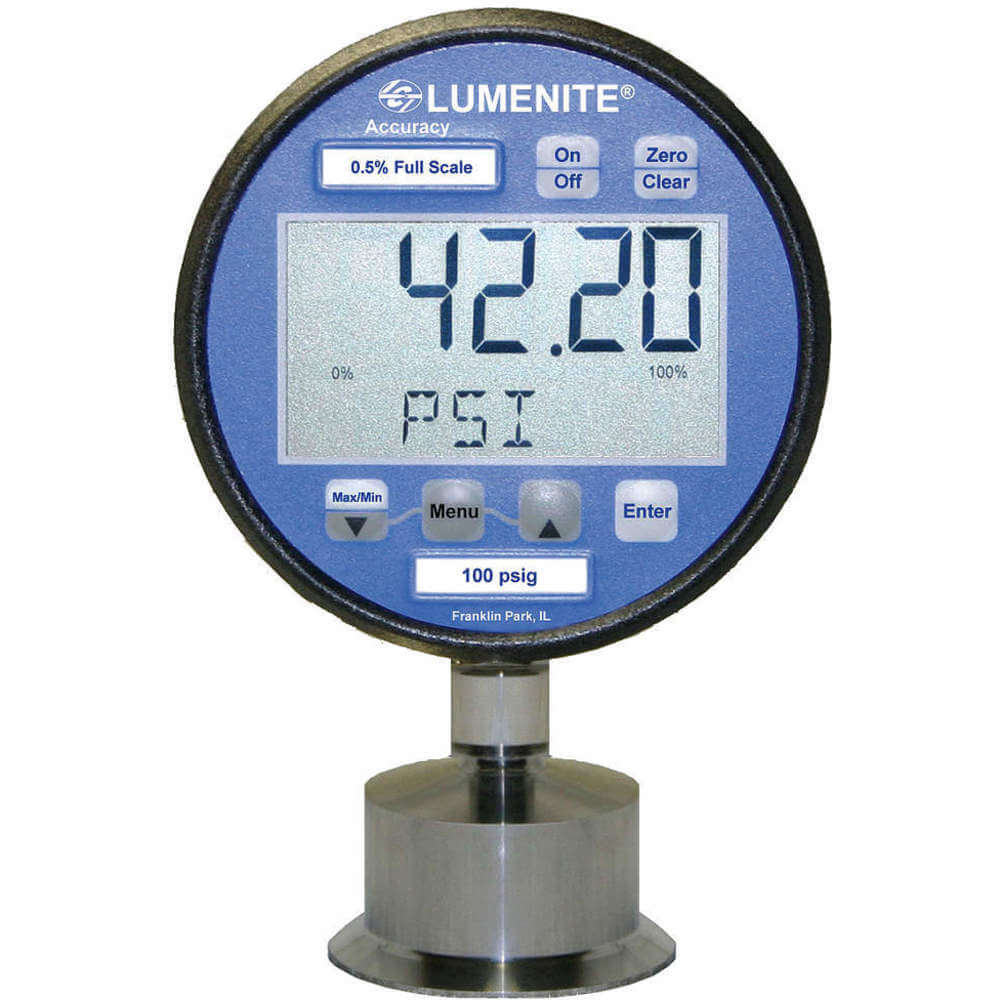

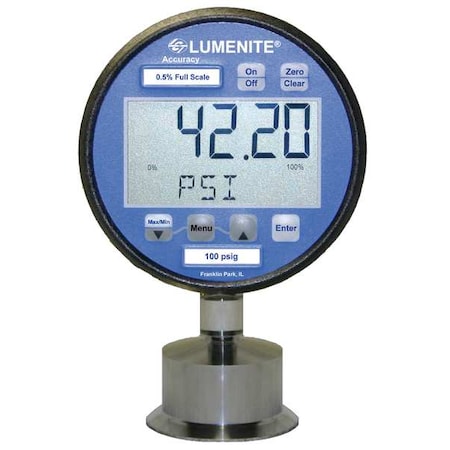

0 to 30 psi Digital Sanitary Pressure Gauge with Transmitter, 3" Dial, 1-1/2" Triclamp Connection, P

0 to 30 psi Digital Sanitary Pressure Gauge with Transmitter, 3" Dial, 1-1/2" Triclamp Connection, P

zoom

Brand: Lumenite
PartNumber: LSDPG-4220-C1.5-30
PackageQuantity: 1
Manufacturer: LUMENITE CONTROL TECHNOLOGY, INC.
Label: LUMENITE CONTROL TECHNOLOGY, INC.

Attributes

Key	Value
(Hidden) Combined Press.	0 psi to 30 psi
Agency Compliance	3A, TPV, USDA
Basic Gauge Case Materi.	Plastic
Basic Gauge Wetted Parts	Stainless Steel
Calibration Certificate	No
Case Color	Blue
Case Material	Lexan
Country of Origin (subj.	United States
Digital Display Charact.	5 Digit LCD
Digital Gauge Accuracy	+/-0.25% Full Scale
Digital Gauge Display U.	bar, in wc, kg/sq cm, k.
Digital Gauge with Tran.	Digital Sanitary Pressu.
Display	Backlit LCD
Display Units	bar, in wc, kg/sq cm, k.
Explosion/Fire Proof	No
Gauge Connection Locati.	Bottom
Gauge Connection Size	1 1/2 in
Gauge Connection Type	Triclamp
Gauge Nominal Dial Size	3 in
Gauge Operating Temp. R.	14 Degrees to 140 Degr.
Gauge Primary Range Uni.	psi
Gauge Primary Range Val.	0 to 30
Gauge Process Connectio.	Bottom
Gauge Process Connectio.	1 1/2 in
Gauge Process Connectio.	Triclamp
Gauge Transmitter Requi.	24V DC
Includes	Instructions
Item	Digital Sanitary Pressu.
Loop Resistance	Dependent on Loop Suppl.
Manufacturers Warranty .	1 yr
Maximum Operating Tempe.	140 Degrees F
Maximum Pressure	30 psi
Minimum Operating Tempe.	14 Degrees F
Minimum Pressure	0 psi
NIST Traceable Certific.	No
Nominal Dial Size	3 in
Number of Display Digits	5
Number of Wires	2
Output	4 to 20mA
Power Source	24 to 36V DC with Optio.
Powered By	24 V DC or Battery Back.
Pressure Gauge Type	Sanitary Pressure Gauge.
Pressure Range Type	Pressure
Range	0 to 30 psi
Resolution	Dependent on Display Un.
Series	LSDPG
Socket Material	Stainless Steel
Type of Pressure	Gauge
Wetted Parts Materials	Stainless Steel

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Grainger	6JJC9	975.0	1	In Stock	45	LUMENITE CONTROL TECHNOLOGY, INC.		975.0 @ 1
	Zoro	G0124063	1094.0	1	In Stock	26	Lumenite Control Technology	2.0	1094.0 @ 1
	Raptor Supplies	AE9GAL	1528.266636	1	In Stock		LUMENITE CONTROL TECHNOLOGY INC.		1528.266636 @ 1
