Lumex SSL-LX20465GD

B073QYZ6VD

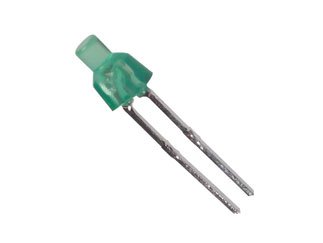

LUMEX SSL-LX20465GD Green ? 2 mm 70? 10 mcd Tinted 2.2 V Radial Round Flat Top LED - T-2mm - 1000 item(s)

LUMEX SSL-LX20465GD Green ? 2 mm 70? 10 mcd Tinted 2.2 V Radial Round Flat Top LED - T-2mm - 1000 item(s)zoom

Attributes

Key Value
Alternate Part No.696-SSL-LX20465GD
Base Product NumberSSL-LX20465
BrandLUMEX
CategoryOptoelectronics
ColorGreen
ConfigurationStandard
Current - Test20mA
DescriptionLED GREEN DIFF T-2MM TA.
Detailed DescriptionGreen LED Indication - .
device functionLED
Digi-Key Part Number67-1127-ND
Features-
Forward Current25 mA
Frontflat
Height (Max)5.00mm
Illumination ColourGreen
item per pack1
LED colourGreen
LED current20mA
LED diameter2mm
LED lensdiffused,
LED Size2 mm
Lens ColorGreen
Lens Colour/StyleTinted, Diffused
Lens ShapeRound
Lens Size2.00mm Dia
Lens StyleRound with Flat Top
Lens TransparencyDiffused
Luminosity10mcd
Luminous Intensity10 mcd
ManufacturerLUMEX, Lumex Opto/Compo.
Manufacturer Part No.SSL-LX20465GD
Manufacturer Product Nu.SSL-LX20465GD
Manufacturer Standard L.14 Weeks
MfrLumex Opto/Components I.
Millicandela Rating10mcd
MountingTHT
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of terminals2
Operating voltage2.2...2.6V
PackageBulk
packageBulk
Package / CaseRadial
PackagingBulk
Part StatusActive
Product CategoryStandard LEDs - Through.
Product StatusActive
Series-
Size / Dimension-
Supplier Device PackageT-2mm Taper Body
Terminal pitch2.54mm
Type of diodeLED
Viewing angle70?
Viewing Angle70 deg, 70?
Voltage - Forward (Vf) .2.2V
Wavelength565nm
Wavelength - Dominant-
Wavelength - Peak565nm
Wavelength/Colour Tempe.565 nm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTedss20280244790.071435LUMEX0.07 @ 143
thumbzoomNewark09J95040.1100005LUMEX0.1 @ 10000
TMESSL-LX20465GD0.39925LUMEX0.199 @ 10
HotendaH28834070.5515Lumex, Inc.0.55 @ 5
thumbzoomDigi-Key2709250.564115602Lumex Opto/Components Inc.0.564 @ 5
swatee.comSSL-LX20465GD0.7117997Lumex0.7 @ 5
